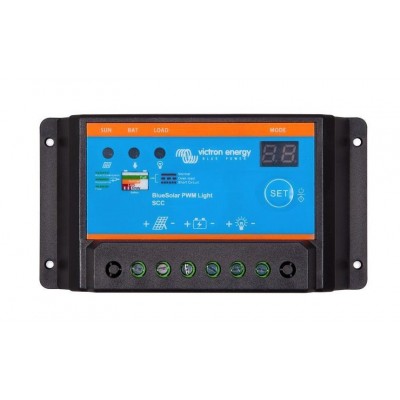

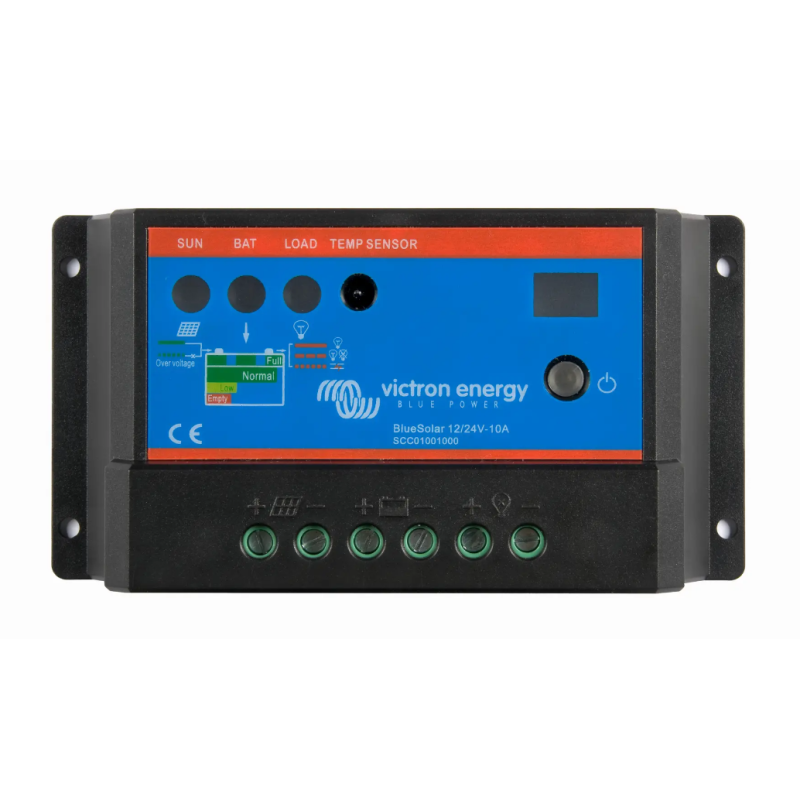

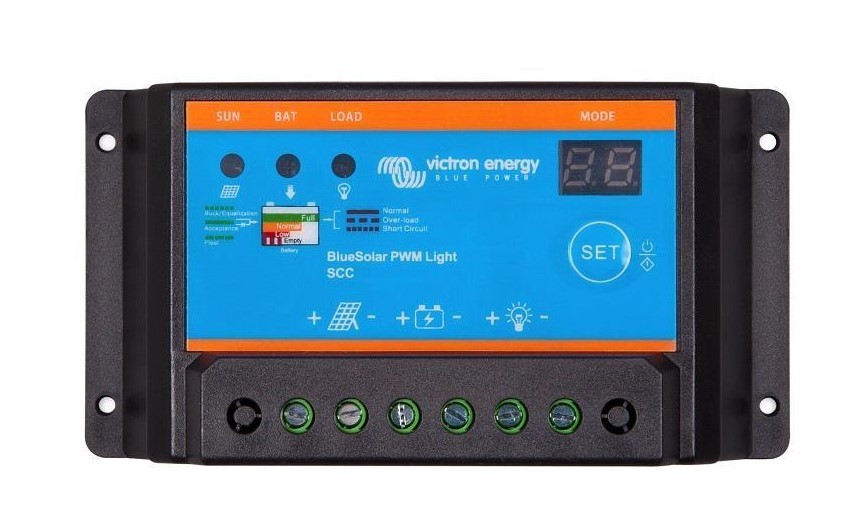

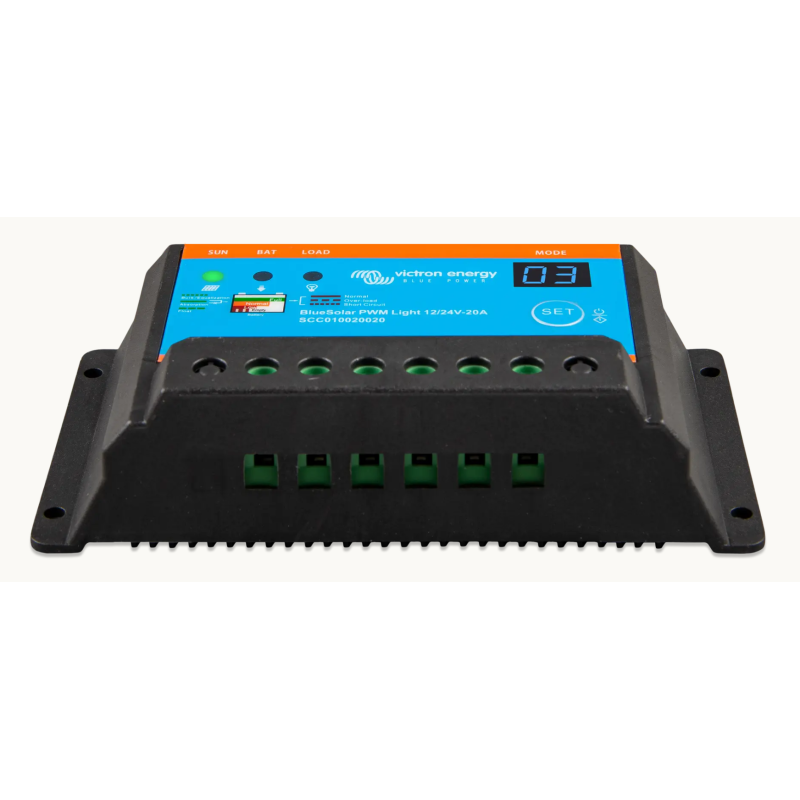

Victron BlueSolar PWM-Light 12/24V Charge Controller (5A–30A)
€19.00
Reliable 12/24V PWM solar charge controller with automatic voltage detection, short-circuit protection and lighting control functions.
Charge Controller
The Victron BlueSolar PWM-Light 12/24V series is a durable and highly reliable solar charge controller designed for boats, RVs and off-grid systems.
It supports automatic 12V/24V system voltage detection and is available in 5A, 10A, 20A and 30A versions, making it suitable for a wide range of solar configurations.
The controller offers full electronic protection including reverse polarity, short-circuit protection, overload protection and over-temperature shutdown.
Its multi-stage charging algorithm (bulk, absorption, float) maximizes battery lifespan and ensures efficient performance.
The integrated dual-digit LED display provides clear system status information, while the built-in lighting control (day/night mode + timer options) makes it ideal for outdoor and marine lighting systems.
Key features:
• Automatic 12V/24V detection
• 5A / 10A / 20A / 30A models available
• Multi-stage charging (bulk / absorption / float)
• Reverse polarity, short-circuit and overload protection
• Low-voltage disconnect (LVD)
• Lighting control function (day/night + timer)
• LED status display
• Compact size (70 × 133 × 34 mm)
• IP20 protection rating
A perfect solution for small to medium solar systems, boats, RVs, cabins and all off-grid installations requiring stable battery charging.
| Model | Rated Charge Current | Battery Voltage | Automatic Load Disconnect | Max Solar Voltage | Self-consumption | Load Output | Protection | Overload Protection | Operating Temp. | Humidity | Dimensions | Weight | IP / Enclosure |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| BlueSolar PWM-Light 12/24-5A | 5A | 12/24V auto-select | Yes | 28V / 55V* | < 10 mA | Manual control + low-voltage disconnect | Reverse polarity (fuse) | Shutdown after 60s > 130% load | -20°C to +50°C | Max 95% | 70 × 133 × 34 mm | 0.2 kg | IP20 |
| BlueSolar PWM-Light 12/24-10A | 10A | 12/24V auto-select | Yes | 28V / 55V* | < 10 mA | Manual control + low-voltage disconnect | Reverse polarity (fuse) | Shutdown after 60s > 160% load | -20°C to +50°C | Max 95% | 70 × 133 × 34 mm | 0.2 kg | IP20 |
| BlueSolar PWM-Light 12/24-20A | 20A | 12/24V auto-select | Yes | 28V / 55V* | < 10 mA | Manual control + low-voltage disconnect | Reverse polarity (fuse) | Short circuit: immediate shut down | -20°C to +50°C | Max 95% | 70 × 133 × 34 mm | 0.2 kg | IP20 |
| BlueSolar PWM-Light 12/24-30A | 30A | 12/24V auto-select | Yes | 28V / 55V* | < 10 mA | Manual control + low-voltage disconnect | Reverse polarity / short circuit / over-temperature | Shutdown after overload | -20°C to +50°C | Max 95% | 70 × 133 × 34 mm | 0.2 kg | IP20 |
*For 12V use, 36-cell solar panels. For 24V use, 72-cell solar panels.
