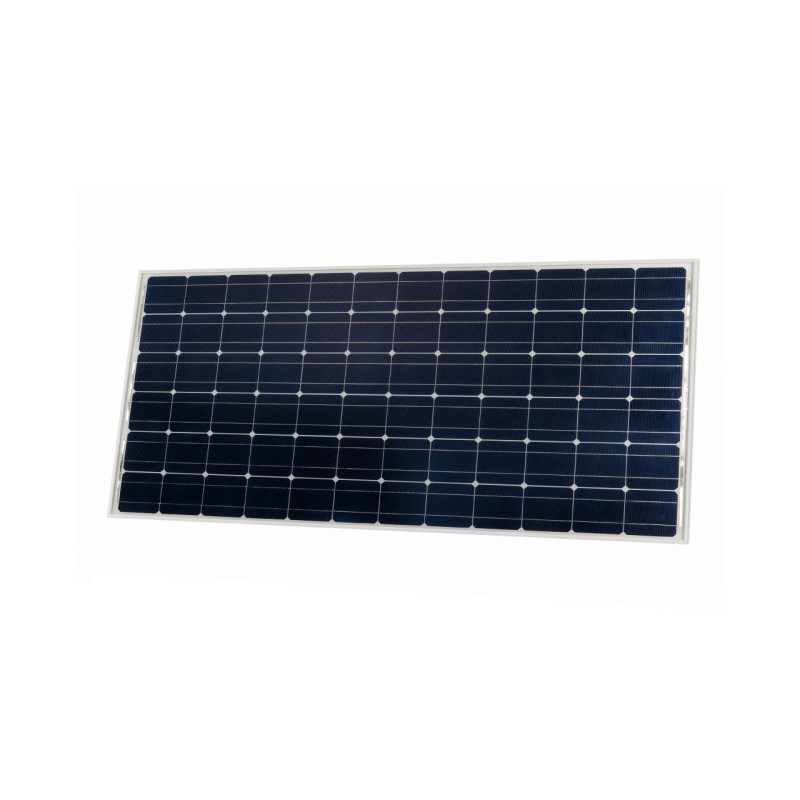

VICTRON Solar Panel

Low voltage and temperature coefficient improves operation at high temperatures. Exceptional low light performance and high light sensitivity across the entire solar spectrum. Sealed, waterproof, multi-purpose junction box provides a high level of safety. High-performance bypass diodes reduce power loss caused by cold. Advanced EVA (ethylene vinyl acetate) encapsulation system with three-layer backsheet meets the most stringent safety requirements for high voltage operation. Robust anodized aluminum frame allows easy module mounting on a variety of standard mounting systems. Premium tempered glass transmission provides increased rigidity and impact resistance. Pre-wired quick connection system with PV-ST01 connectors.

MODEL 90W MONO, 780X668X30mm

Dimensions: 780x668x30mm

Weight: 6.1kg

Nominal power: 90W

Maximum voltage: 19.6V

Maximum current: 4.59A

Open circuit voltage: 24.06V

Short circuit current: 5.03A

Number of cells: 36

Monocrystalline

 MODEL 115W MONO, 1030x668x30mm

Dimensions: 1030x668x30mm

Weight: 8kg

Nominal power: 115W

Maximum voltage: 19V

Maximum current: 6.04A

Open circuit voltage: 23.32V

Short circuit current: 6.61A

Number of cells: 36

Monocrystalline 12V

MODEL 55W MONO, 545x668x30mm

Dimensions: 545x668x25mm

Weight: 4kg

Nominal power: 55W

Maximum voltage: 18.8V

Maximum current: 2.94A

Open circuit voltage: 22.9V

Short circuit current: 3.22

A Number of cells: 36

Monocrystalline 12V

MODEL 130W MONO, 1200x668x30mm

Dimensions: 1200X668X30mm

Weight: 9.1kg

Nominal power: 130W

Maximum voltage: 18.64V

Maximum current: 6.98A

Open circuit voltage: 22.83V

Short circuit current: 7.35A

Number of cells: 36 Monocrystalline 12V
