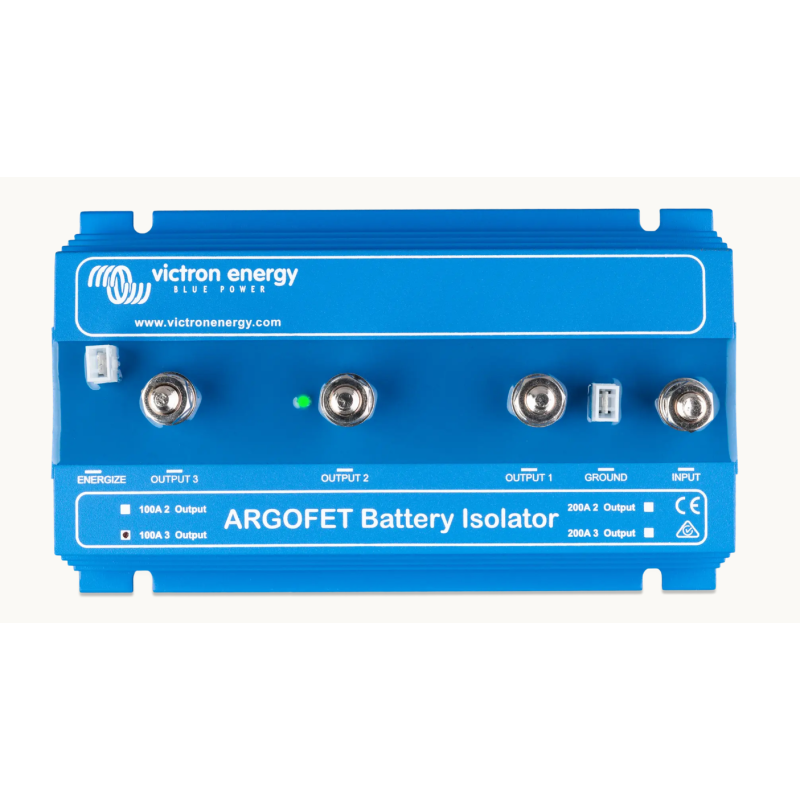

Victron Argofet 100-3 Battery Isolator (FET), 3 batteries / 100A, ARG100301020 (R

Victron Argofet 100-3 Battery Isolator (FET), 3 Batteries / 100A (ARG100301020R)

Victron Argofet 100-3 is a high-efficiency FET battery isolator that allows one alternator to safely charge up to three separate battery banks without voltage loss and without cross-discharge between the batteries. Ideal for marine, RV, service vehicles and off-grid energy systems.

Product Description

Unlike traditional diode battery isolators, Argofet isolators use MOSFET technology which provides extremely low voltage drop (typically 0.02 V to 0.1 V). This ensures optimal charging efficiency and better utilization of alternator output.

The internal compensation circuitry ensures correct charging voltage at all times without the need for additional regulators. FET isolation guarantees that no battery bank can discharge into another.

Key Features

• Simultaneous charging of 3 independent battery banks
• Maximum charge current: 100 A
• Maximum alternator current: 100 A
• Very low voltage drop due to FET technology
• Supports 12 V and 24 V systems
• No cross-discharge between battery banks
• Automatic and maintenance-free operation
• Perfect for marine, RV and off-grid applications

Technical Specifications – Argofet 100-3

Documentation

Victron Argofet – Certificates & Technical Documentation
Victron Argofet – Brochures & Downloads
