HYDRAULIC TUNNEL THRUSTERS CT

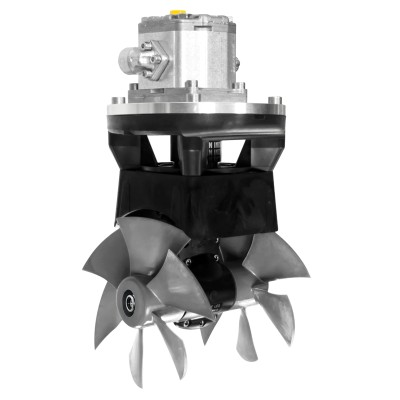

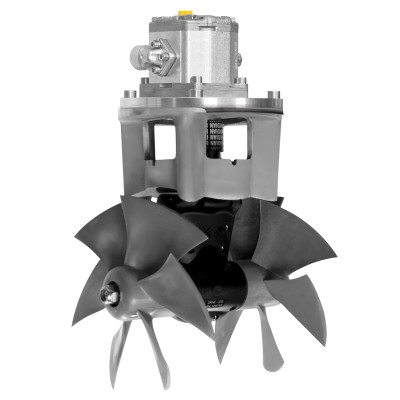

The Hydraulic Tunnel Thruster CT HYD 300 is a high-power hydraulic bow thruster engineered for large and professional vessels requiring maximum thrust and reliability. Delivering up to 300 kg of thrust through a twin propeller system, it ensures exceptional maneuverability in demanding marine environments. Featuring a robust bronze drive leg and hydraulic operation, the CT HYD 300 is ideal for continuous-duty and heavy-duty marine applications.
The Hydraulic Tunnel Thruster CT HYD 300 is a high-performance hydraulic bow thruster designed for large motor boats and professional vessels requiring powerful and reliable maneuvering. Delivering up to 300 kg of thrust through a twin propeller system, it is built for demanding marine applications.
Equipped with a bronze drive leg, the CT HYD 300 offers exceptional mechanical strength and long service life, even under intensive operating conditions. The hydraulic drive allows continuous-duty operation without overheating, making it an ideal solution for commercial and heavy-duty recreational vessels.
- High-power hydraulic tunnel thruster
- Twin propeller configuration
- Bronze drive leg
- Heavy-duty industrial construction
- Designed for continuous operation
- Suitable for large and professional vessels
Performance data is based on installation at an immersion depth of one tunnel diameter and a tunnel length no greater than twice the tunnel diameter, within a ±6% tolerance. Longer tunnels may reduce thrust output and increase power demand.
Documentation:
Download Product Brochure
Download Technical Manual
Technical Specifications
| LALIZAS Code | 317607 |
|---|---|
| Model | CT HYD 300 |
| Thrust | 300 kg / 529 lbs |
| Propellers | 2 |
| Power | 19.5 kW |
| Weight | 24 kg |
| Tunnel Diameter | 300 mm |
| Drive Leg Material | Bronze |
