ERCOLE VERTICALE - Vertical Windlass Windlasses & Accessories

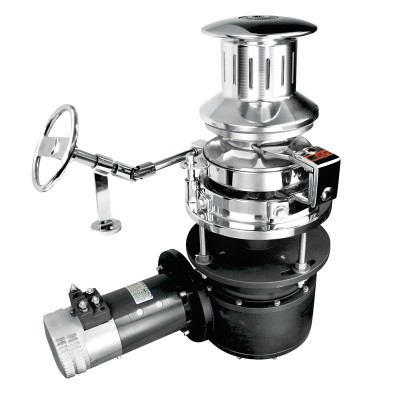

ERCOLE VERTICALE - Vertical Windlass 24v 3,5kW 14mm

SKU 600080 Category Lofrans Ercole Verticale
€16,493.70

The Lofrans ERCOLE vertical windlass is designed for large yachts and vessels requiring exceptional power, durability and precise anchoring control. Featuring mirror-polished AISI 316 stainless steel construction and a high-torque electric motor, ERCOLE ensures reliable performance in the most demanding marine environments.

Motor size
Type
Voltage
Gypsy
Add to Cart

The Lofrans ERCOLE vertical windlass is engineered for professional and heavy-duty marine applications. Its compact under-deck dimensions allow efficient installation, while the mirror-polished AISI 316 stainless steel construction provides superior corrosion resistance. Independent gypsy and drum operation enables precise chain handling, and manual chain release with manual override ensures operational safety in case of power failure.

Main Features

  • Compact under-deck dimensions
  • Mirror-polished AISI 316 stainless steel construction
  • High-torque latest generation electric motor
  • Drum brake for precise chain control
  • High-grip gypsy with independent rotation from the drum
  • Independent gypsy and drum operation
  • Manual chain release
  • Manual override in case of electrical failure
  • Internal ratchet to prevent chain jams
  • Chain counter support integrated via sensor and magnet

Technical Specifications

Product Code 600080 600081
Rotation CW CCW
Motor Power 3500 W
Power Supply 24 V
Gypsy for Chain 14 mm
Line Speed at W.L. 8 m/min
Maximum Line Speed 15 m/min
Maximum Pull 4500 kg
Working Load 1075 kg
Current at Working Load 120 A
Net Weight 180 kg
Configuration With Drum (G+D)

Standard Equipment

  • Dual direction solenoid pack (included – 24 V version only)
  • Handle
  • Gypsy for chain
  • Instruction manual

Documentation
