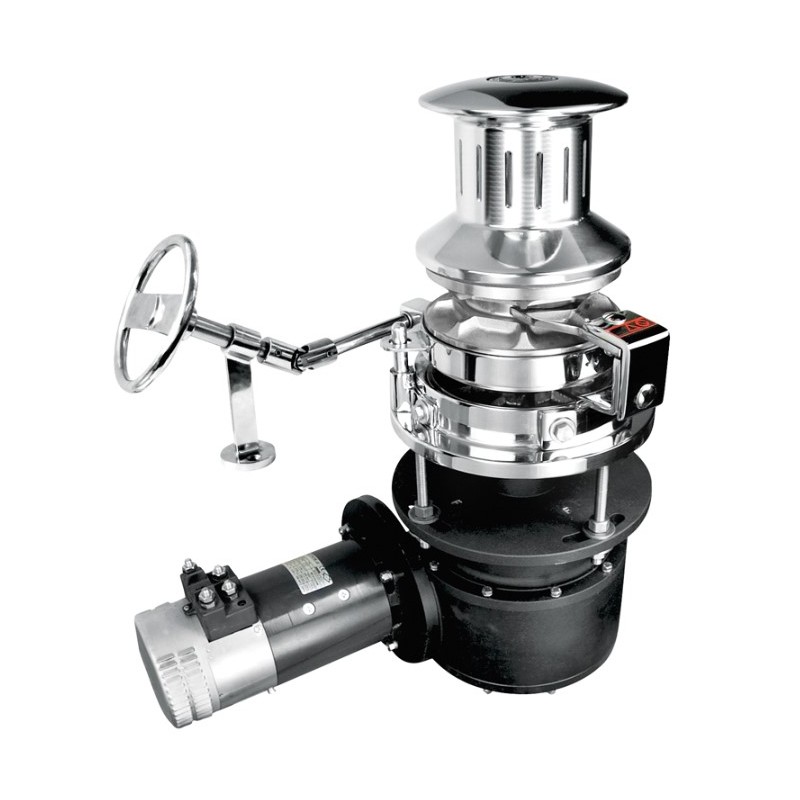

WINDLASS V. ERC. S/S G+D CW 4000W/400V 16mm Lofrans Ercole Verticale

WINDLASS V. ERC. S/S G+D CW 4000W/400V 16mm

SKU 600408 Category Lofrans Ercole Verticale
€18,574.45

The Lofrans ERCOLE vertical windlass is engineered for large yachts and professional vessels requiring exceptional power, reliability and precise anchoring control. Mirror-polished AISI 316 stainless steel construction and heavy-duty components ensure outstanding performance in the most demanding marine environments.

Motor size
Power Supply (V)
Type
Gypsy
Add to Cart

The Lofrans ERCOLE vertical windlass is designed for professional and heavy-duty marine applications. Compact under-deck dimensions allow efficient installation, while the mirror-polished AISI 316 stainless steel construction provides excellent corrosion resistance. Independent gypsy and drum operation enables precise chain handling, and manual chain release with manual override ensures operational safety in case of power failure.

Main Features

  • Compact under-deck dimensions
  • Mirror-polished AISI 316 stainless steel construction
  • High-torque electric motor
  • Drum brake for precise chain control
  • High-grip gypsy with independent rotation
  • Independent gypsy and drum operation
  • Manual chain release
  • Manual override in case of electrical failure
  • Internal ratchet to prevent chain jams
  • Chain counter support via sensor and magnet

Technical Specifications

Product Code 600367 600363 600408 600409
Rotation CW CCW CCW CW
Motor Power 4000 W 5500 W
Power Supply 400 V
Gypsy for Chain 16 mm (ISO 4565)
Line Speed at W.L. 12 m/min
Maximum Line Speed 12 m/min
Maximum Pull 5500 kg 6500 kg
Net Weight 180 kg 200 kg
Configuration With Drum (G+D)

Standard Equipment

  • Gypsy for chain
  • Handle
  • Instruction manual
