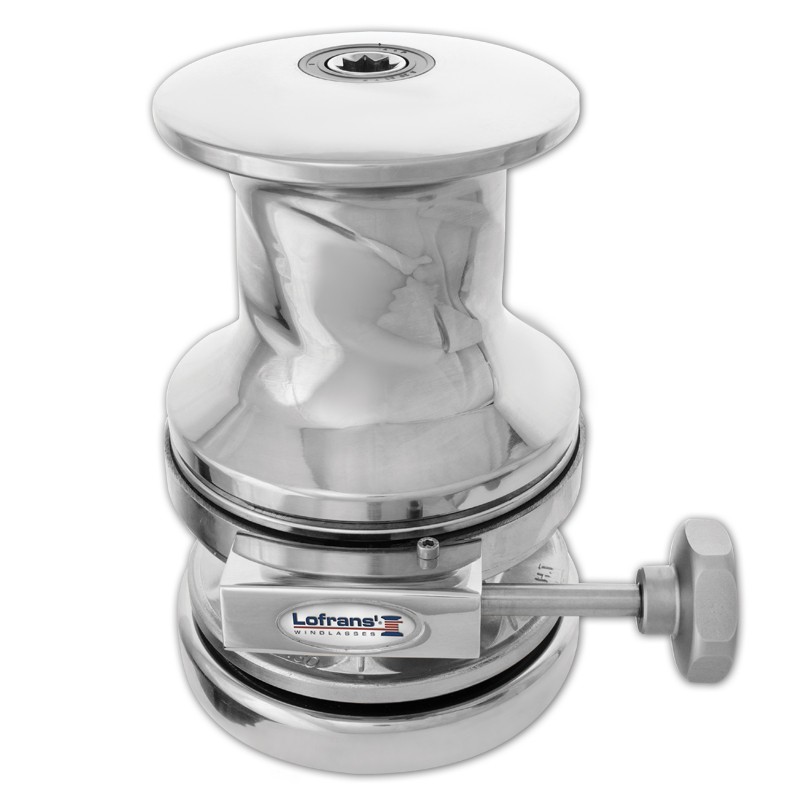

SX3.5 - Vertical Windlass 12-24V, 1700-2300W, Chrome, drum
€2,012.25
The Lofrans SX3.5 vertical anchor windlass is designed for yachts and motor boats that require high power and reliable anchoring performance. Manufactured from AISI 316L stainless steel and featuring a compact round base, the SX3.5 is equipped with electric motors up to 2700 W, ensuring smooth, controlled and long-lasting operation in demanding marine environments. Available in drum or low-profile configurations.
Motor size
Voltage
Gypsy
Lofrans SX3.5 vertical anchor windlass is engineered for vessels that demand high power, durability and reliability during anchoring operations. Designed for medium and large sailing yachts and motor boats, it features a housing made of AISI 316L stainless steel, providing excellent corrosion resistance and long-term performance in marine environments.
The windlass is available with a drum or in a low-profile configuration, offering independent gypsy and drum operation. A watertight stainless steel ball bearing in the base ensures maintenance-free functionality, while the conical clutch guarantees optimal load distribution. The SX3.5 is supplied as standard with a chain counter magnet and a manual chain release system, allowing safe operation even in the event of power failure.
Documentation:
User & Installation Manual
Product Brochure
Technical specifications
| Code | 600084 | 600085 | 600086 | 600087 | 600088 | 600090 |
|---|---|---|---|---|---|---|
| Description | With drum | With drum | With drum | With drum | With drum | With drum |
| Gypsy For Chain | 10 mm, ISO 4565 | 10 mm, ISO 4565 | 12 mm ISO 4565 / 13 mm DIN 766 | 12 mm ISO 4565 / 13 mm DIN 766 | 12 mm ISO 4565 / 13 mm DIN 766 | 14 mm |
| Motor size | 1700 W | 1700 W | 1700 W | 1700 W | 2300 W | 2700 W |
| Net Weight | 50 kg | 50 kg | 50 kg | 50 kg | 60 kg | 60 kg |
| Power Supply | 12 V | 24 V | 12 V | 24 V | 24 V | 24 V |
| Type | With drum | With drum | With drum | With drum | With drum | With drum |
| Amps at Working Load (A) | 185 | 95 | 185 | 95 | 180 | 210 |
| Working load (kg) | 215 | 220 | 215 | 220 | 265 | 320 |
