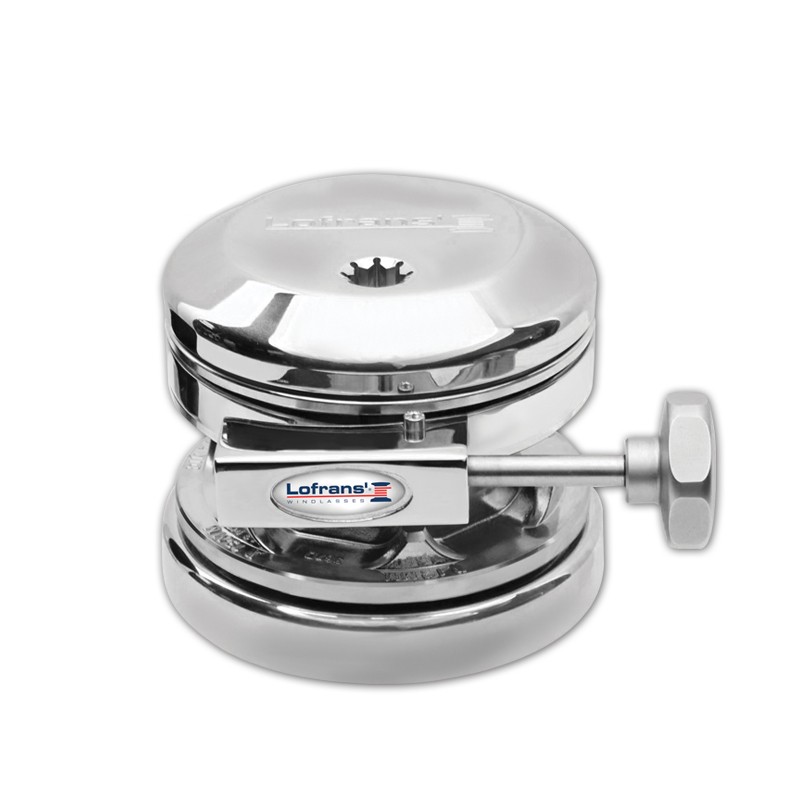

SX3.5 - Vertical Windlass 12-24V, 1700-2300W, Chrome, Low profile SX3.5 Vertical Windlasses 1700-2300W

SX3.5 - Vertical Windlass 12-24V, 1700-2300W, Chrome, Low profile

SKU 635984 Category SX3.5 Vertical Windlasses 1700-2300W
€1,911.35

The Lofrans SX3.5 vertical anchor windlass is designed for sailing yachts and motor boats from 6 to 27 metres that require increased power and reliability during anchoring. Its AISI 316L stainless steel construction, electric motor up to 2300 W and precision mechanics ensure smooth, controlled and long-lasting performance, even in demanding marine conditions.

Motor size
Voltage
Gypsy
Add to Cart

Lofrans SX3.5 vertical anchor windlass is engineered for boats requiring a more powerful and robust anchoring solution. Designed for sailing yachts and motor boats from 6 to 27 metres in length, it features a housing made of AISI 316L stainless steel, providing excellent corrosion resistance and long-term durability.

The SX3.5 is equipped with a powerful electric motor, an anodised aluminium gearbox and a conical clutch that ensures optimal load distribution during operation. A watertight stainless steel ball bearing in the base guarantees smooth, maintenance-free performance. The windlass is supplied as standard with a chain counter magnet and a manual chain release system, allowing safe operation even in the event of power failure.

Documentation:
User Manual
Product Datasheet

Technical specifications

Code 635984 635985 635986
Description Low profile Low profile Low profile
Gypsy For Chain 12 mm ISO 4565 / 13 mm DIN 766 12 mm ISO 4565 / 13 mm DIN 766 12 mm ISO 4565 / 13 mm DIN 766
Motor size 1700 W 1700 W 2300 W
Net Weight 48 kg 48 kg 58 kg
Power Supply 12 V 24 V 24 V
Type Low profile Low profile Low profile
Amps at Working Load (A) 185 95 180
Working load (kg) 215 220 265
