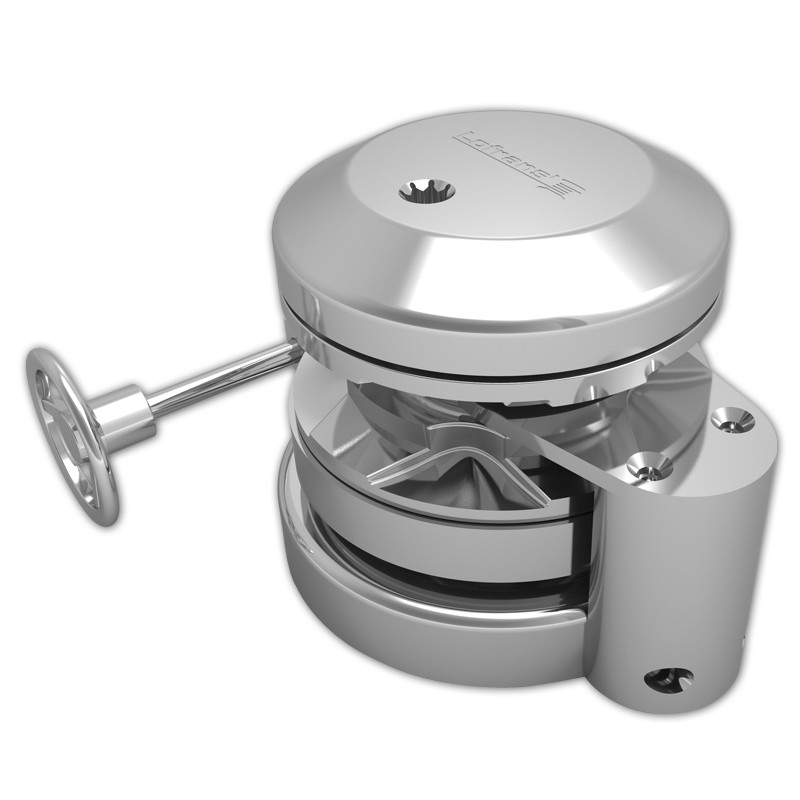

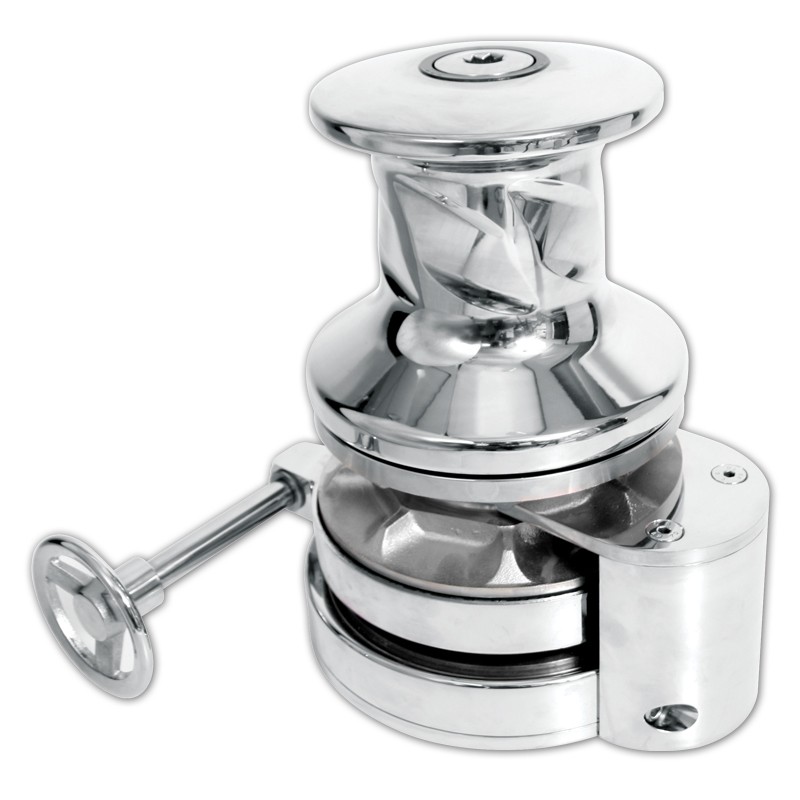

SX5 - Vertical Windlass Inox, 24V, 3000W, drum CW / CCW
€10,187.95
The Lofrans SX5 vertical anchor windlass is designed for vessels requiring maximum strength, reliability and control during anchoring operations. Manufactured from AISI 316L stainless steel, it offers exceptional corrosion resistance and durability. Equipped with a powerful electric motor, independent gypsy and drum operation and manual override, the SX5 is an ideal solution for demanding marine applications.
Motor size
Type
Voltage
Gypsy
Lofrans SX5 vertical anchor windlass is engineered for boats and yachts that require high performance and absolute reliability. The robust construction in AISI 316L stainless steel ensures excellent corrosion resistance, making it suitable for continuous operation in harsh marine environments.
The SX5 is equipped with a heavy-duty electric motor, independent gypsy and drum operation and a pre-installed chain counter magnet. A watertight stainless steel ball bearing in the base guarantees smooth operation with zero maintenance. Manual override ensures safe anchor recovery in the event of power failure, offering maximum safety at sea.
Documentation:
Product brochure
User & Installation Manual
| Code | 600089 | 600091 | 636463 |
|---|---|---|---|
| Description | With drum | With drum | With drum (CCW) |
| Gypsy For Chain | 12 mm ISO 4565 / 13 mm DIN 766 | 14 mm | 14 mm |
| Motor size | 3000 W | 3000 W | 3000 W |
| Net Weight | 100 kg | 100 kg | 100 kg |
| Power Supply | 24 V | 24 V | 24 V |
| Type | With drum | With drum | With drum (CCW) |
| Amps at Working Load (A) | 210 | 210 | 210 |
| Working load (kg) | 760 | 760 | 760 |
