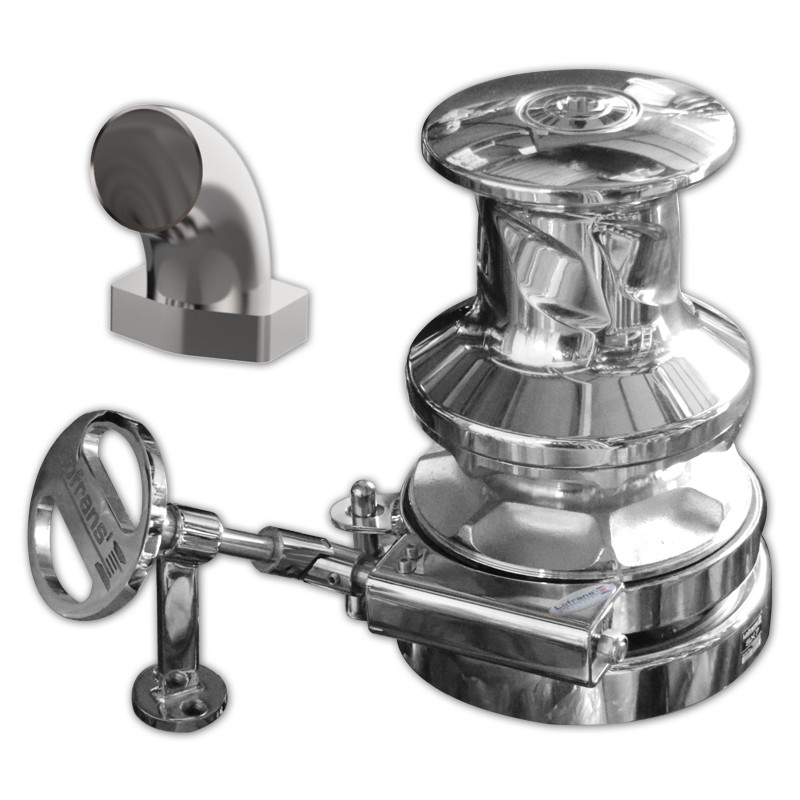

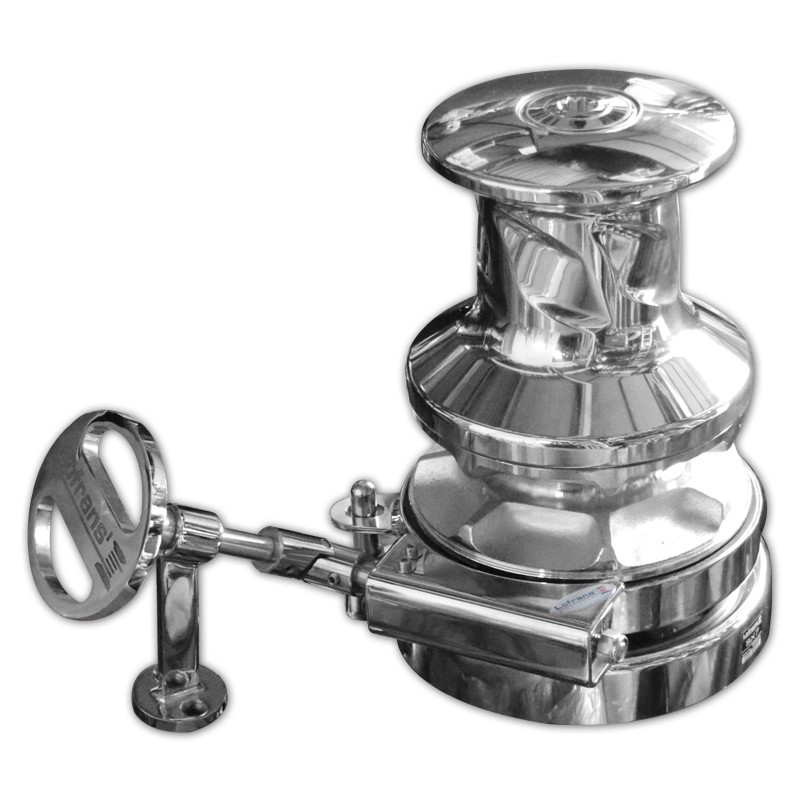

SX7 - Vertical Windlass Inox, 24V, 3500W, drum CW / CCW
€12,944.85
The Lofrans SX7 vertical anchor windlass is designed for mega yachts from 80 to 120 feet, where maximum power, safety and reliability are essential. Manufactured from premium marine-grade materials, it delivers exceptional mechanical strength and resistance to harsh marine environments. Suitable for 12 to 14 mm chains, the SX7 ensures precise and secure anchoring under extreme loads.
Motor size
Type
Voltage
Gypsy
Lofrans SX7 vertical anchor windlass represents the top of the Lofrans range and is specifically engineered for large and luxury yachts. Its construction in premium marine-grade stainless steel ensures outstanding corrosion resistance, durability and long-term reliability in demanding marine conditions.
The windlass features independent gypsy and drum operation, manual chain release and a pre-installed chain counter magnet. An anodised marine gearbox combined with a powerful electric motor allows safe handling of 12 to 14 mm chains. SX7 is designed to deliver maximum safety and performance during anchoring operations on mega yachts.
Documentation:
Technical information
Product brochure
User & Installation Manual
| Code | 636459 | 636464 | 636518 | 636519 |
|---|---|---|---|---|
| Description | With drum (CW) | With drum (CCW) | With drum (CW) | With drum (CCW) |
| Gypsy For Chain | 12 mm ISO 4565 / 13 mm DIN 766 | 12 mm ISO 4565 / 13 mm DIN 766 | 14 mm | 14 mm |
| Motor size | 3500 W | 3500 W | 3500 W | 3500 W |
| Net Weight | 160 kg | 160 kg | 160 kg | 160 kg |
| Power Supply | 24 V | 24 V | 24 V | 24 V |
| Type | With drum | With drum | With drum | With drum |
| Amps at Working Load (A) | 200 | 200 | 200 | 200 |
| Working load (kg) | 825 | 825 | 825 | 825 |
