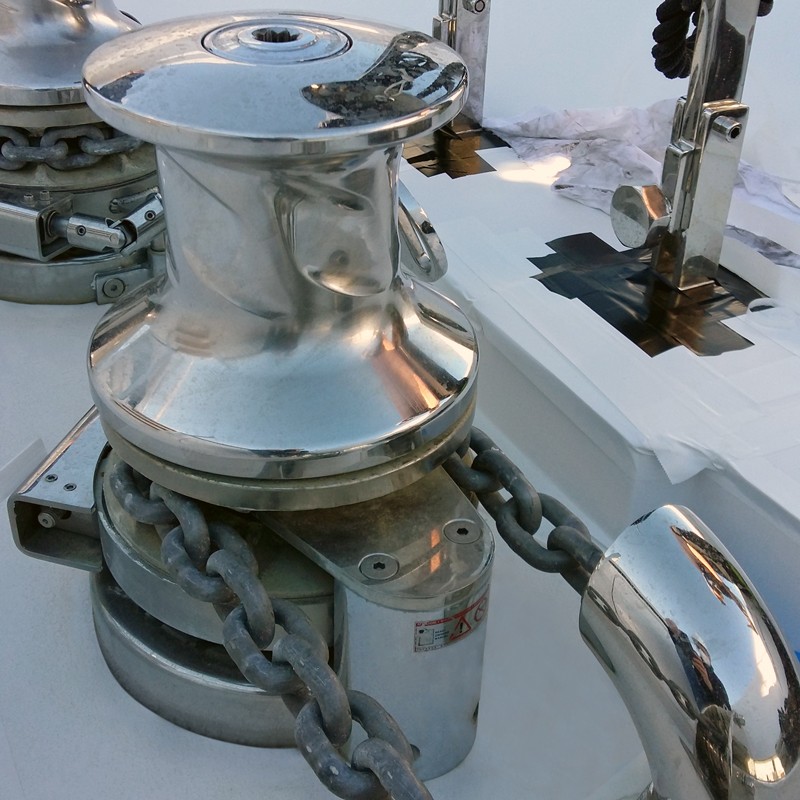

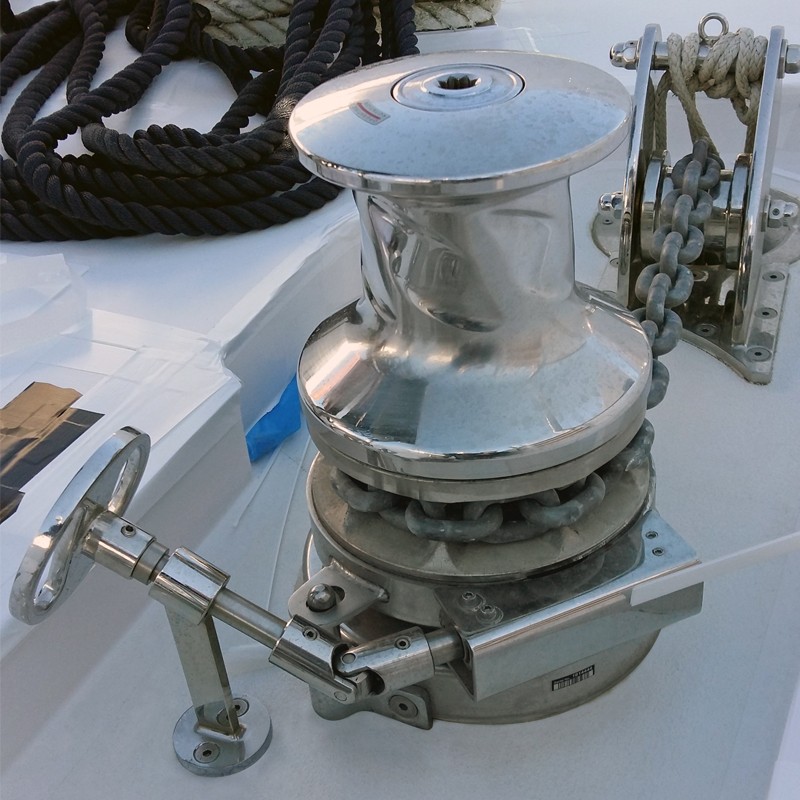

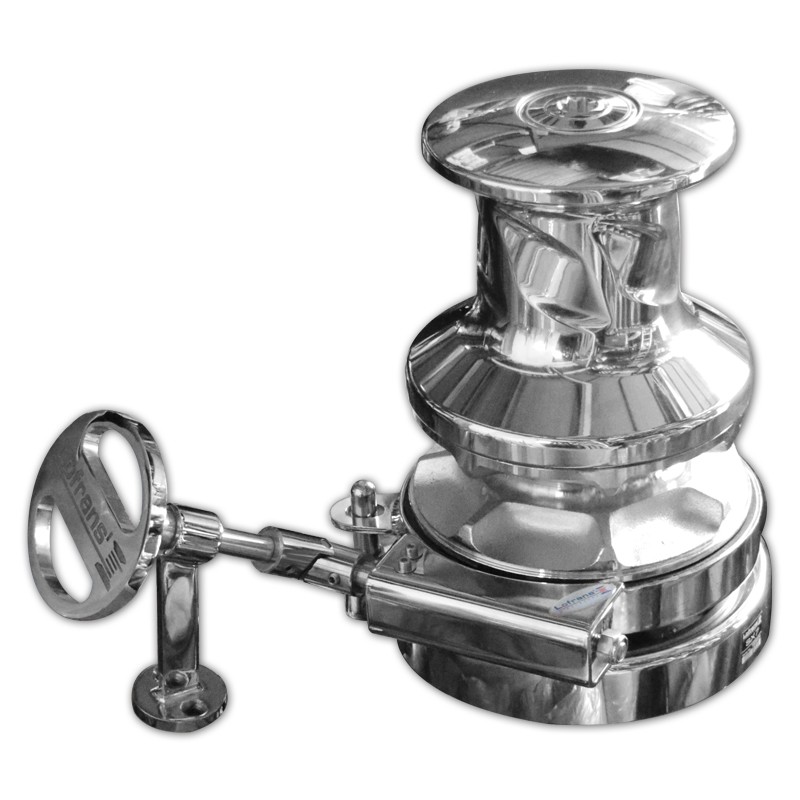

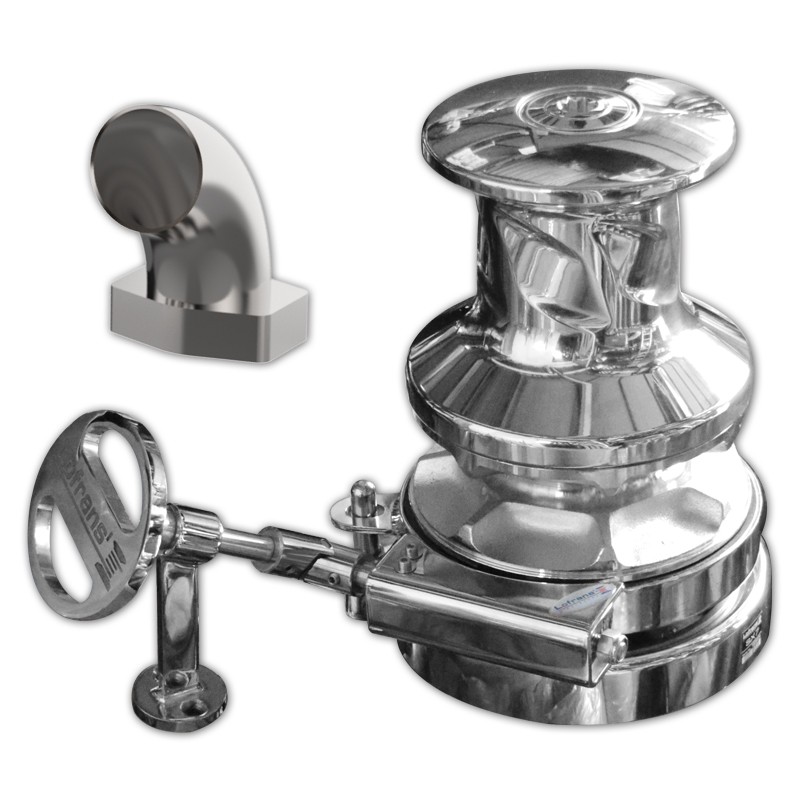

SX7 - Vertical Windlass Inox, 400V, 4000W, drum CW / CCW
€12,869.75
The Lofrans SX7 vertical anchor windlass, featuring 4000 W motors and premium stainless steel construction, is designed for mega yachts and large vessels requiring high power and dependable anchoring capability. Suitable for 12–14 mm chains, the SX7 ensures precise and secure handling under heavy loads and challenging marine conditions.
Motor size
Power Supply (V)
Type
Gypsy
Lofrans SX7 vertical anchor windlass is engineered for mega yachts and large boats that demand high performance, exceptional durability and reliable anchoring. Built with marine-grade stainless steel AISI 316L, the SX7 delivers outstanding corrosion resistance and long-term performance in demanding marine environments.
This model is equipped with powerful 4000 W electric motors and a robust gearbox tailored for heavy-duty use. The independent gypsy and drum operation provide precise and controlled chain handling, while a pre-installed chain counter magnet and manual chain release ensure safe and effective operation. Suitable for 12–14 mm chains, the SX7 is ideal for professional marine applications with large anchor loads.
Documentation:
Technical information
Product brochure
User & Installation Manual
| Code | 636520 | 636521 | 636522 | 636523 |
|---|---|---|---|---|
| Description | With drum (CW) | With drum (CCW) | With drum (CW) | With drum (CCW) |
| Gypsy For Chain | 12 mm ISO 4565 / 13 mm DIN 766 | 12 mm ISO 4565 / 13 mm DIN 766 | 14 mm | 14 mm |
| Motor size | 4000 W | 4000 W | 4000 W | 4000 W |
| Net Weight | 160 kg | 160 kg | 160 kg | 160 kg |
| Power Supply | 400 V | 400 V | 400 V | 400 V |
| Type | With drum | With drum | With drum | With drum |
| Working load (kg) | 850 | 850 | 850 | 850 |
