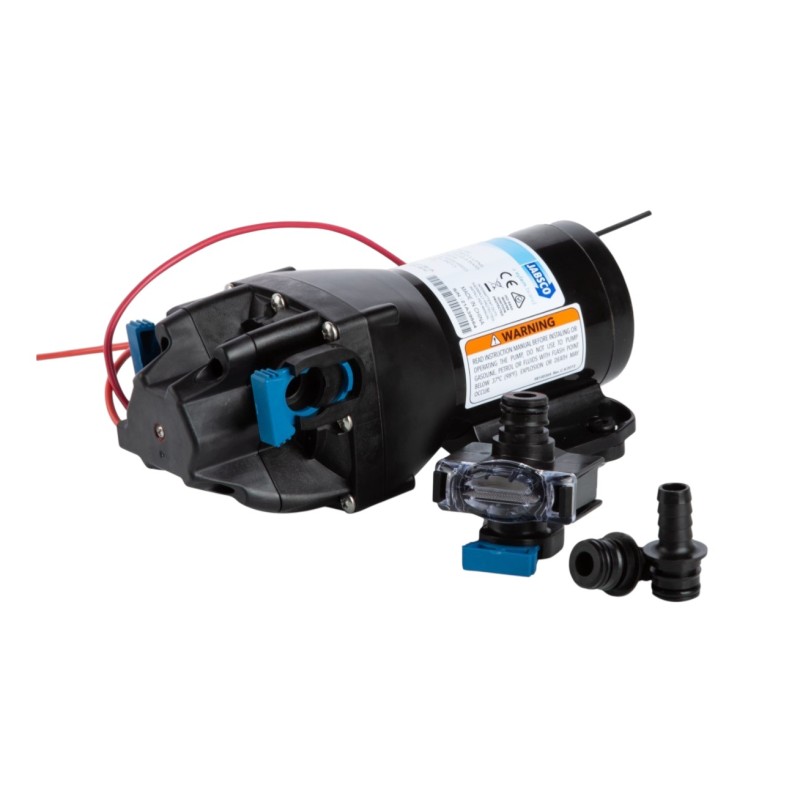

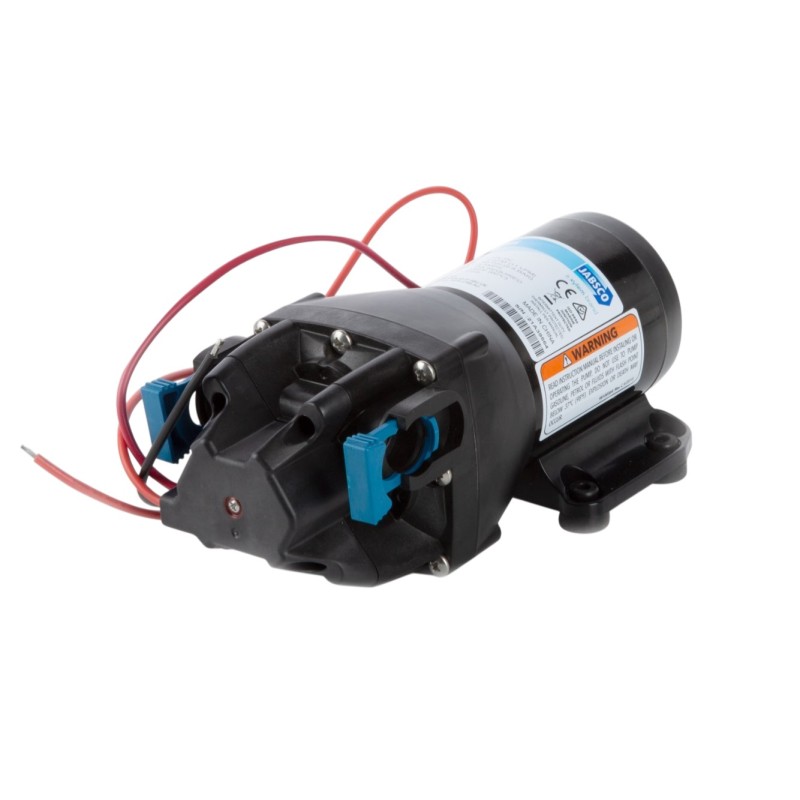

Jabsco self-priming water pump Par Max HD4, 24v, 40PSI, 15L/min Q402J-115S-3A
€265.00
The crossed-out price represents the lowest price at which the product was offered in the last 30 days.
Jabsco Par Max 4 24V is a high-performance self-priming diaphragm pump designed for marine freshwater systems. It delivers stable pressure, reliable operation and long service life.
The Jabsco Par Max 4 is a high-flow self-priming diaphragm pump designed for marine freshwater systems. Its multi-diaphragm design ensures smooth, efficient and quiet operation with consistent pressure output.
The pump can supply four or more outlets simultaneously and provides vertical lift up to 1.5 meters. It is capable of dry running without damage and features automatic thermal overload protection.
Key Features
- Self-priming diaphragm pump
- Flow rate up to 15 l/min (4 GPM)
- Automatic pressure switch
- Dry run capability
- Thermal overload protection
- Marine application
Technical Specifications
| Voltage | 24V |
| Flow Rate | 15 l/min (4 GPM) |
| Pressure Switch | Cut-in: 1.4 bar (20 psi) / Cut-out: 2.8 bar (40 psi) |
| Connections | 13 mm (1/2") |
| Dimensions | 239 × 109 × 97 mm |
| Fuse | 15 A |
| Vertical Lift | Up to 1.5 m |
| Motor Protection | Automatic thermal shutdown |
Heavy-duty versions feature cast aluminum lower housing for extended durability under high-pressure conditions.
