SX1 - Vertical Windlass, Inox, 12V, 500-800W, Low Profile X1 & SX1 Vertical windlasses 500–800 W
Previous
Next
SX1 - Vertical Windlass, Inox, 12V, 500-800W, Low Profile X1 & SX1 Vertical windlasses 500–800 W

SX1 - Vertical Windlass, Inox, 12V, 500-800W, Low Profile

SKU 636279 Category X1 & SX1 Vertical windlasses 500–800 W
€750.80

The crossed-out price represents the lowest price at which the product was offered in the last 30 days.

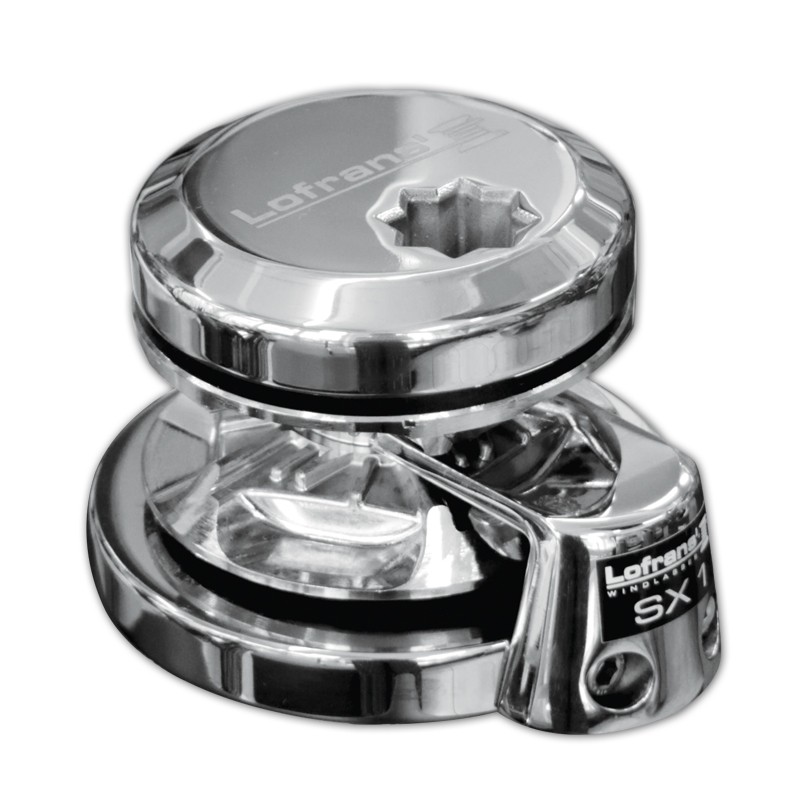

The Lofrans SX1 vertical windlass is built in Marine AISI 316L stainless steel and designed for safe anchoring on sailing and motor boats from 6 to 27 meters. A compact round base and robust drivetrain ensure reliable performance in marine conditions. The SX1 range includes 12V models with 500W and 800W motors, matched to different chain sizes for efficient anchor handling.

Motor size
Voltage
Gypsy
Add to Cart

Lofrans SX1 vertical windlass is manufactured in Marine AISI 316L stainless steel and designed for safe and efficient anchoring on sailing and motor boats. Its compact round base allows a clean installation, while robust engineering ensures reliable performance in demanding marine environments.

The SX1 range includes multiple motor power options (500W and 800W) for a 12V system, matched to different chain sizes. Precision mechanics and reliable power transmission provide stable line speed and strong pulling capability during anchoring operations.

Technical specifications

Product code 636279 636280 636281
Model SX1 INOX ROUND 500W / 12V SX1 INOX ROUND 800W / 12V SX1 INOX ROUND 800W / 12V
Motor power 500 W 800 W 800 W
Maximum pull 630 kg 700 kg 700 kg
Line speed at working load 23 m/min 25 m/min 25 m/min
Maximum speed 26 m/min 28 m/min 28 m/min
Net weight (low profile) 11 kg 13 kg 13 kg
Circuit breaker 636087 636088 -
Voltage 12 V 12 V 12 V
Type Low profile Low profile Low profile
Gypsy for chain 6 mm ISO 4565 / DIN 766 8 mm ISO 4565 / DIN 766 6 mm ISO 4565 / DIN 766

Documentation:
User manual
Product brochure
