X1 - Vertical Windlass, Anodised Aluminium, 12V, 6mm, 500W, With Drum X1 & SX1 Vertical windlasses 500–800 W

X1 - Vertical Windlass, Anodised Aluminium, 12V, 6mm, 500W, With Drum

SKU 409558 Category X1 & SX1 Vertical windlasses 500–800 W
€775.60

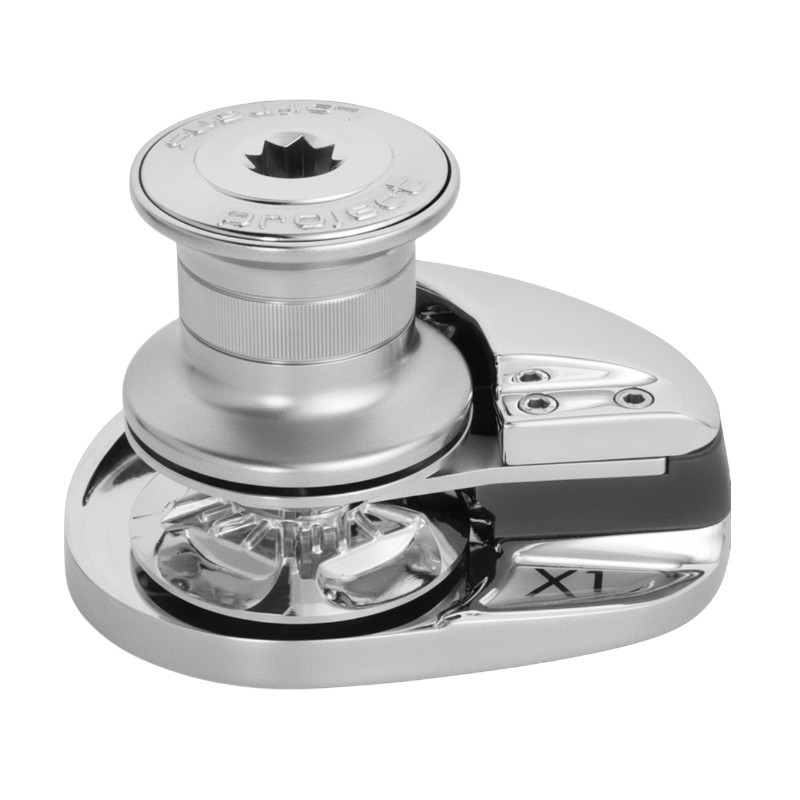

The Lofrans X1 ALU vertical windlass with drum is designed for safe and efficient anchoring on sailing and motor boats from 6 to 27 meters in length. Manufactured from anodised aluminium, it offers excellent corrosion resistance and long service life in marine environments. The 500 W motor operating on a 12 V system delivers stable hauling speed and reliable pulling force for combined chain and rope operation.

Add to Cart

Lofrans X1 ALU vertical windlass with drum is a reliable solution for efficient anchor handling on sailing and motor boats. The vertical configuration allows a clean below-deck installation while optimising available space.

Manufactured from anodised aluminium, the windlass provides excellent corrosion resistance and durability. It supports combined chain and rope operation and is powered by a strong electric motor that ensures stable line speed and dependable pulling performance.

Technical specifications

Product code 409558
Model X1 ALU G+D 500W / 12V
Construction Anodised aluminium
Chain 6 mm ISO 4565 / DIN 766
Rope 10–12 mm, 3-strand
Line speed at working load 23 m/min
Maximum speed 26 m/min
Maximum pull 630 kg
Motor power 500 W
Voltage 12 V
Type With drum
Weight 11 kg
Working load 95 kg

User manual:
Download user manual
