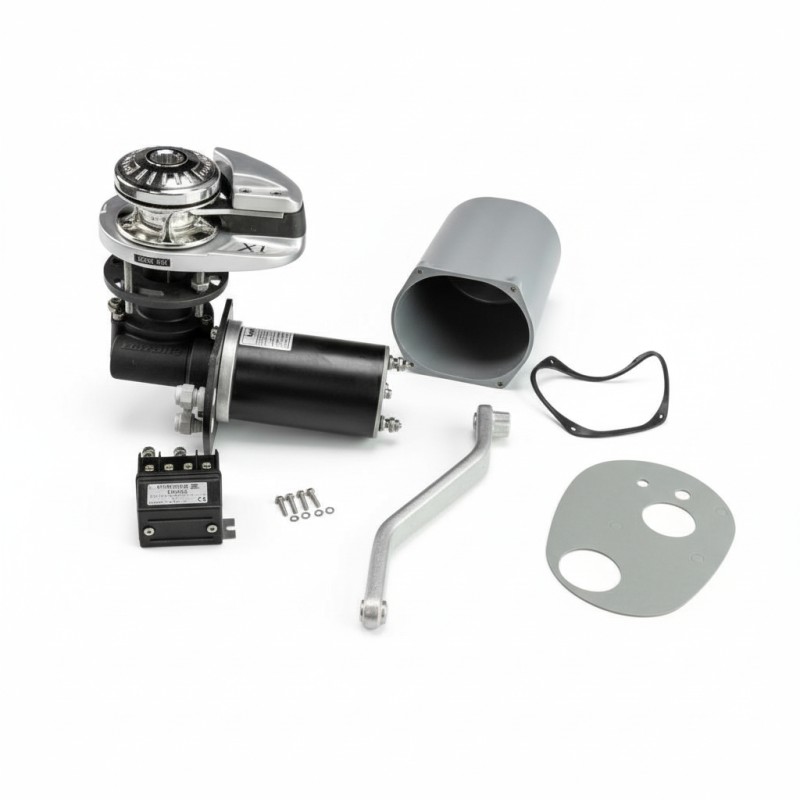

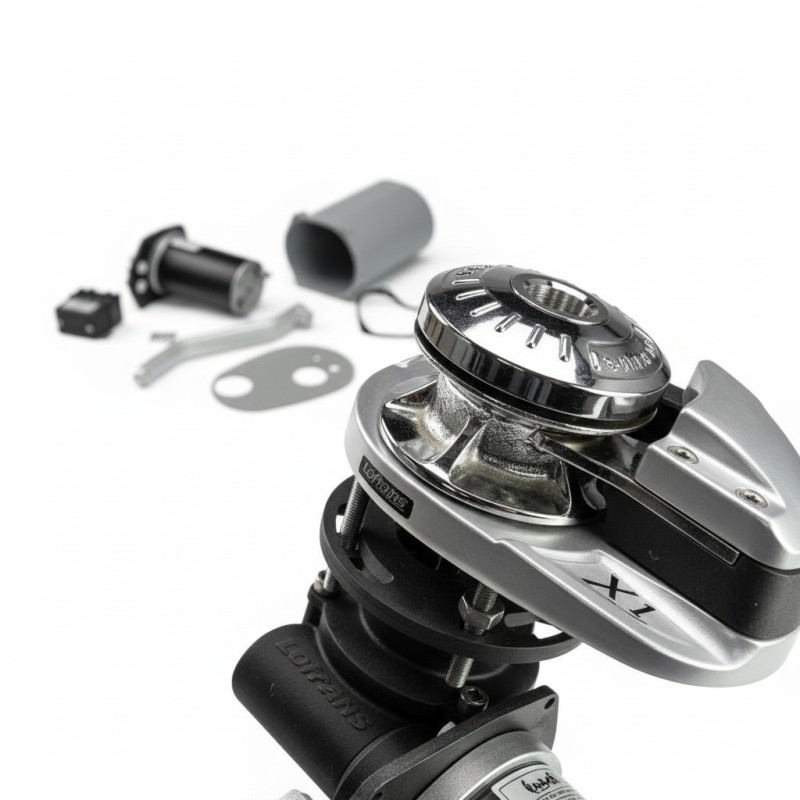

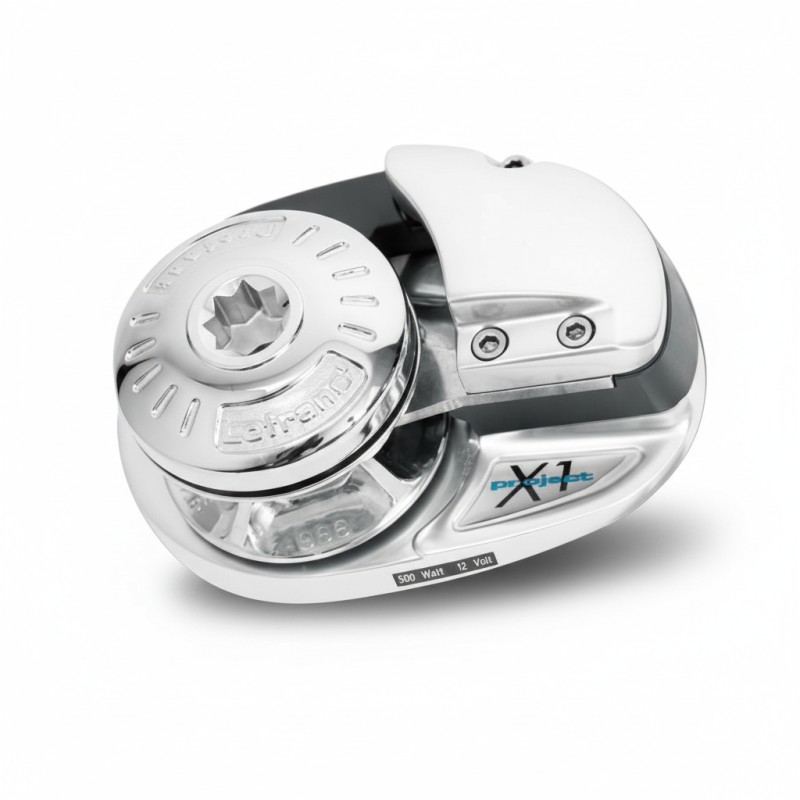

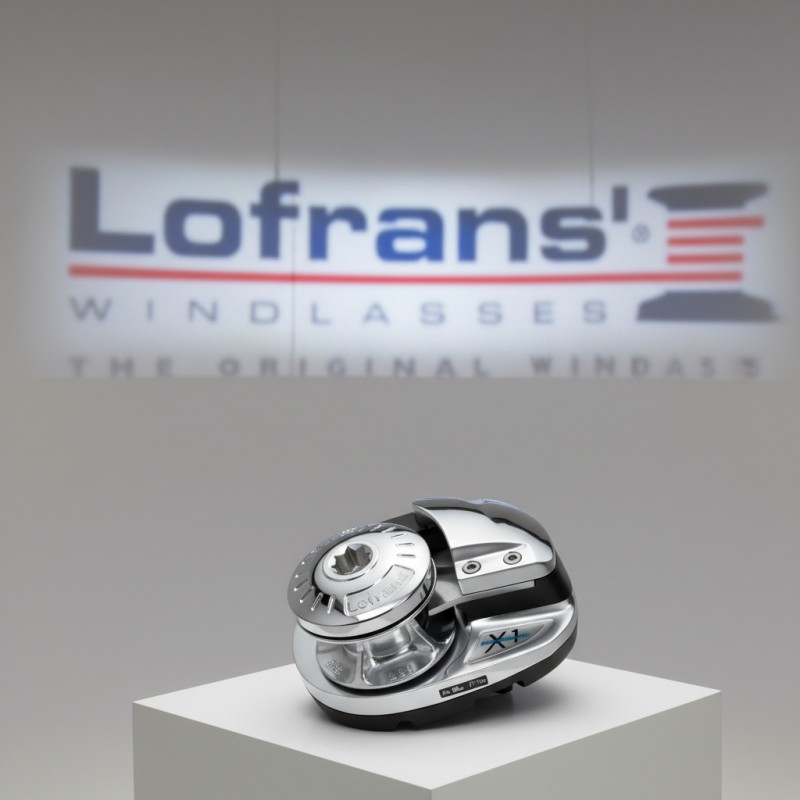

X1 - Vertical Windlass, Anodised Aluminium, 500W, 12V, 6mm Low Profile
€704.70
The Lofrans X1 vertical windlass is a reliable anchoring solution designed for sailing and motor boats from 6 to 27 meters in length. This drum version is made of anodised aluminium and powered by a 500 W motor operating on a 12 V system. It supports combined rope and chain handling, while the compact vertical design ensures a clean installation and efficient use of space below deck.
Lofrans X1 vertical windlass is a dependable solution for safe and efficient anchor handling on sailing and motor boats. Its anodised aluminium construction ensures durability and resistance in harsh marine environments.
The windlass is equipped with a drum and supports combined rope and chain operation. A powerful 500 W electric motor provides stable hauling speed and reliable pulling force, while the vertical configuration saves space below deck and allows for a clean installation.
Technical specifications
| Product code | 409557 |
|---|---|
| Model | X1 ALU 500W / 12V |
| Construction | Anodised aluminium |
| Chain | 6 mm ISO 4565 / DIN 766 |
| Rope | 10–12 mm, 3-strand |
| Line speed at working load | 23 m/min |
| Maximum speed | 26 m/min |
| Maximum pull | 630 kg |
| Motor power | 500 W |
| Voltage | 12 V |
| Type | With drum |
| Weight | 11 kg |
| Working load | 95 kg |
User manual:
Download user manual
