X1 - Vertical Windlass, Dark, 12V, 500-800W, Low Profile

SKU 636206 Category X1 & SX1 Vertical windlasses 500–800 W
€903.55

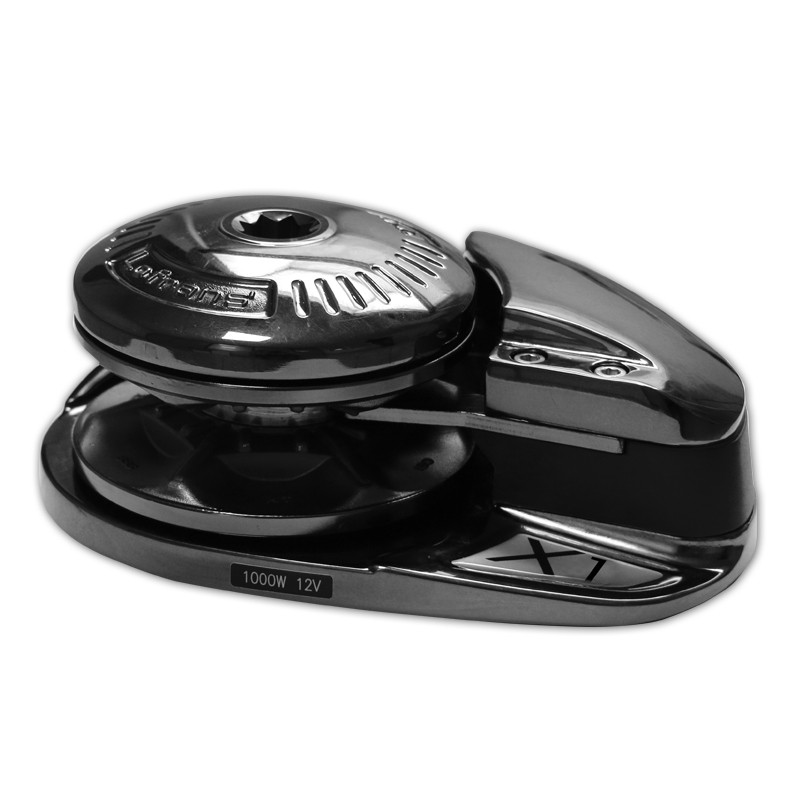

The Lofrans X1 Dark vertical windlass is designed for safe and efficient anchoring on sailing and motor boats from 6 to 27 meters in length. The Dark version features a modern dark finish combined with the proven reliability of the X1 series. Multiple motor power options and configurations for chain and rope operation ensure stable pulling force, durability and reliable performance in demanding marine environments.

Motor size
Voltage
Gypsy
Add to Cart

Lofrans X1 Dark vertical windlass combines the proven mechanics of the X1 series with a modern dark finish, making it ideal for contemporary sailing and motor boats. The vertical configuration allows a clean below-deck installation and efficient use of space.

Designed for combined chain and rope operation, the X1 Dark series delivers stable line speed and high pulling power. Robust construction and powerful electric motors ensure long-lasting and reliable performance in demanding marine conditions.

Technical specifications

Product code 636206 636432 636433
Model X1 DARK 500W / 12V X1 DARK 800W / 12V X1 DARK 800W / 12V
Chain 6 mm ISO 4565 / DIN 766 8 mm ISO 4565 / DIN 766 6 mm ISO 4565 / DIN 766
Rope 10–12 mm, 3-strand 12 mm, 3-strand 10–12 mm, 3-strand
Line speed at working load 23 m/min 25 m/min 25 m/min
Maximum speed 26 m/min 28 m/min 28 m/min
Maximum pull 630 kg 700 kg 700 kg
Motor power 500 W 800 W 800 W
Voltage 12 V 12 V 12 V
Type Low profile Low profile Low profile
Weight 10 kg 13 kg 13 kg
Working load 95 kg 100 kg 100 kg

Documentation:
User manual
Product brochure
