WINDLASS V. SX2 INOX ROUND G+D 1000W/12V 8-5/16

SKU 636283 Category X2 & SX2 Vertical Windlasses 1000-1500W
€1,549.20

The crossed-out price represents the lowest price at which the product was offered in the last 30 days.

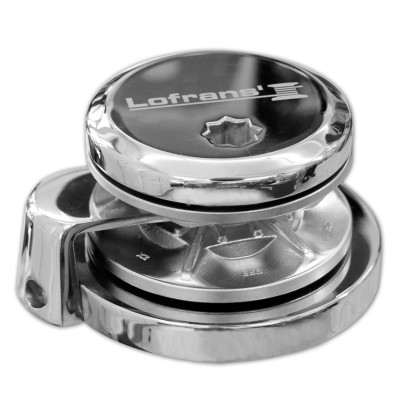

SX2 Vertical Windlass Inox is a compact stainless steel vertical anchor windlass designed for reliable and efficient anchoring operations on small and medium-sized boats. Manufactured from marine-grade AISI 316L stainless steel, it is available in low-profile and drum versions and ensures smooth, safe operation in demanding marine environments.

Motor size
Voltage
Gypsy
Add to Cart

SX2 Vertical Windlass Inox is a compact and robust vertical anchor windlass manufactured from marine-grade AISI 316L stainless steel. Designed for durability and corrosion resistance, it is ideal for installations where space efficiency and reliability are essential.

The SX2 features a round compact base design and supports independent gypsy and drum operation (on drum versions), allowing flexible anchoring and mooring manoeuvres. The vertical configuration enables below-deck motor installation, keeping the deck area clean and optimising weight distribution.

Main features

Base design Compact round base
Material Marine-grade AISI 316L stainless steel
Versions Low profile or with drum
Operation Independent gypsy and drum operation
Chain release Manual chain release
Chain counter readiness Chain counter magnet pre-installed as standard
Motor protection IP67 motor cover
Gearbox Anodised marine aluminium gearbox
Accessories Chain pipe available as optional accessory

Standard equipment

Dual direction solenoid pack
Operating handle
Gypsy for chain
CD / Instruction manual
Chain pipe available as option (code 636311)

Technical specifications

Specification 636682 636283
Description WINDLASS V. SX2 INOX ROUND 1000W/12V 10 3/8 HT WINDLASS V. SX2 INOX ROUND G+D 1000W/12V 8-5/16"BBB-5/16"HT
Gypsy For Chain 8 mm, ISO 4565 / DIN 766 8 mm, ISO 4565 / DIN 766
Amps Work Load (A) 135 135
Net Weight with Drum (kg) 20 20
Motor size 1000 W 1000 W
Power Supply 12 12
Maximum Pull 1000 1000
Working load (kg) 150 150
Line Speed at W.L 20 20
Max Line Speed 40 40
Net Weight with Low Profile (kg) 19 19
Circuit Breaker 636089 636089
Type With drum With Drum
