X2 - Vertical Windlass, Alu,12V / 1000 W, Low Profile X2 & SX2 Vertical Windlasses 1000-1500W

X2 - Vertical Windlass, Alu,12V / 1000 W, Low Profile

SKU 472557 Category X2 & SX2 Vertical Windlasses 1000-1500W
€1,108.75

The Lofrans X2 vertical windlass is a professional anchoring solution designed for sailing yachts and motorboats from 6 to 27 meters in length. The series features a robust construction, a watertight stainless steel ball bearing housed in the base, and independent gypsy and drum operation. X2 windlasses ensure smooth, powerful, and reliable anchoring with minimal maintenance, even under demanding marine conditions.

Add to Cart

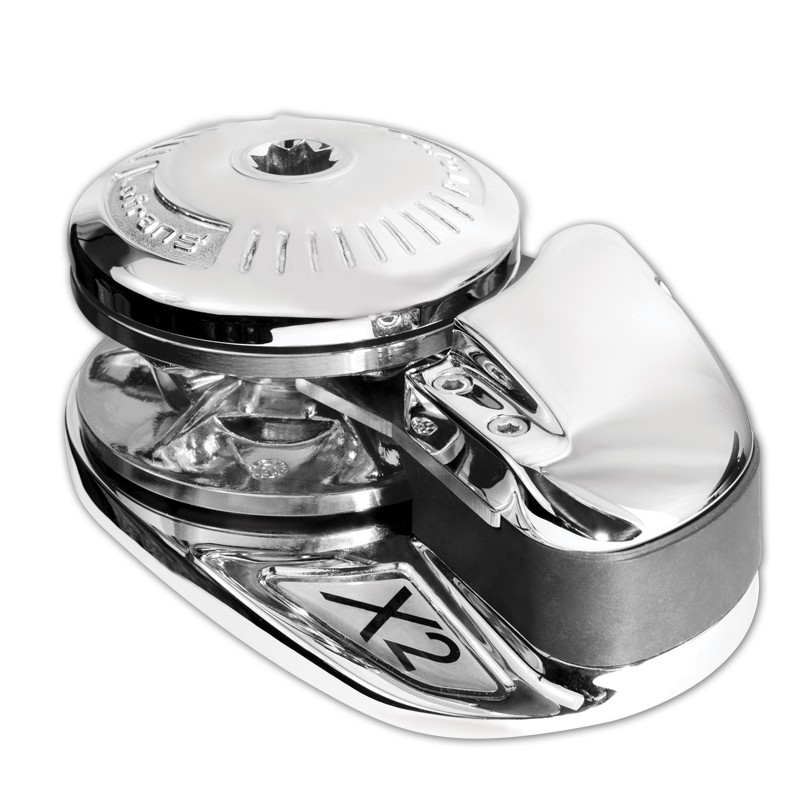

The Lofrans X2 is a low-profile vertical anchor windlass designed for reliable anchoring on sailing yachts and motorboats. The anodised aluminium base provides excellent corrosion resistance and durability in demanding marine environments.

This model is equipped with a powerful 1000 W electric motor and is designed for use with 8 mm chain, with the option of rope and chain combination. The low-profile design allows easy installation on decks with limited available space.

Main Features

  • Anodised aluminium base
  • Low profile vertical windlass design
  • Independent gypsy operation
  • Watertight stainless steel ball bearing
  • 1000 W electric motor
  • Suitable for sailing yachts and motorboats

Technical Specifications

Windlass type Vertical anchor windlass
Base material Anodised aluminium
Power supply 12 V
Motor power 1000 W
Maximum pull 1000 kg
Working load 150 kg
Line speed at working load 20 m/min
Maximum line speed 40 m/min
Chain size 8 mm (ISO 4565 / DIN 766)
Rope size 14 mm, 3-strand
Net weight 19 kg
Type Low Profile

Documentation

📄 Installation & User Manual (PDF)
