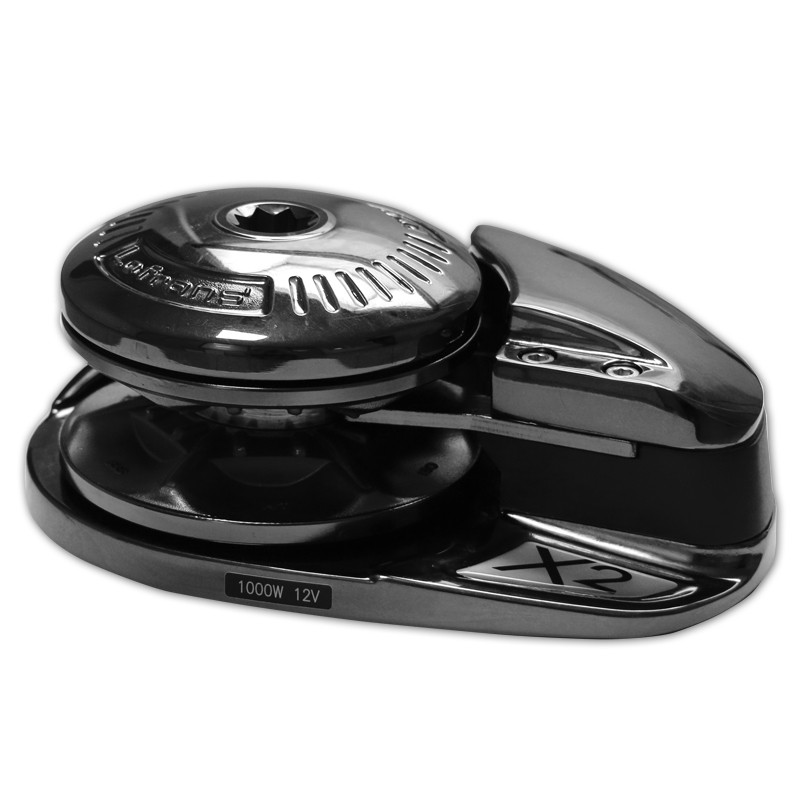

Lofrans Vertical Windlass X2, Dark,12V1000W, Low Profile X2 & SX2 Vertical Windlasses 1000-1500W

Lofrans Vertical Windlass X2, Dark,12V1000W, Low Profile

SKU 636703 Category X2 & SX2 Vertical Windlasses 1000-1500W
€1,404.95

The Lofrans X2 Vertical Windlass Dark Version is a professional anchoring solution designed for boats requiring high performance, reliability and a modern appearance. Its dark finish and compact low-profile design allow discreet deck installation. Powerful 1000W motor output, manual override system and IP67 motor protection ensure safe, precise and dependable anchoring in demanding marine environments.

Motor size
Gypsy
Add to Cart

The Lofrans X2 Vertical Windlass Dark Version is a powerful anchoring solution developed for larger and more demanding boats. Its modern dark finish combined with a compact low-profile design delivers both refined aesthetics and professional performance.

The X2 Dark range features a rope and chain combination gypsy, manual chain release and a manual override system allowing chain recovery in case of power failure. Rope and chain management is handled by a spring-loaded arm, while an IP67-rated motor cover and anodised marine aluminium gearbox ensure long-term reliability.

  • Standard equipment: dual direction solenoid pack, handle, gypsy for chain, QR code card for instruction manual.

Documents:
Download brochure

Product code 636703 636705 636707
Configuration Low Profile
Motor power 1000 W
Voltage 12 V
Maximum pull 1000 kg
Working load 150 kg
Line speed at working load 20 m/min
Maximum line speed 40 m/min
Net weight 19 kg 19 kg 19 kg
Gypsy for chain 8 mm ISO 4565 / DIN 766 10 mm ISO 4565 10 mm DIN 766
