X2 - Vertical Windlass, Dark,12V1000W, With Drum X2 & SX2 Vertical Windlasses 1000-1500W

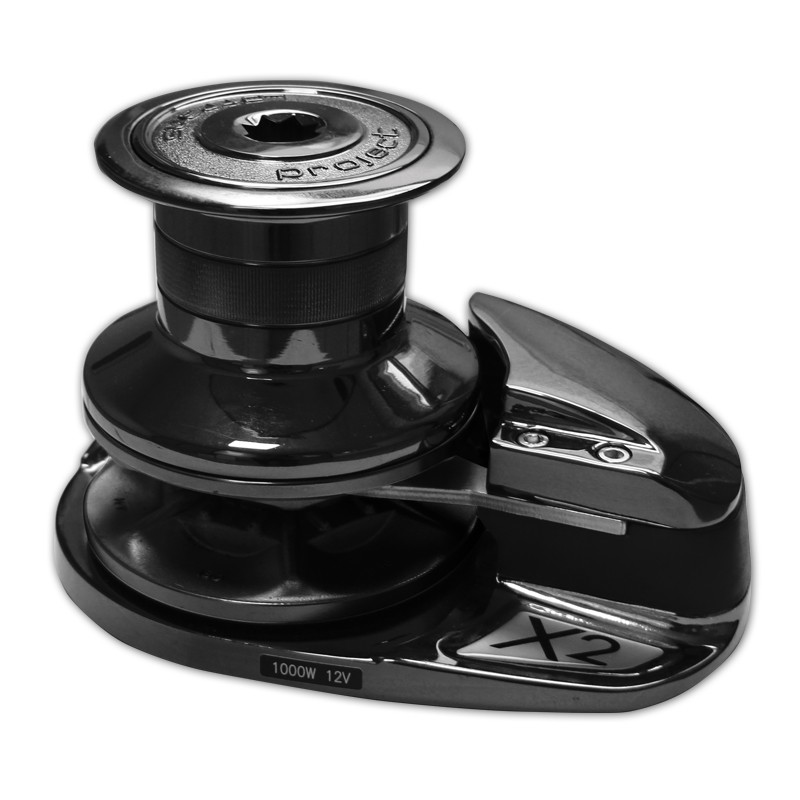

X2 - Vertical Windlass, Dark,12V1000W, With Drum

SKU 636704 Category X2 & SX2 Vertical Windlasses 1000-1500W
€1,442.95

The Lofrans X2 Vertical Windlass Dark Version is a powerful anchoring solution designed for boats requiring high performance, reliability and modern aesthetics. Its dark finish, robust construction and independent gypsy and drum operation ensure safe and precise anchoring. A rope/chain combination gypsy, IP67 motor protection and an anodised marine aluminium gearbox make it ideal for demanding marine environments and intensive use.

Gypsy
Add to Cart

The Lofrans X2 Vertical Windlass Dark Version is a professional anchoring solution designed for larger and more demanding boats. Its modern dark finish enhances deck aesthetics while delivering maximum reliability and performance.

The X2 Dark range features independent gypsy and drum operation (G+D), a rope and chain combination gypsy, manual chain release and a manual override system for chain or rope recovery in case of power failure. Rope management is ensured via a spring-loaded arm, while an IP67-rated motor cover and anodised marine aluminium gearbox guarantee long-term durability.

  • Standard equipment: dual direction solenoid pack, handle, gypsy for chain and rope, QR code card for instruction manual.

Documents:
Download brochure

Product code 636704 636706 636708
Configuration With Drum (G+D)
Motor power 1000 W
Voltage 12 V
Maximum pull 1000 kg
Working load 150 kg
Line speed at working load 20 m/min
Maximum line speed 40 m/min
Net weight 20 kg 20 kg 20 kg
Gypsy for chain 8 mm ISO 4565 / DIN 766 10 mm ISO 4565 10 mm DIN 766
Gypsy for rope 14 mm, 3-strand - -
