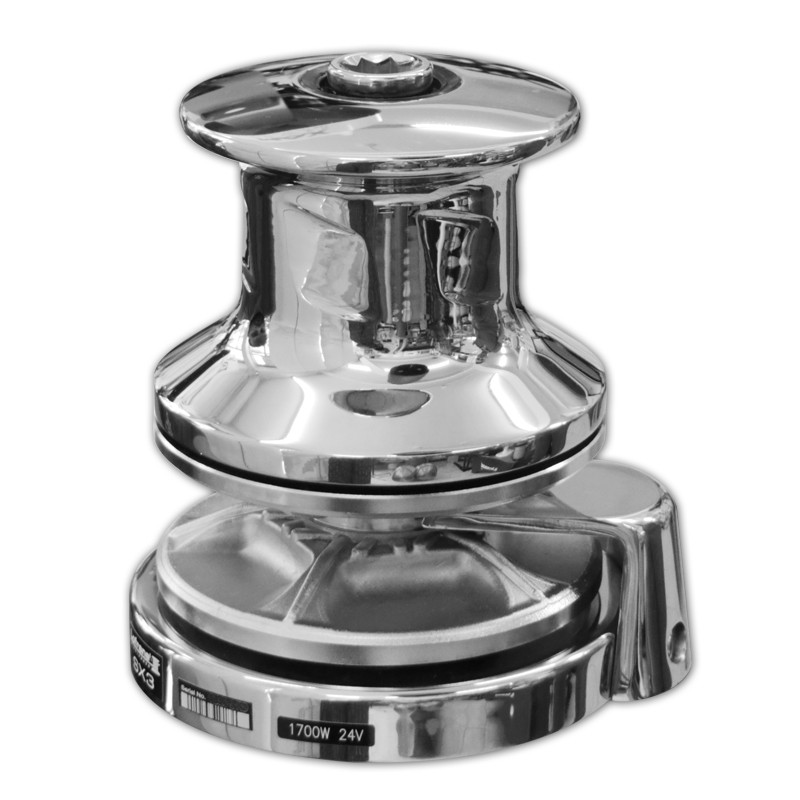

SX3 - Vertical Windlass 12-24V, 1500-1700W, Inox, drum
€2,247.75
The Lofrans SX3 vertical anchor windlass is designed for sailing yachts and motor boats from 6 to 27 metres in length. Its compact round base and AISI 316L stainless steel construction ensure excellent corrosion resistance and long-term reliability in demanding marine environments. Available in low-profile or drum versions, the SX3 delivers powerful, smooth and controlled anchoring performance.
Motor size
Voltage
Gypsy
Lofrans SX3 vertical anchor windlass is a reliable and powerful anchoring solution for sailing yachts and motor boats from 6 to 27 metres in length. Featuring a compact round base and a housing made of AISI 316L stainless steel, the SX3 offers excellent corrosion resistance and long-lasting performance in demanding marine environments.
The windlass is available in low-profile or drum configurations, with independent gypsy and drum operation. A high-performance IP66-rated electric motor, anodised aluminium gearbox and conical clutch ensure even load distribution and efficient anchoring. The SX3 is equipped as standard with a chain counter magnet and a manual chain release system, allowing safe operation even in the event of power failure.
Documentation:
Product Brochure
User & Installation Manual
Technical specifications
| Code | 636652 | 636658 | 636288 | 636287 |
|---|---|---|---|---|
| Description | With drum | With drum | Low profile | Low profile |
| Gypsy For Chain | 10 mm, DIN 766 | 10 mm, ISO 4565 / 3/8 HT | 12 mm, ISO 4565 / 13 mm DIN 766 | 12 mm, ISO 4565 / 13 mm DIN 766 |
| Motor size | 1500 W | 1500 W | 1700 W | 1700 W |
| Net Weight | 35 kg | 35 kg | 38 kg | 38 kg |
| Power Supply | 12 V | 24 V | 24 V | 24 V |
| Type | With drum | With drum | Low profile | Low profile |
| Amps at Working Load (A) | 150 | 65 | 90 | 90 |
| Working load (kg) | 1200 | 1200 | 1695 | 1695 |
