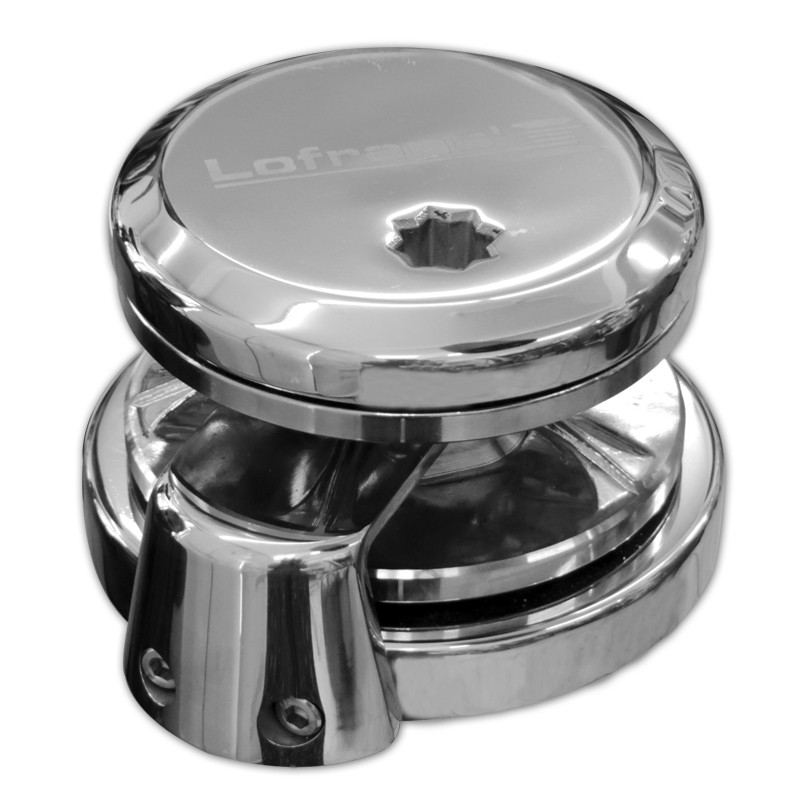

SX3 - Vertical Windlass 12-24V, 1500-1700W, Inox, Low profile
€1,501.60
The Lofrans SX3 vertical windlass is designed for sailing yachts and motor boats from 6 to 27 metres in length. Its compact round base and AISI 316L stainless steel construction ensure excellent corrosion resistance and long-lasting reliability in harsh marine environments. Available in low profile configuration, the SX3 features a powerful IP66 electric motor, independent gypsy operation and a robust anchoring system for safe and efficient performance.
Motor size
Voltage
Gypsy
Lofrans SX3 vertical anchor windlass is designed for sailing yachts and motor boats from 6 to 27 metres in length, combining compact dimensions with high power and mechanical reliability. The round base and AISI 316L stainless steel housing provide excellent corrosion resistance and long-lasting performance in demanding marine environments.
The windlass features a powerful electric motor, a precision gearbox and a conical clutch that ensures even load distribution during anchoring operations. A manual chain release system and an integrated chain counter magnet enhance safety and control while handling the anchor. The SX3 construction is suitable for intensive use and allows easy maintenance.
Documentation:
Product Brochure
User & Installation Manual
Technical specifications
| Code | 636289 | 636451 | 636286 |
|---|---|---|---|
| Description | Low profile version | Low profile version | Low profile version |
| Gypsy for chain | 10 mm, ISO 4565 | 10 mm, ISO 4565 | 12 mm ISO 4565 / 13 mm DIN 766 |
| Motor size | 1500 W | 1700 W | 1700 W |
| Net weight | 32 kg | 35 kg | 35 kg |
| Power supply | 12 V | 12 V | 24 V |
| Type | Low profile | Low profile | Low profile |
| Amps at working load (A) | 150 | 180 | 90 |
| Working load (kg) | 165 | 200 | 215 |
