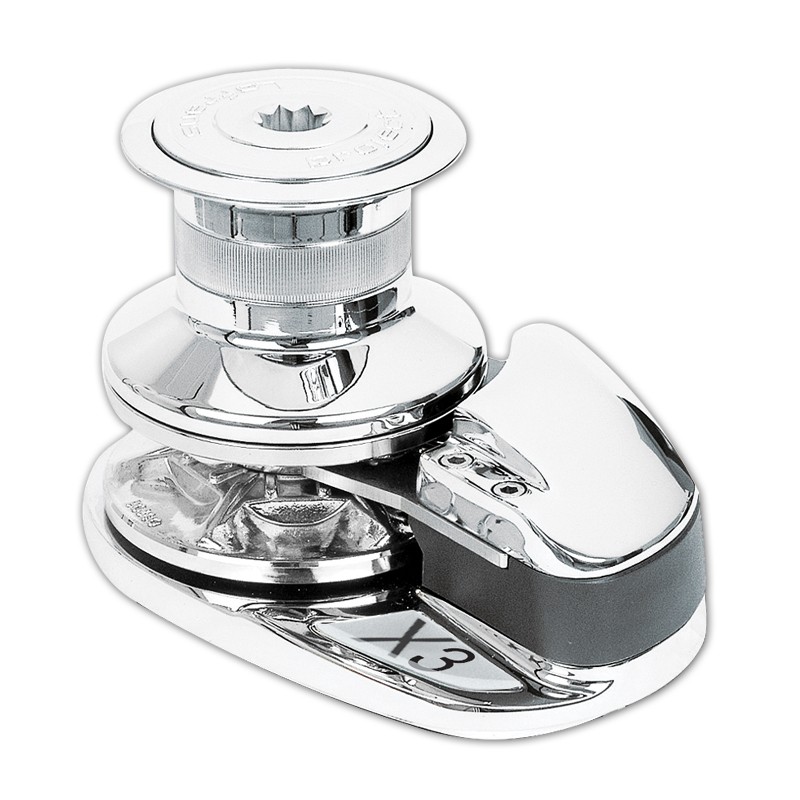

X3 - Vertical Windlass 12-24V, 1500-1700W, Chrome, drum
€1,951.70
The Lofrans X3 vertical anchor windlass is designed for sailing yachts and motor boats from 6 to 27 metres in length. Its robust construction with a chromed bronze or aluminium base, combined with a powerful electric motor and precision engineering, ensures safe, controlled and long-lasting anchoring. The X3 series supports chain or rope/chain combinations and delivers reliable performance in demanding marine conditions.
Motor size
Voltage
Gypsy
Lofrans X3 vertical anchor windlass is designed for sailing yachts and motor boats from 6 to 27 metres in length, providing a robust and reliable anchoring solution. Its solid construction with a chromed bronze or aluminium base, combined with precision engineering, ensures long-lasting performance and excellent resistance to harsh marine conditions.
The X3 series supports operation with chain or rope/chain combinations and features independent gypsy and drum operation. A watertight stainless steel ball bearing in the base guarantees smooth functionality and zero maintenance, while the conical clutch ensures proper load distribution. The powerful electric motor delivers controlled and efficient anchoring, and manual override allows safe chain or rope recovery in case of power failure.
Documentation:
User Manual
Installation & Maintenance Manual
Technical specifications – 12 V models
| Code | 472865 | 473208 | 473004 | 478647 |
|---|---|---|---|---|
| Description | Low profile | With drum | Low profile | With drum |
| Gypsy For Chain | 10 mm, ISO 4565 | 10 mm, ISO 4565 | 12 mm, ISO 4565 | 12 mm, ISO 4565 |
| Gypsy For Rope | 16 mm | 16 mm | 18 mm | 18 mm |
| Motor size | 1500 W | 1700 W | 1700 W | 1700 W |
| Net Weight | 32 kg | 35 kg | 38 kg | 38 kg |
| Power Supply | 12 V | 12 V | 12 V | 12 V |
| Type | Low profile | With drum | Low profile | With drum |
| Amps at Working Load (A) | 150 | 180 | 180 | 180 |
| Working load (kg) | 1200 | 1600 | 1600 | 1600 |
Technical specifications – 24 V models
| Code | 602101 | 473228 | 602103 | 473252 | 473005 |
|---|---|---|---|---|---|
| Description | Low profile | With drum | Low profile | With drum | Low profile |
| Gypsy For Chain | 10 mm, ISO 4565 | 12 mm, ISO 4565 | 10 mm, ISO 4565 | 12 mm, ISO 4565 | 12 mm, ISO 4565 |
| Gypsy For Rope | 16 mm | 18 mm | 16 mm | 18 mm | 18 mm |
| Motor size | 1700 W | 1700 W | 1500 W | 1700 W | 1500 W |
| Net Weight | 35 kg | 38 kg | 32 kg | 38 kg | 32 kg |
| Power Supply | 24 V | 24 V | 24 V | 24 V | 24 V |
| Type | Low profile | With drum | Low profile | With drum | Low profile |
| Amps at Working Load (A) | 90 | 90 | 85 | 90 | 85 |
| Working load (kg) | 1600 | 1650 | 1200 | 1650 | 1200 |
