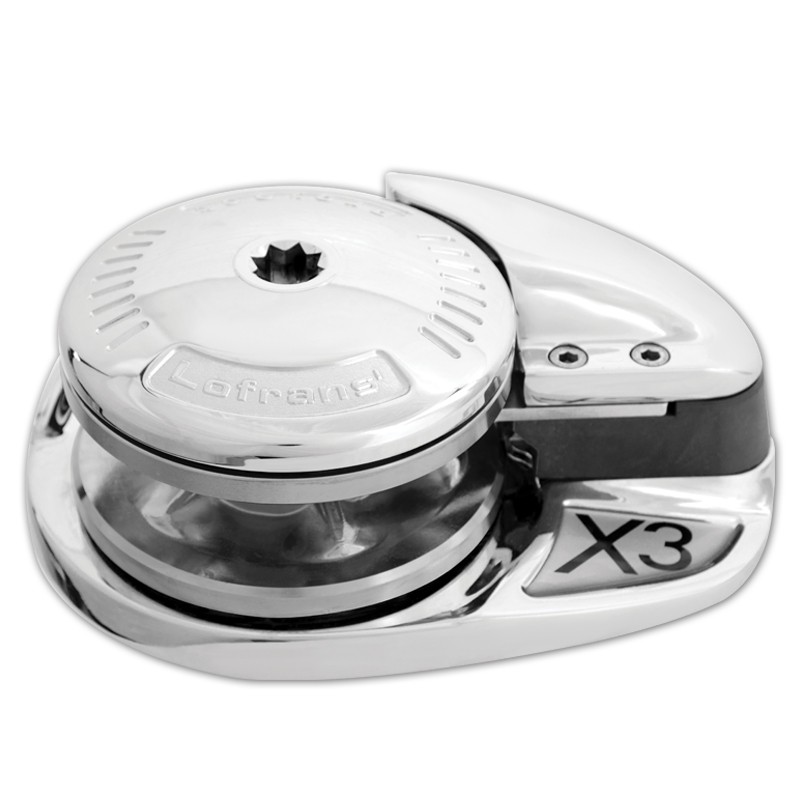

X3 - Vertical Windlass 12-24V, 1500-1700W, Chrome, Low profile X3 & SX3 Vertical Windlasses 1500 - 1700W

X3 - Vertical Windlass 12-24V, 1500-1700W, Chrome, Low profile

SKU 472866 Category X3 & SX3 Vertical Windlasses 1500 - 1700W
€1,754.05

The Lofrans X3 vertical windlass is designed for boats requiring a powerful and reliable anchoring solution. Suitable for sailing and motor boats from 6 to 27 meters, the X3 series is built for heavier duty use, offering drum and low-profile configurations for combined chain and rope operation. Robust construction, precise mechanics and high working loads ensure strong pulling power and dependable performance in demanding marine environments.

Motor size
Voltage
Gypsy
Add to Cart

Lofrans X3 Vertical Windlass is a powerful and reliable vertical anchoring windlass designed for sailing yachts and motor boats from 6 to 27 metres in length. Engineered for demanding marine environments, the X3 series delivers excellent mechanical efficiency, corrosion resistance and long-term durability.

The windlass is available with chromed bronze or aluminium bases and in both Low Profile and drum configurations. A watertight stainless steel ball bearing in the base ensures smooth operation with minimal maintenance requirements. The conical clutch provides correct load distribution, while the special motor-to-gearbox coupling allows easier servicing.

The X3 windlass supports chain or rope/chain combinations and features a manual recovery system, enabling safe anchor retrieval in the event of power failure.

Documentation:
User Manual
Installation & Maintenance Manual

Technical specifications – 12 V models

Code 472866 602099 473209 472842 473006
Description Low Profile With Drum Low Profile With Drum Low Profile
Gypsy For Chain 10 mm DIN 766 10 mm DIN 766 10 mm DIN 766 10 mm DIN 766 10 mm DIN 766
Gypsy For Rope 16 mm 16 mm 16 mm 16 mm 16 mm
Motor size 1500 W 1700 W 1700 W 1500 W 1700 W
Net Weight 35 kg 38 kg 36 kg 35 kg 38 kg
Power Supply 12 V 12 V 12 V 12 V 12 V
Type Low Profile With Drum Low Profile With Drum Low Profile
Amps at Working Load (A) 180 180 180 150 180
Working load (kg) 1200 1600 1600 1200 1650

Technical specifications – 24 V models

Code 602102 601097 473218 473256 602104
Description Low Profile Low Profile With Drum Low Profile With Drum
Gypsy For Chain 10 mm DIN 766 10 mm DIN 766 10 mm DIN 766 10 mm DIN 766 10 mm DIN 766
Gypsy For Rope 16 mm 16 mm 16 mm 16 mm 16 mm
Motor size 1700 W 1500 W 1700 W 1700 W 1700 W
Net Weight 35 kg 32 kg 38 kg 36 kg 38 kg
Power Supply 24 V 24 V 24 V 24 V 24 V
Type Low Profile Low Profile With Drum Low Profile With Drum
Amps at Working Load (A) 90 85 90 90 90
Working load (kg) 1600 1200 1600 1600 1650
