SX4 - Vertical Windlass, S/S 24v 2300W, V, G+D, 12 mm, ISO 4565/ 13 mm, DIN 766
€4,713.85

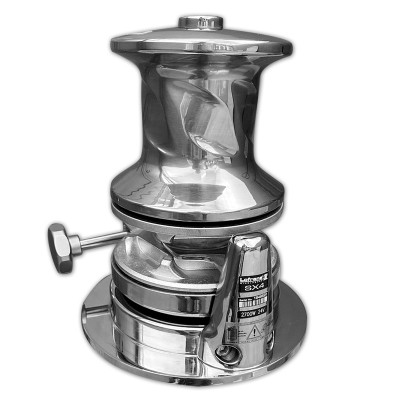

The Lofrans SX4 INOX ROUND vertical windlass is a compact and reliable anchoring solution designed for boats requiring high-quality stainless steel construction. Featuring a round base, AISI 316 stainless steel body and robust internal components, the SX4 ensures long-lasting performance and safe anchoring in demanding marine environments.
Motor size
Voltage
Gypsy
The Lofrans SX4 INOX ROUND vertical windlass combines compact design with high reliability and premium materials. Its round base and body are manufactured from AISI 316 stainless steel, providing excellent corrosion resistance and an elegant appearance. Independent gypsy and drum operation allows flexible chain handling, while manual chain release enhances operational safety.
Main Features
- Compact round base design
- AISI 316 stainless steel construction

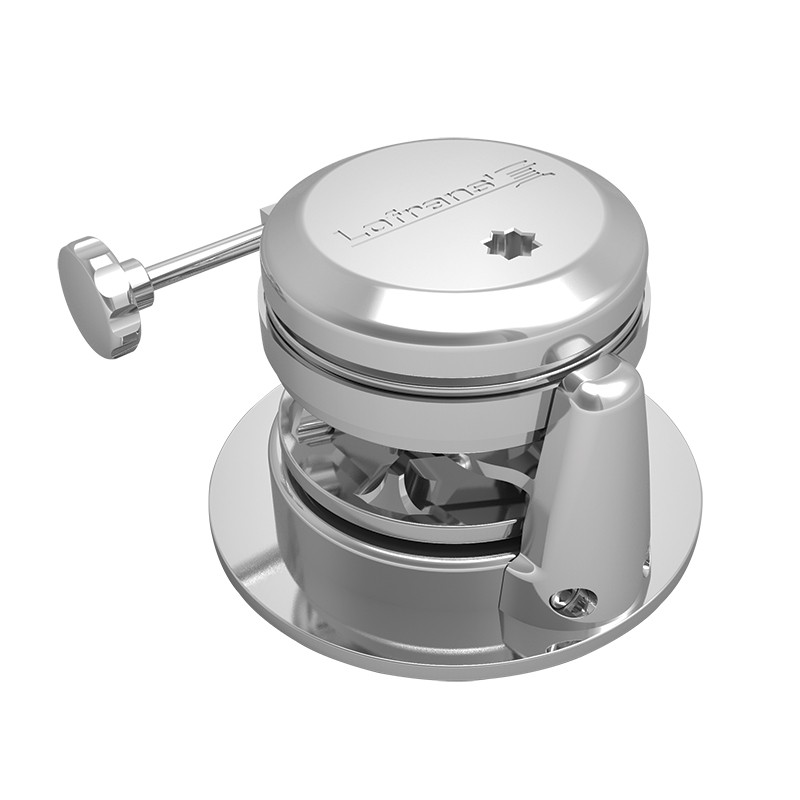

- With drum or low profile version
- Independent gypsy and drum operation
- Manual chain release
- Chain counter magnet pre-installed as standard
- Heavy-duty electric motor
- Anodised marine aluminium gearbox
Technical Specifications
| Product Code | 636290 | 636291 | 636655 |
|---|---|---|---|
| Motor Power | 2300 W | 2700 W | 2700 W |
| Power Supply | 24 V | 24 V | 24 V |
| Maximum Pull | 2100 kg | 2500 kg | 2500 kg |
| Working Load | 500 kg | 530 kg | 530 kg |
| Line Speed at W.L. | 13 m/min | 13 m/min | 13 m/min |
| Maximum Line Speed | 25 m/min | 28 m/min | 28 m/min |
| Gypsy for Chain | 12 mm (ISO 4565) / 13 mm (DIN 766) | 14 mm | |
| Configuration | With Drum (G+D) | With Drum (G+D) | With Drum (G+D) |
| Net Weight with Drum | 82 kg | 85 kg | 85 kg |
| Rotation | CW | CW | CW |
