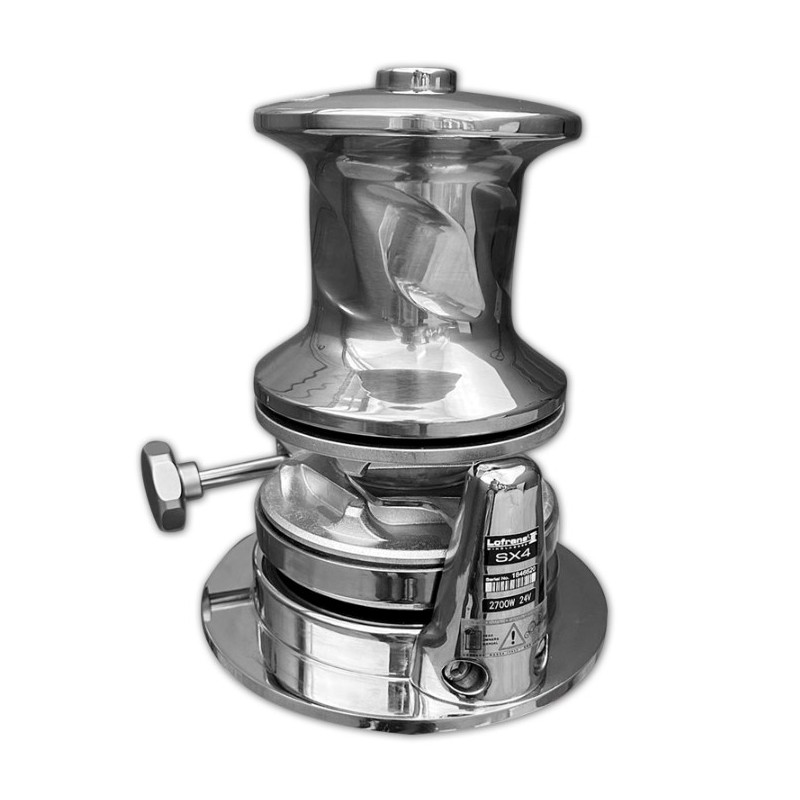

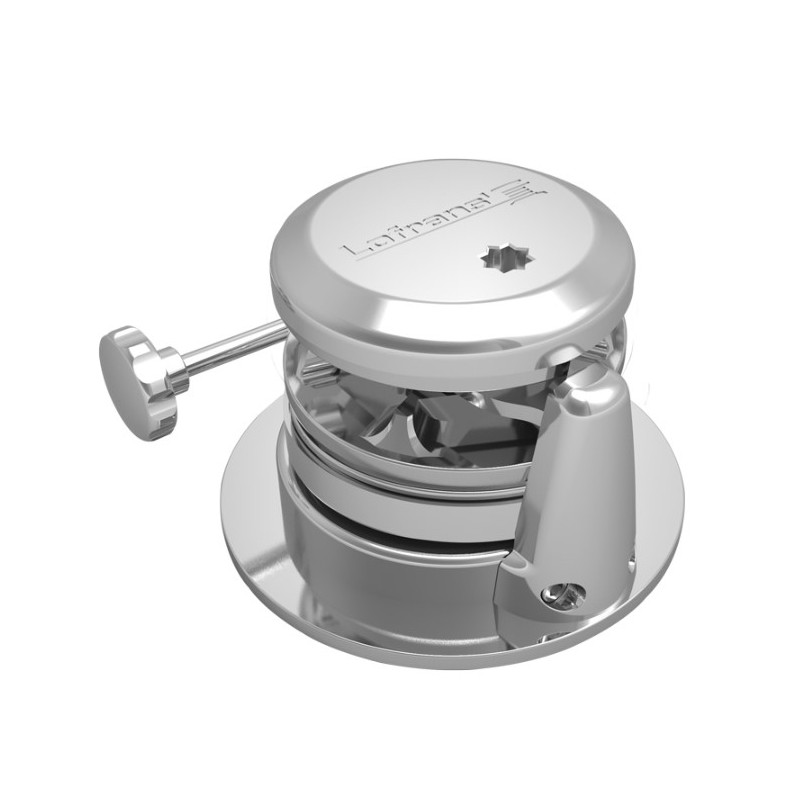

WINDLASS V. SX4 INOX ROUND G+D HYD 12-13DIN766
€4,086.60
The Lofrans SX4 INOX ROUND hydraulic vertical windlass is designed for professional and heavy-duty marine applications requiring continuous performance and maximum reliability. Featuring a round base and AISI 316 stainless steel construction, it offers excellent corrosion resistance and safe, controlled anchoring under high loads.
The Lofrans SX4 INOX ROUND hydraulic vertical windlass is engineered for professional installations on yachts and working vessels. Its round base and body are manufactured from AISI 316 stainless steel, ensuring excellent corrosion resistance and long service life. The hydraulic drive provides continuous-duty operation, while independent gypsy and drum operation allows flexible chain handling.
Main Features
- Compact round base design
- AISI 316 stainless steel construction
- Hydraulic drive for continuous-duty operation
- With drum (G+D configuration)
- Independent gypsy and drum operation
- Manual chain release
- Chain counter magnet pre-installed as standard
Technical Specifications
| Product Code | 636295 |
|---|---|
| Drive Type | Hydraulic – 8 cc |
| Maximum Pull | 2500 kg |
| Working Load | 650 kg |
| Line Speed at W.L. | 16 m/min |
| Maximum Line Speed | 16 m/min |
| Hydraulic Pressure | 200 bar |
| Hydraulic Flow | 32 l/min |
| Chain Size | 12 mm ISO 4565 / 13 mm DIN 766 |
| Net Weight with Drum | 60 kg |
| Rotation | CW |
Standard Equipment
- Gypsy for chain
- Handle
- Instruction manual
