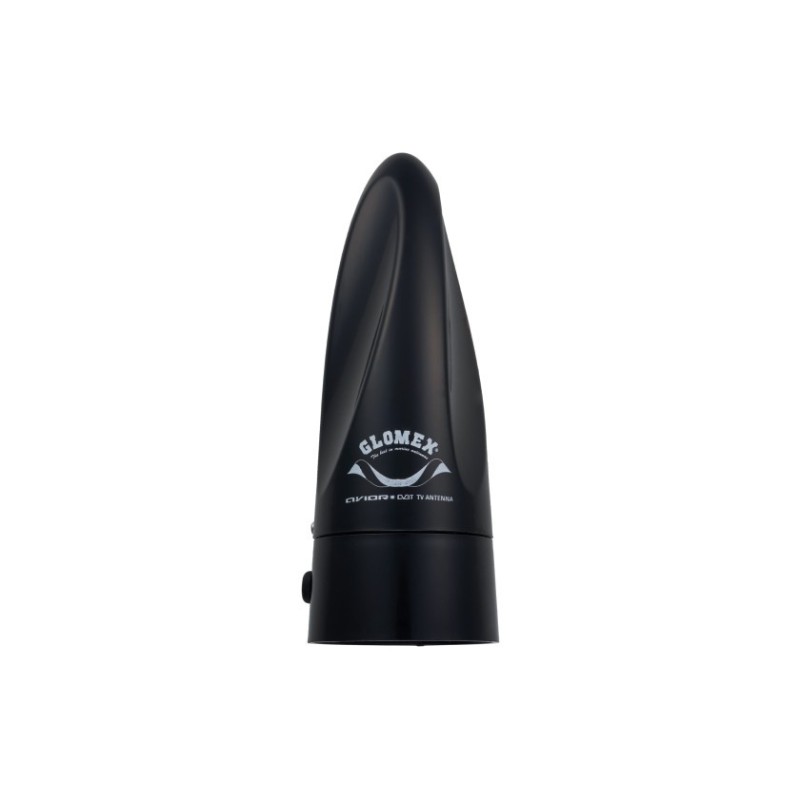

Omnidirectional TV Antenna AVIOR, with 24.5dB Gain Average, D100mm, white/black

Product details

AVIOR has been significantly improved in design and performance without losing its basic characteristics. It is suitable for both sailing boats and motorboats. It provides excellent signal reception even while underway.

This compact and lightweight TV antenna has a diameter of 100 mm and a height of 210 mm. The built-in voltage stabilizer ensures power supply and also acts as a TV antenna splitter, allowing two televisions to be connected at the same time without the need for an additional antenna splitter.

It is recommended to connect the antenna using a coaxial cable (10 m), TV cable (1.5 m) and a base.

• average gain: 25 dB
• power supply: 12 V
• diameter: 100 mm
• height: 210 mm

Installation notes:

The antenna is powered with 12 V through the COAX antenna cable. Follow these instructions:

BEFORE performing any work on the coaxial cable or on the connections between the antenna and the power amplifier input adapter (V9114PI-FM) (for example, when working on the mast), make sure the power supply is disconnected.

1. First connect the cable between the antenna and the input adapter (V9114PI-FM). If original coaxial cables are not used, make sure the cable is properly installed, clean and without risk of short circuit.
2. Once the coaxial cable is connected to the input adapter (V9114PI-FM), connect the 12 V power supply.

Do not tighten the connection nut on the DC input of the power adapter (V9114PI-FM). Failure to follow these instructions may void the warranty.

Please note:

Always ensure that the antenna is powered through the coaxial antenna cable (12 V). Handle the installation carefully and avoid short circuits. The operating voltage can be measured on the ANTENNA IN input adapter connector (V9114PI-FM). The current consumption of the antenna is approximately 30 mA.
