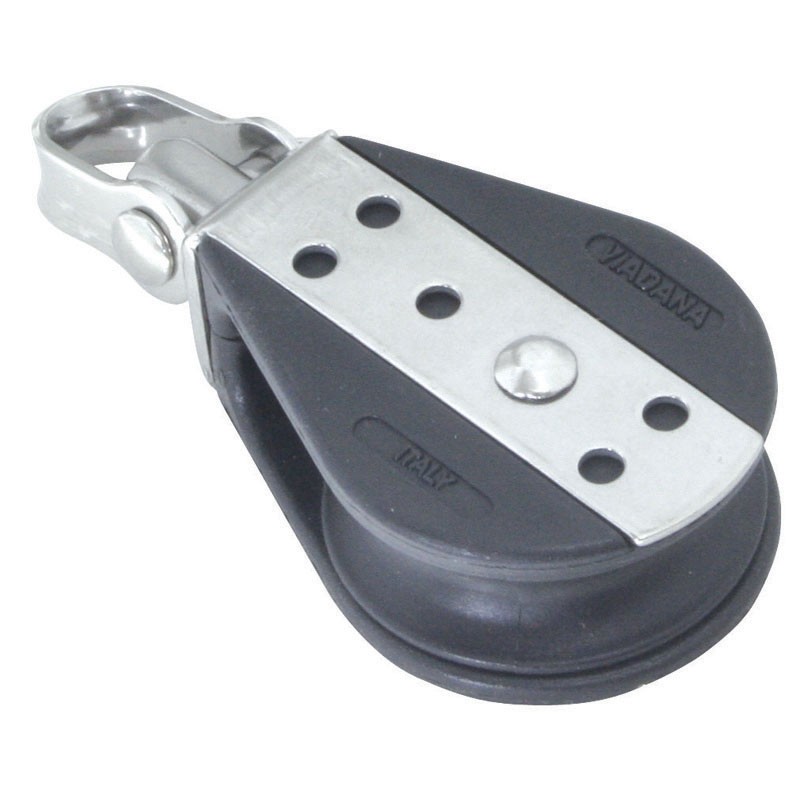

Swivel Ball Bearing Block with Shackle Blocks for rope diam 10mm, ball bearing diam D38mm

Swivel Ball Bearing Block with Shackle

SKU 92457 Category Blocks for rope diam 10mm, ball bearing diam D38mm
€20.10

Swivel ball bearing block with shackle designed for smooth rope handling, flexible positioning, and reduced friction in sailing systems.

Add to Cart

Swivel ball bearing block with shackle is designed for efficient rope handling and flexible positioning in sailing and marine systems.

The swivel head allows full rotation under load, ensuring optimal alignment with the rope direction and reducing wear on both rope and hardware. The integrated shackle enables secure and easy attachment.

The block features a Delrin® sheave and ball bearing system for smooth rotation and minimal friction. Load-bearing components are made of AISI 316 stainless steel, ensuring durability and corrosion resistance in marine environments.

Features

  • single ball bearing block with swivel
  • integrated shackle for secure attachment
  • 360° rotation for flexible positioning
  • smooth operation with reduced friction
  • Delrin® sheave and ball bearings
  • AISI 316 stainless steel components
  • compact and lightweight construction

Technical Specifications

Type Single swivel ball bearing block with shackle
Head Swivel (rotating)
Material Delrin® (sheave, ball bearings)
Metal Parts AISI 316 stainless steel
Application Sailing, sheets, control lines, rigging

Sheave Size (mm) Max Rope (mm) Working Load (kg) Breaking Load (kg)
28 8 150 600–750
38 10 230–370 800–950
