X1 - Vertical Windlass, Chrome Plated, 12V, 500-800W, Low Profile
€827.75

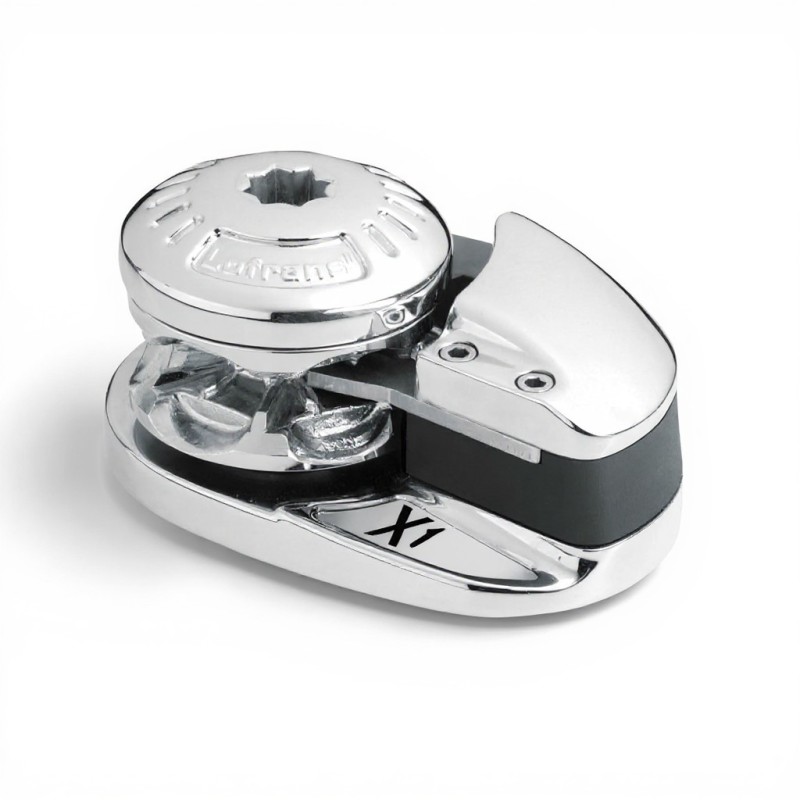

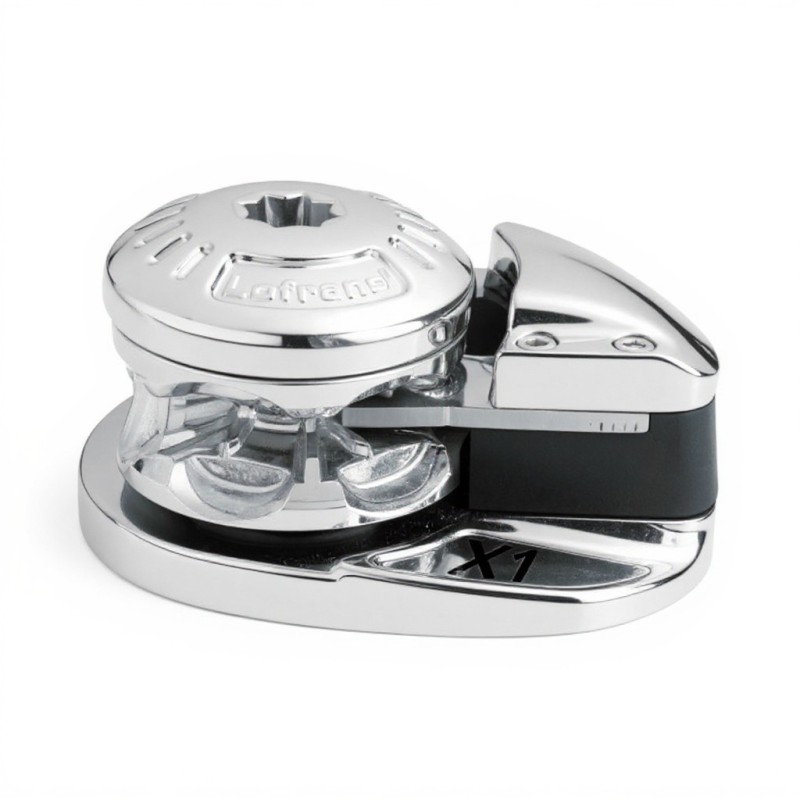

The Lofrans X1 vertical windlass is designed for safe and efficient anchoring on sailing and motor boats from 6 to 27 meters in length. The X1 series includes multiple motor power options and configurations for combined chain and rope operation. Chrome-plated bronze construction, precise mechanics and powerful electric motors ensure reliable performance, stable pulling force and long service life in demanding marine environments.
Motor size
Voltage
Gypsy

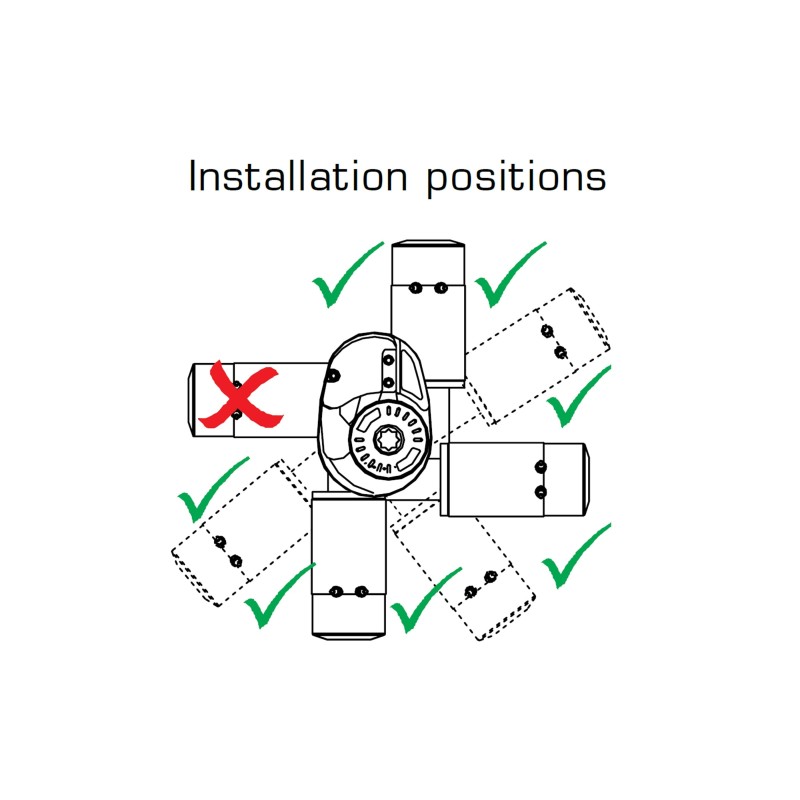

Lofrans X1 vertical windlass is designed for safe and efficient anchoring on sailing and motor boats. Its vertical configuration allows a clean below-deck installation while optimising available space.
The X1 series offers multiple power and capacity configurations suitable for different chain and rope sizes. Precision engineering, reliable power transmission and robust chrome-plated bronze construction ensure long-lasting performance in demanding marine conditions.
User manual:
Download user manual
Technical specifications
| Product code | 472880 | 473217 | 473002 |
|---|---|---|---|
| Model | X1 CRO 500W / 12V | X1 CRO 800W / 12V | X1 CRO 800W / 12V |
| Construction | Chrome-plated bronze | Chrome-plated bronze | Chrome-plated bronze |
| Chain | 6 mm ISO 4565 / DIN 766 | 6 mm ISO 4565 / DIN 766 | 8 mm ISO 4565 / DIN 766 |
| Rope | 10–12 mm, 3-strand | 10–12 mm, 3-strand | 12 mm, 3-strand |
| Line speed at working load | 23 m/min | 25 m/min | 25 m/min |
| Maximum speed | 26 m/min | 28 m/min | 28 m/min |
| Maximum pull | 630 kg | 700 kg | 700 kg |
| Motor power | 500 W | 800 W | 800 W |
| Voltage | 12 V | 12 V | 12 V |
| Type | Low profile | Low profile | Low profile |
| Weight | 11 kg | 13 kg | 13 kg |
| Working load | 95 kg | 100 kg | 100 kg |
