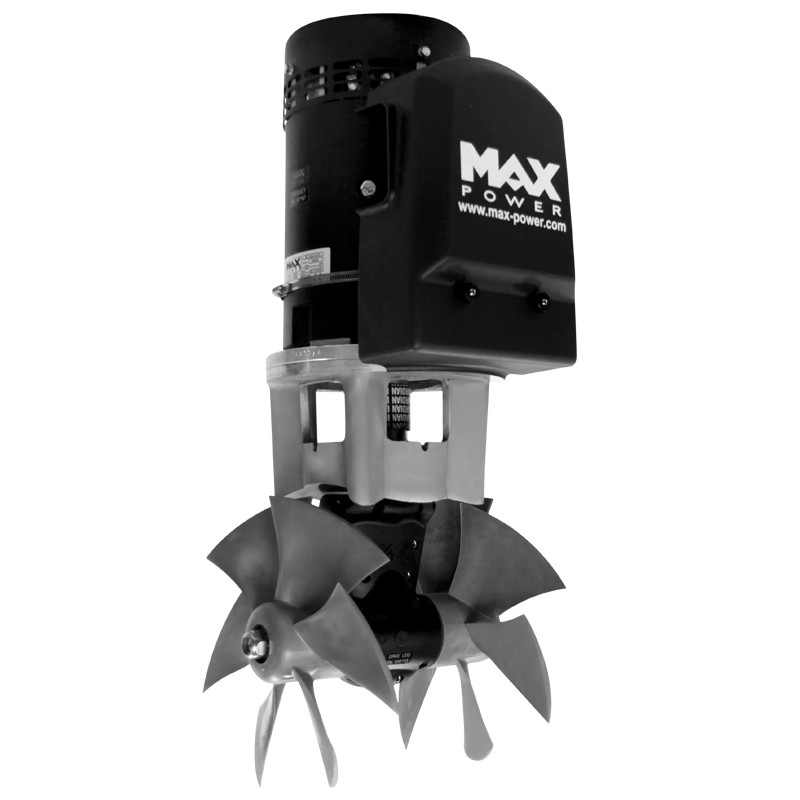

MAX POWER Tunnel Thruster CT 225, 24V, 250mm Tunnel, 250kgf, 14.96kW (20hp), Twin Propeller
€3,320.00
The Electric Tunnel Thruster CT 225 is the most powerful 250 mm electric tunnel thruster in the MAX POWER range, delivering up to 250 kg of thrust. Designed for motor yachts and deep-keeled sailing boats from 45 to 75 feet, it is widely fitted as standard on many yachts. Twin propellers, composite or bronze drive legs and robust construction ensure strong, precise and reliable manoeuvring.
The Electric Tunnel Thruster CT 225 is the most powerful 250 mm diameter electric tunnel thruster in the MAX POWER range. It is designed for motor yachts and deep-keeled sailing boats from 45 to 75 feet and is widely installed as standard equipment on many vessels.
Equipped with twin propellers, the CT 225 delivers a maximum thrust of up to 250 kg, providing excellent control and efficiency. It is available with patented composite or bronze drive legs, depending on hull material, and features a low-maintenance design.
The robust transmission system with case-hardened spiro-conical gears, purpose-built DC motors, electronic control boxes and high-specification DC contactors ensure safety, durability and reliable performance in demanding marine environments.
| Feature | Specification |
|---|---|
| Voltage | 24 V |
| Maximum thrust | 250 kg / 550 lbs |
| Number of propellers | 2 |
| Power | 14.96 kW / 20 hp |
| Weight | 37 kg |
| Tunnel diameter (A) | 270 mm |
| Dimensions (B / C / D) | 200 mm / 405 mm / 250 mm |
| Hull thickness (E) | 7 – 8 mm |
| Drive leg material | Composite or bronze |
