HydroTab Interceptors 300SR Moby Auto/NMEA
€1,890.00
Discover the new compact 300SR trim tab interceptor series, combining all the key advantages of HydroTab technology with the powerful next-generation Moby automatic controller.

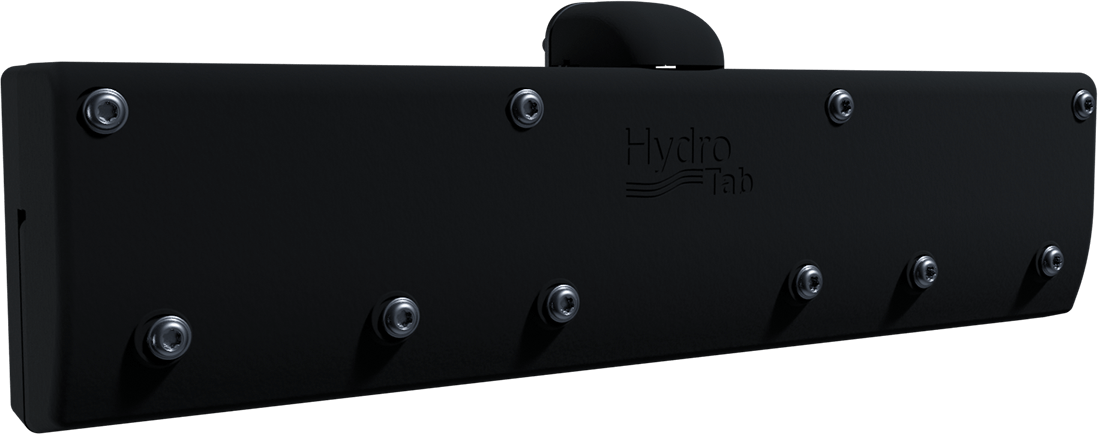

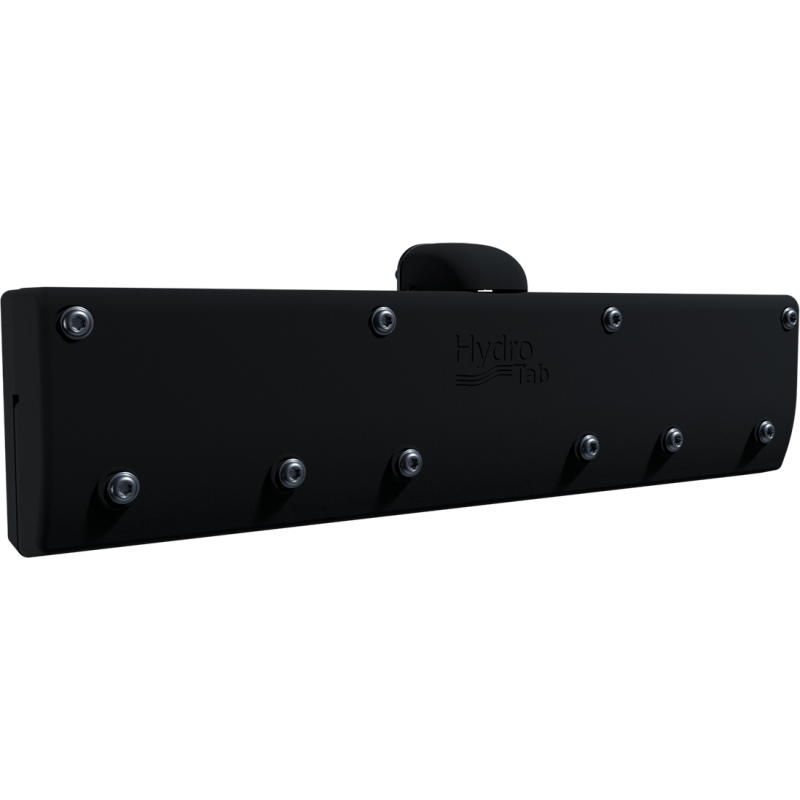

HydroTab 300SR automatic trim
HydroTab is a reliable, pneumatic automatic trim and heel control system, featuring powerful and very fast interceptors that deliver a much faster response time than standard trim tabs. In addition, the resulting stability is higher, making boating much safer and more comfortable!
Revolutionary pneumatic technology
The SR series operates using HydroTab’s revolutionary patented technology. The movement of the interceptor is controlled by a high-resistance air bladder that expands pneumatically. The patented technology allows the mechanism to be installed without the need for sealing or any parts sensitive to seawater (gears, shafts, electronic components, motors, etc.). In addition, this innovative pneumatic mechanism enables the application of high actuation forces to the interceptors. As a result, this simple yet innovative pneumatic mechanism makes HydroTab automatic trim virtually indestructible while enabling quick and easy installation! The lightweight yet strong design of the SR series automatic trim is achieved through the use of composite material, making it ideal for high speeds in open sea conditions.

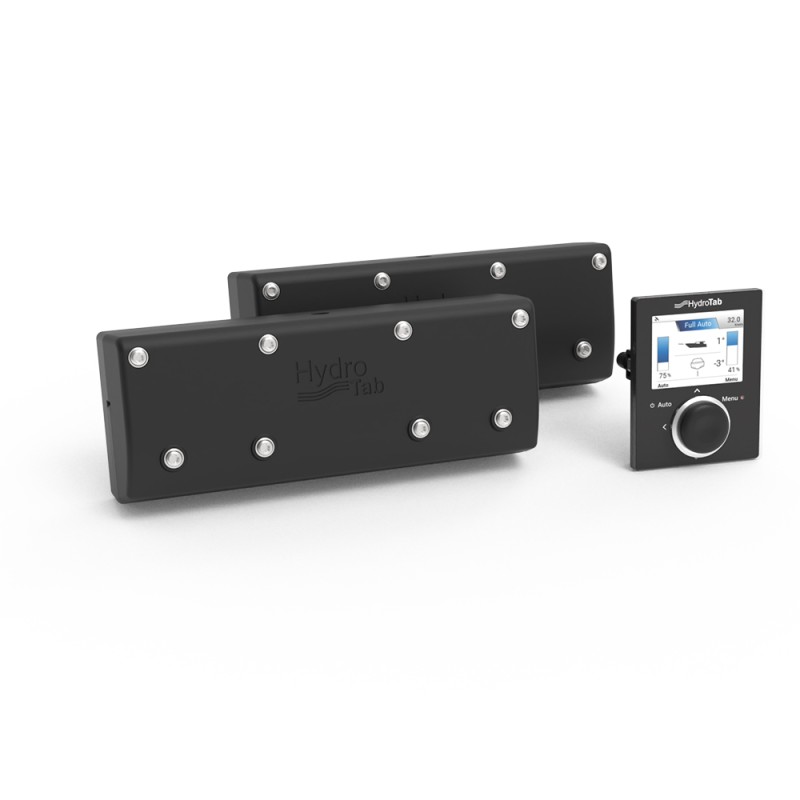

The MOBY control panel features built-in GPS, gyroscope and NMEA2000 network connection, giving you the ability to seamlessly connect the automatic trim to the NMEA2000 network and visualize interceptor deflection on displays such as Garmin, Raymarine, Simrad, Lowrance, B&G, Humminbird and Furuno.
Main features:
Faster planing resulting in 10–14% lower fuel consumption
Dynamic elimination of longitudinal (pitch) and lateral (roll) trim
Faster response than traditional trim tabs
Stroke up to 30 mm
Best for boats 5–15 m
Additional stabilization
Lightweight and robust design
Three types of controllers are available.
General information:
SKU: ASM-01290
Voltage: 12/24 V
Pneumatic cable length: 10 m
Length: 73 mm
Width: 300 mm
Height: 116 mm

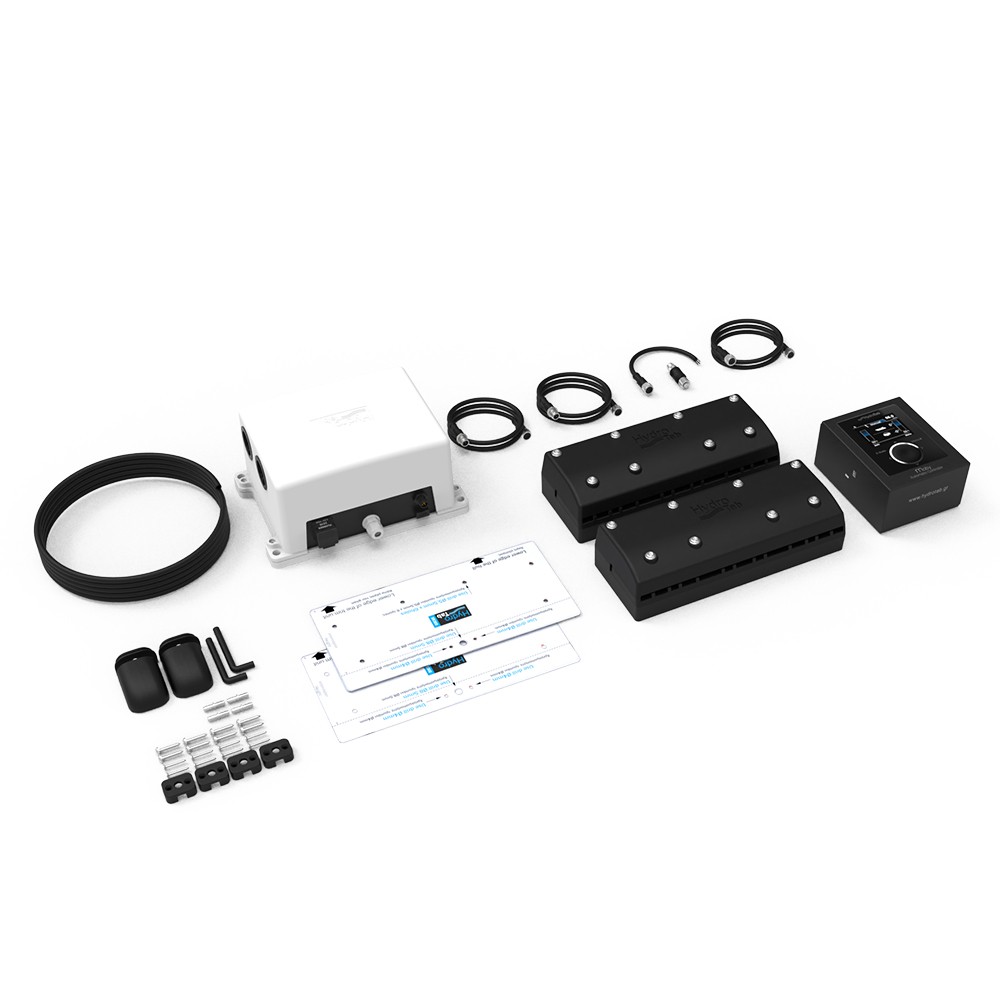

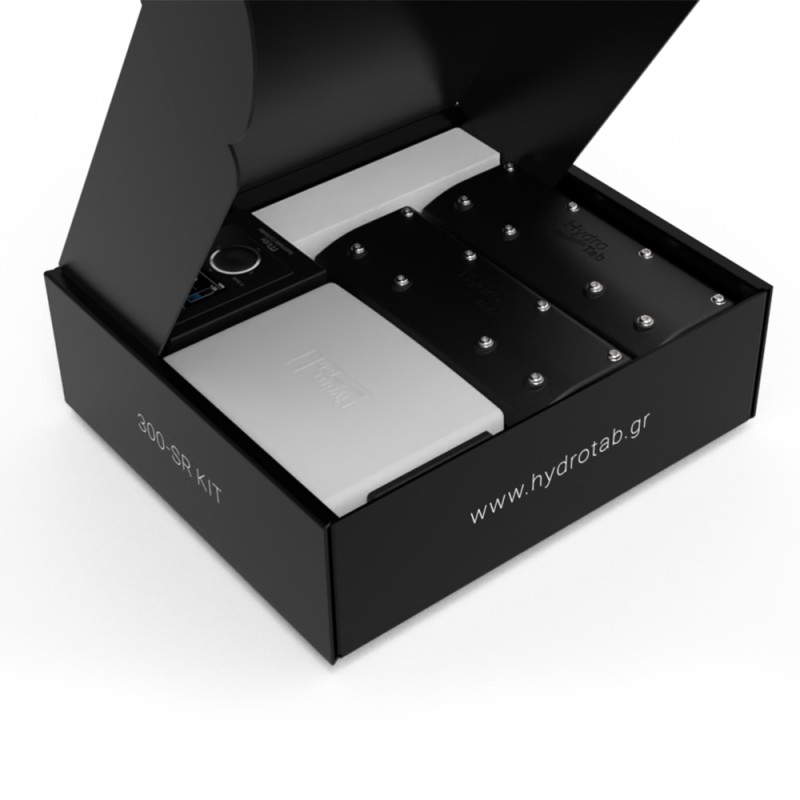

Kit includes:
2 interceptors 300 mm
Control panel
Installation templates
Pneumatic cable installation kit
NMEA2000 compressor
Pneumatic cable 10 m
NMEA2000 cables
