Humminbird Fishfinder Helix 7 CHIRP MDI GPS G4 Marine electronics and navigation

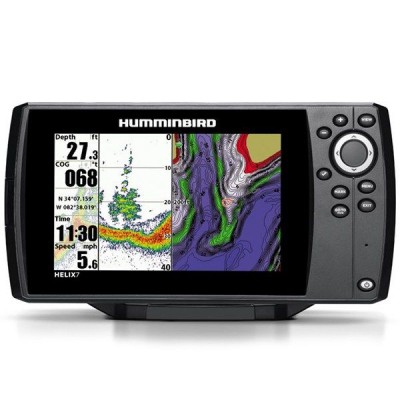

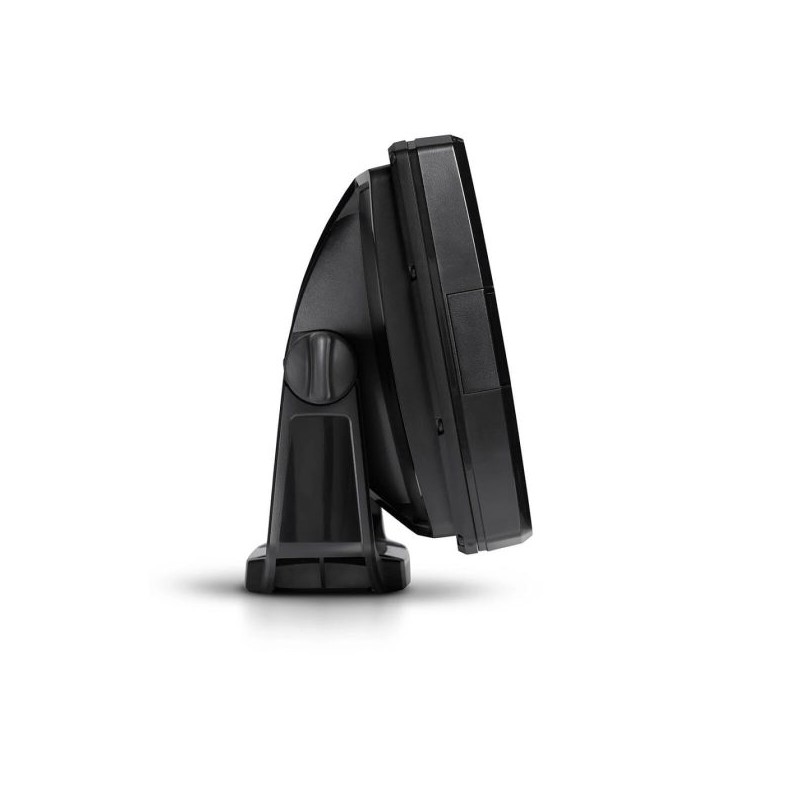

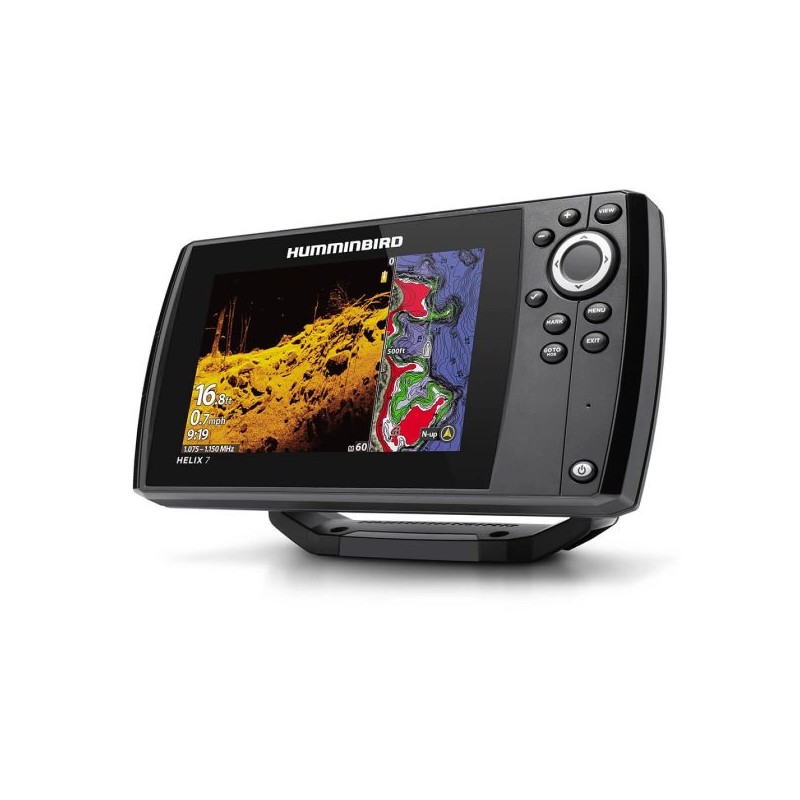

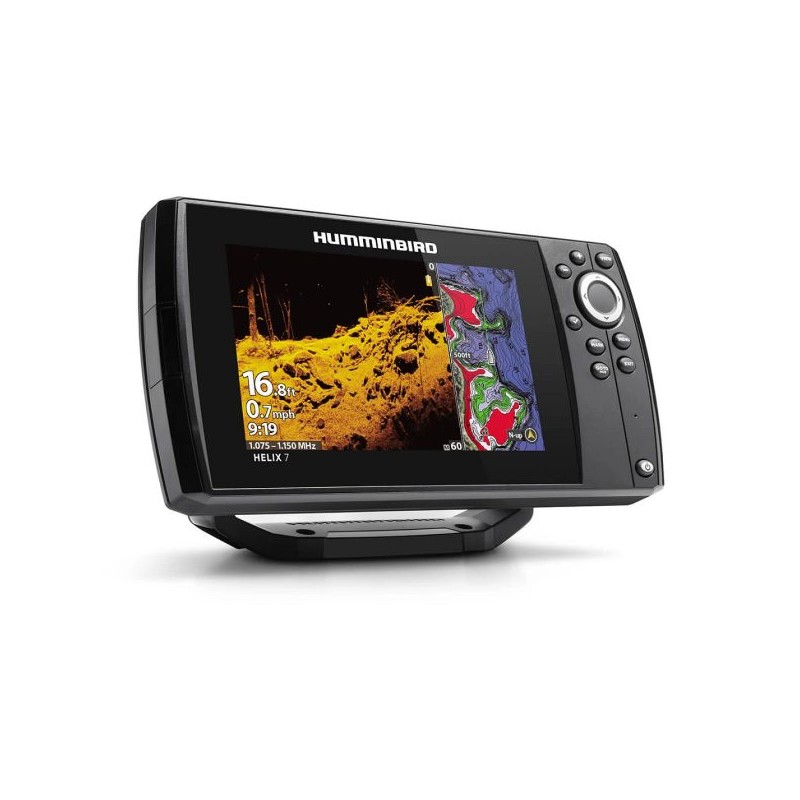

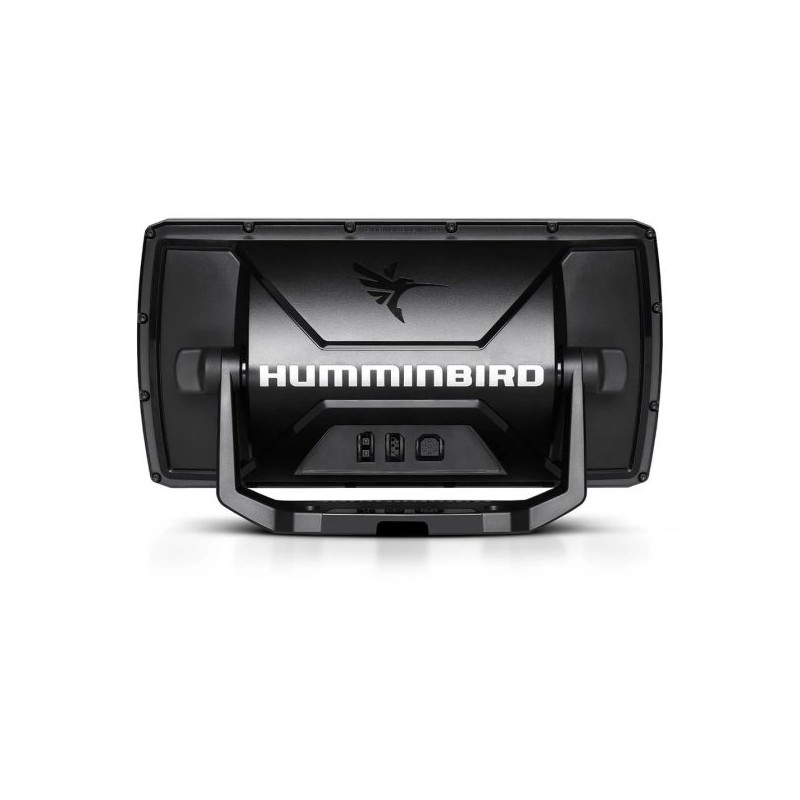

Humminbird Fishfinder Helix 7 CHIRP MDI GPS G4

SKU 40223 Category Marine electronics and navigation

€800.00

Humminbird Helix 7 CHIRP MEGA DI GPS G4 fishfinder with 7” display, MEGA Down Imaging sonar and built-in GPS for precise fish and structure detection.

Humminbird Helix 7 CHIRP MEGA DI GPS G4 is a high-performance fishfinder and chartplotter designed for anglers who demand precision, clarity, and reliability on the water. Combining advanced sonar technologies with intuitive controls, this device delivers exceptional underwater visibility and navigation capabilities.

Equipped with MEGA Down Imaging and Dual Spectrum CHIRP sonar, the Helix 7 provides crystal-clear views of fish, structures, and bottom composition. The large 7” high-resolution display (1024x600) ensures excellent readability in all lighting conditions, allowing you to interpret data quickly and accurately.

Why choose the Helix 7 CHIRP MEGA DI GPS G4?

🔍 MEGA Down Imaging – up to 3x more detail than standard sonar
🎣 Dual Spectrum CHIRP – superior fish detection and target separation
🗺️ Built-in GPS & Basemap – accurate navigation and waypoint marking
📍 AutoChart Live – create real-time maps of your fishing spots
💡 User-friendly keypad control – fast and reliable operation in all conditions

Key Features

MEGA Down Imaging sonar (1075–1150 kHz)
Dual Spectrum CHIRP sonar with wide and narrow modes
Internal GPS with Humminbird Basemap
AutoChart Live for real-time mapping
Compatible with Navionics, LakeMaster and CoastMaster charts
Sonar recording and screen capture functionality

Technical Specifications

Model	Helix 7 CHIRP MEGA DI GPS G4
Item Number	411610-1
Display Size	7”
Resolution	1024 x 600
Sonar Type	Dual Spectrum CHIRP + MEGA Down Imaging
Supported Frequencies	50 / 83 / 200 / 455 / 800 kHz & 1.2 MHz (MEGA)
Depth Capability	Up to 1200 ft (standard), 3500 ft (optional)
Down Imaging Depth	400 ft (455 kHz), 75 ft (MEGA)
GPS	Built-in with Basemap
Mapping Compatibility	Navionics, LakeMaster, CoastMaster
Memory	Single Micro SD slot
Power Input	10.8 – 20 V DC
Power Output	4000W PTP / 500W RMS
Control Type	Keypad
Mount Type	Gimbal mount
Transducer	XNT 9 HW MDI 75 T (included)
