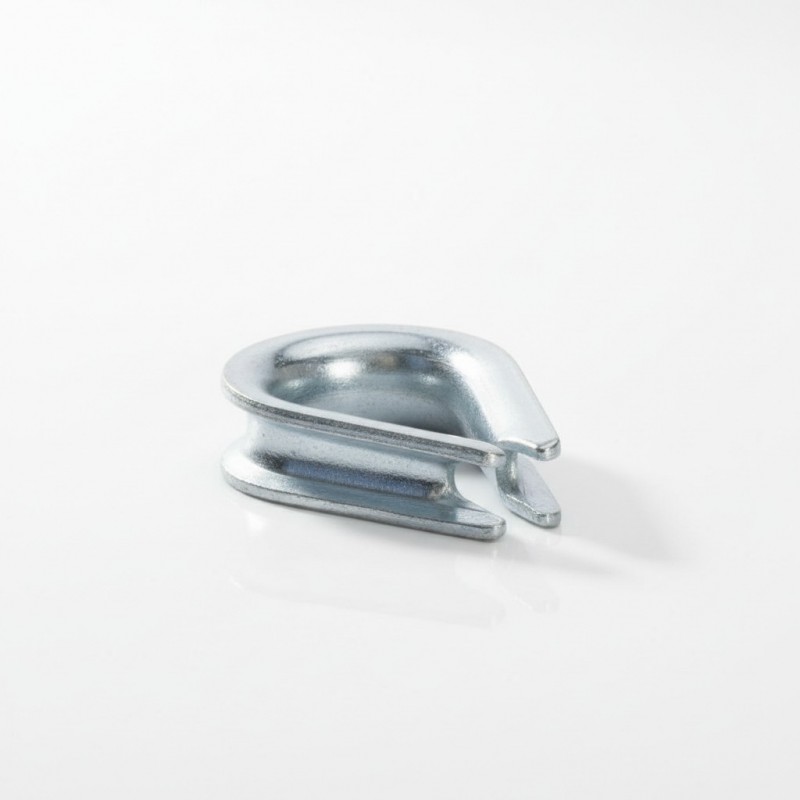

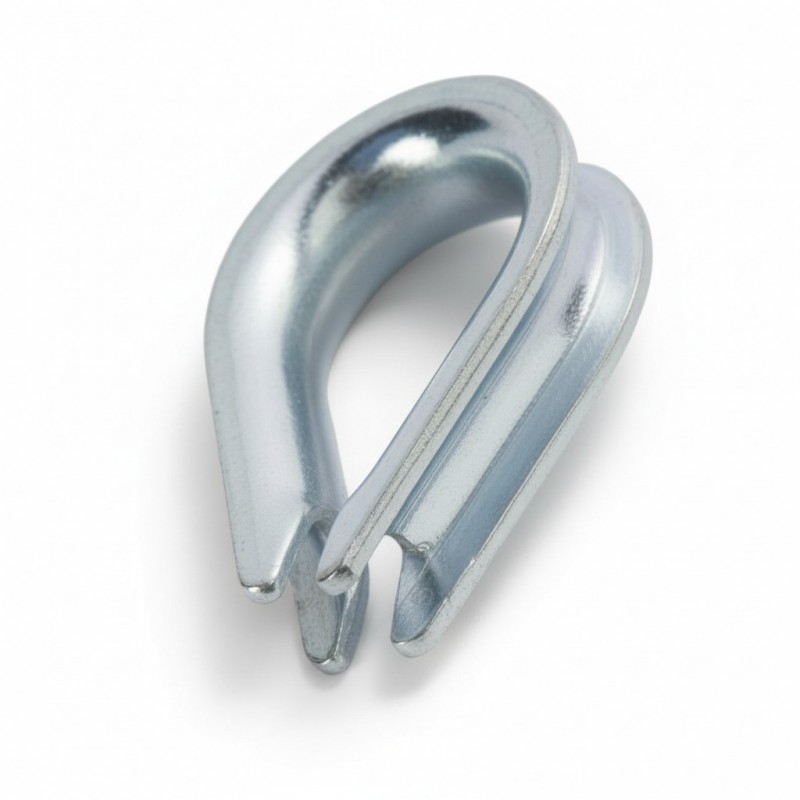

Marine Galvanized Steel Thimbles
€0.14
Marine stainless steel thimbles for wire ropes, available in AISI 316 stainless steel and hot-dip galvanized steel. Designed to protect wire from abrasion and deformation while ensuring proper load distribution.
For rope Ø

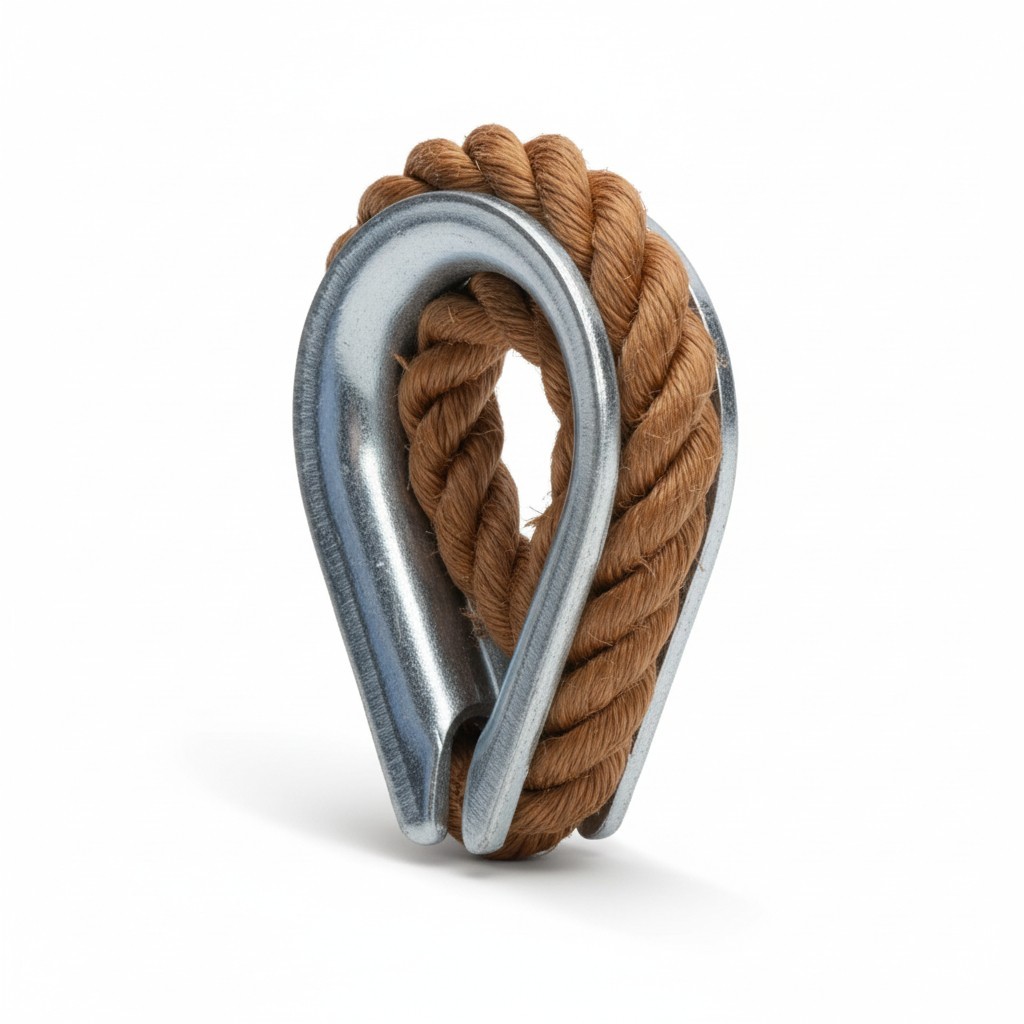

Marine Stainless Steel Thimbles are designed to protect wire ropes from wear, deformation and abrasion, ensuring smooth load distribution and extended service life in marine and industrial rigging applications.
The product is available in two material options: Stainless Steel AISI 316 (Inox) and Hot-Dip Galvanized Steel. All variants are selectable via dropdown menu by material and wire diameter.
Key Features
- Suitable for marine and industrial wire rope applications
- Prevents abrasion and deformation of wire ropes
- Ensures proper load distribution
- Available in AISI 316 stainless steel and hot-dip galvanized steel
- High corrosion resistance for harsh environments
- Wide range of sizes available
Specifications
Hot-Dip Galvanized Steel Thimbles
| Code | For wire | L | W | Material |
|---|---|---|---|---|
| 99378 | 2 mm | 11 mm | 7 mm | Hot-dip galvanized steel |
| 99379 | 3 mm | 15 mm | 9 mm | Hot-dip galvanized steel |
| 99380 | 4 mm | 18 mm | 11 mm | Hot-dip galvanized steel |
| 99381 | 5 mm | 20 mm | 14 mm | Hot-dip galvanized steel |
| 99382 | 6 mm | 23 mm | 15 mm | Hot-dip galvanized steel |
| 99383 | 8 mm | 27 mm | 17 mm | Hot-dip galvanized steel |
| 99384 | 10 mm | 38 mm | 24 mm | Hot-dip galvanized steel |
| 99385 | 12 mm | 50 mm | 29 mm | Hot-dip galvanized steel |
| 99386 | 14 mm | 62 mm | 34 mm | Hot-dip galvanized steel |
| 99387 | 16 mm | 64 mm | 37 mm | Hot-dip galvanized steel |
| 99388 | 18 mm | 70 mm | 40 mm | Hot-dip galvanized steel |
| 99389 | 20 mm | 75 mm | 45 mm | Hot-dip galvanized steel |
| 99390 | 22 mm | 80 mm | 47 mm | Hot-dip galvanized steel |
| 99391 | 25 mm | 95 mm | 57 mm | Hot-dip galvanized steel |
| 557225 | 28 mm | 110 mm | 70 mm | Hot-dip galvanized steel |
| 5425022 | 32 mm | 145 mm | 90 mm | Hot-dip galvanized steel |
