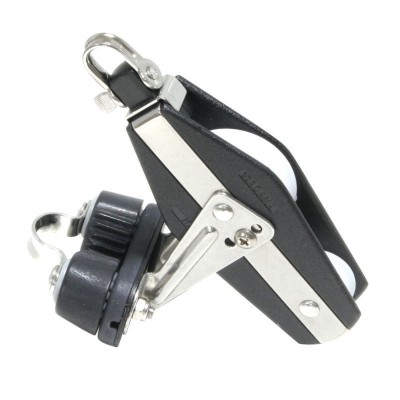

Fiddle Ball Bearing Block with Ball Bearing Cam Cleat, Universal 3-Way Head Blocks for rope diam 10mm, ball bearing diam D45mm

Fiddle Ball Bearing Block with Ball Bearing Cam Cleat, Universal 3-Way Head

SKU 92543 Category Blocks for rope diam 10mm, ball bearing diam D45mm
€66.75

Fiddle ball bearing block with cam cleat and universal 3-way head, designed for precise rope control, load reduction, and efficient trimming in sailing systems.

Add to Cart

Fiddle ball bearing block with cam cleat and universal 3-way head is designed for advanced rope handling and load control in sailing applications.

The fiddle configuration combines two sheaves of different diameters, allowing efficient mechanical advantage in trimming systems. The integrated ball bearing cam cleat enables secure rope locking and easy release under load.

The universal 3-way head allows flexible positioning depending on load direction, improving efficiency and reducing rope wear. The block is constructed from Delrin® cheeks, sheaves and ball bearings, while load-bearing parts are made from AISI 316 stainless steel for excellent corrosion resistance.

Features

  • fiddle (violin) double sheave configuration
  • integrated ball bearing cam cleat
  • universal 3-way head for flexible positioning
  • smooth rotation with reduced friction
  • high load control and easy rope locking
  • Delrin® sheaves and ball bearings
  • AISI 316 stainless steel components

Technical Specifications

Type Fiddle ball bearing block with cam cleat
Head Universal 3-way head
Sheave Configuration Fiddle (double sheave)
Sheave Size Approx. 45 mm
Max Rope 10 mm
Working Load Approx. 370 kg
Breaking Load Approx. 950 kg
Material Delrin® (sheaves, ball bearings)
Metal Parts AISI 316 stainless steel
