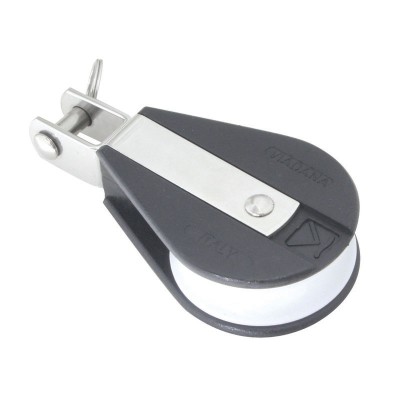

Single Ball Bearing Block with Swivel Blocks for rope diam 10mm, ball bearing diam D45mm

Single Ball Bearing Block with Swivel

SKU 96120 Category Blocks for rope diam 10mm, ball bearing diam D45mm
€0.00

Single ball bearing block with swivel designed for smooth rope handling, flexible positioning, and reduced friction in sailing systems.

Add to Cart

Single ball bearing block with swivel is designed for efficient rope handling and flexible positioning in sailing and marine systems.

The swivel head allows the block to rotate freely under load, ensuring optimal alignment with the rope direction and reducing wear. This makes it ideal for dynamic applications such as sheets, control lines and trimming systems.

The block features a Delrin® sheave and ball bearing system for smooth rotation and minimal friction. Load-bearing components are made of AISI 316 stainless steel, providing durability and corrosion resistance in marine environments.

Features

  • single ball bearing block with swivel
  • 360° rotation for flexible positioning
  • smooth operation with reduced friction
  • Delrin® sheave and ball bearings
  • AISI 316 stainless steel components
  • compact and lightweight construction
  • ideal for sailing and rope systems

Technical Specifications

Type Single ball bearing block with swivel
Head Swivel (rotating)
Material Delrin® (sheave, ball bearings)
Metal Parts AISI 316 stainless steel
Application Sailing, sheets, control lines, rigging

Sheave Size (mm) Max Rope (mm) Working Load (kg) Breaking Load (kg)
38–45 10 230–370 800–950
