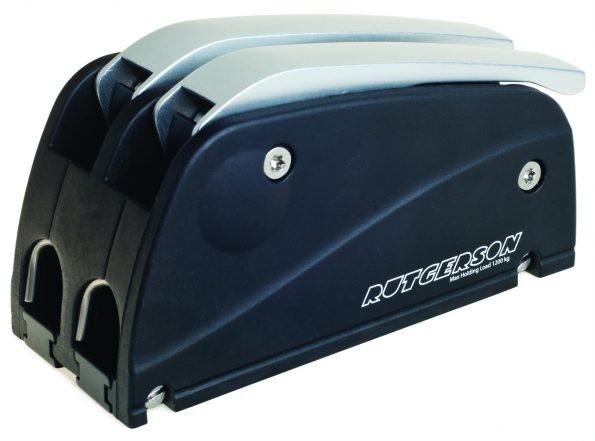

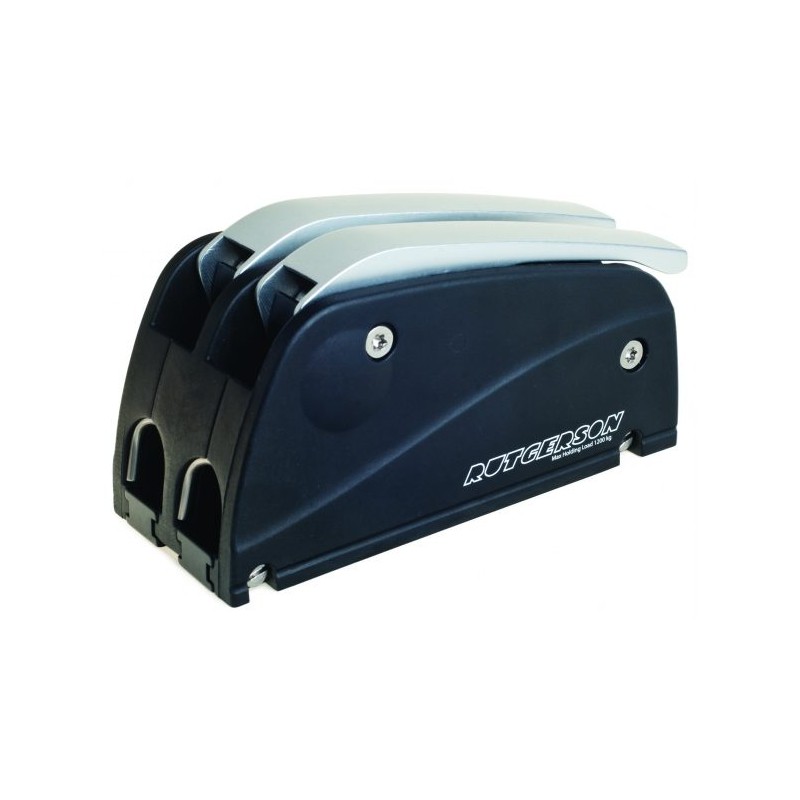

Double Rope Clutch RC120X
€425.00
Rutgerson RC120 double rope clutch allows control of two lines using a single winch, improving efficiency and deck organization. Designed for 10–16 mm ropes, it provides strong holding power and smooth handling even under heavy loads thanks to its advanced mechanism and low-friction design.
The Rutgerson RC120 double rope clutch is a robust and reliable solution for managing lines on sailing yachts and larger vessels. This double configuration allows efficient control of two ropes through a single winch, optimizing deck layout and operation.
The RC120X version is designed for rope diameters between 10–16 mm and is optimized for modern high-performance lines such as Dyneema. A needle bearing system ensures smooth and easy handling even under very high loads.
An integrated low-friction sheave allows the rope to run smoothly while reducing wear, improving performance and longevity.
The housing is made from high-strength composite, while the mounting plate and cam are constructed from anodized aluminium, ensuring durability in harsh marine environments.
| Manufacturer | Rutgerson |
| Product type | Rope clutch |
| Model | RC120X Double |
| Material | Composite + anodized aluminium |
| Capacity | 2 lines |
| Application | Multi-line control via single winch |
| Features | Low-friction sheave, needle bearing |
| Specification | S601202 (41558) |
| Rope diameter (mm) | 10 - 16 |
| Max holding load (kg) | 1200 |
| Number of lines | 2 |
| Length (mm) | 160 |
| Height (mm) | 81 |
| Width (mm) | 73 |
| Hole spacing (mm) | 70 / 85 |
| Bolts | M6 |
| Weight (g) | 1119 |
