Anchor Shackle, Type Ω, Inox 316
€1.25
Anchor Shackle, Type Ω, Inox 316 is a premium marine-grade connector manufactured from AISI 316 stainless steel, offering excellent corrosion resistance and long-term reliability in saltwater environments.

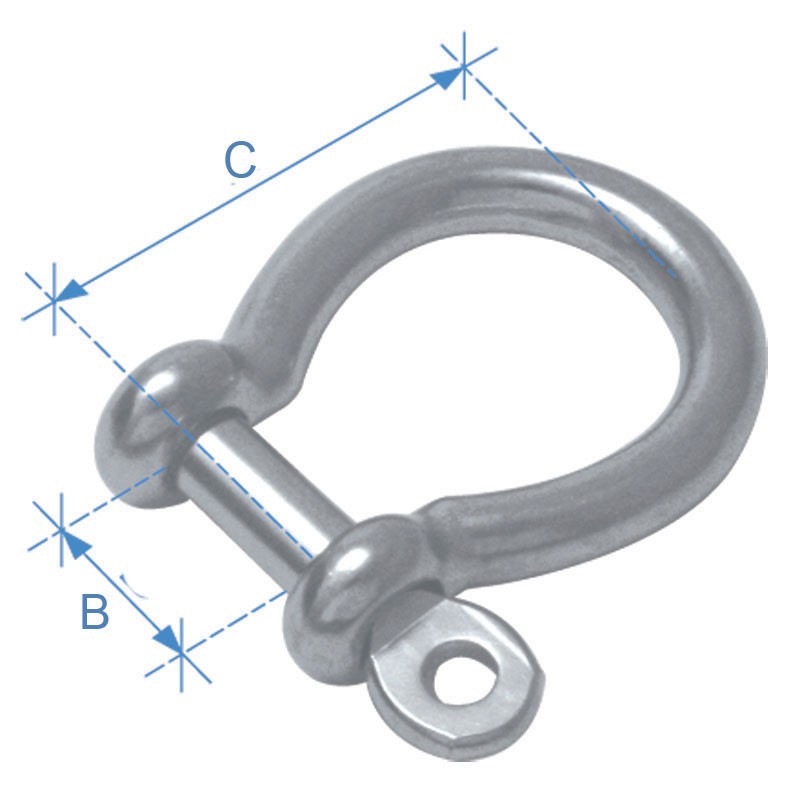

Shackle Dimensions (mm)
Anchor Shackle, Type Ω, Inox 316 is designed for demanding marine and nautical applications where superior corrosion resistance is required. Manufactured from AISI 316 stainless steel, it is ideally suited for use in saltwater environments and ensures long-term reliability.
The omega shape allows a wider load distribution compared to D shackles, making it suitable for anchoring systems, chains, ropes and deck hardware. The Working Load Limit (W.L.L.) is defined according to shackle size and must not be exceeded.
Technical characteristics
| Feature | Description |
|---|---|
| Shape | Omega shape (Anchor shackle, Type Ω) |
| Material grade | AISI 316 stainless steel |
| Corrosion resistance | Excellent resistance to seawater and marine atmosphere |
| Pin type | Screw pin |
| Typical use | Anchoring, rigging, deck and marine hardware |
Specifications table
| Code | D (mm) | A (mm) | B (mm) |
|---|---|---|---|
| 90433 | 4 | 16 | 8 |
| 91200 | 5 | 20 | 10 |
| 91201 | 6 | 24 | 12 |
| 91202 | 8 | 32 | 16 |
| 91203 | 10 | 40 | 20 |
| 91204 | 12 | 48 | 24 |
| 91205 | 13 | 52 | 26 |
| 91206 | 14 | 56 | 28 |
| 91207 | 16 | 64 | 32 |
