Shackle, Type D, with Locking Pin, AISI 316 Swivels

Shackle, Type D, with Locking Pin, AISI 316

SKU 91863 Category Swivels
€1.90

Shackles with captive pin made of AISI 316 stainless steel are designed for secure and reliable connections in marine and industrial environments. The captive pin prevents loss of the pin during installation and use. Excellent resistance to corrosion and seawater makes them ideal for boats, marinas and demanding outdoor conditions.

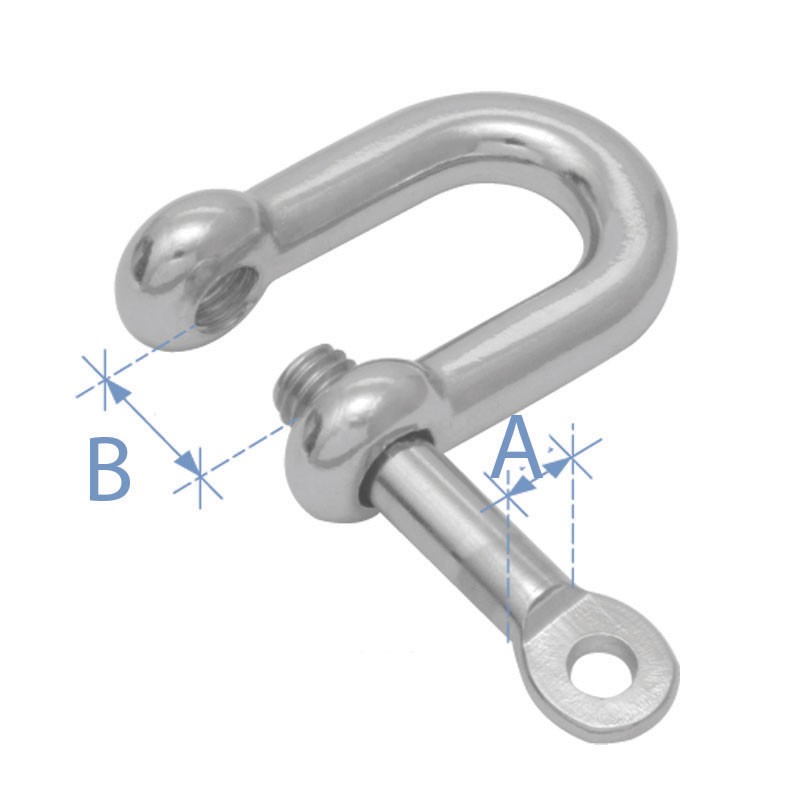

Shackle Dimensions (mm)
Add to Cart

Shackles with captive pin are manufactured from high-quality AISI 316 stainless steel, offering excellent resistance to corrosion, saltwater and harsh environmental conditions. The captive pin design prevents the pin from being lost during handling or operation.

They are suitable for marine, shipyard and industrial applications where safe and durable connecting hardware is required.

Product specifications

Material AISI 316 Stainless Steel
Pin type Captive pin
Corrosion resistance Seawater & harsh environments
Application Marine, industrial use

Available sizes

Code Diameter (D) Length L (mm) Width B (mm)
91863 5 mm 20 10
91864 6 mm 24 12
91865 8 mm 32 16
92145 10 mm 40 20
97000 12 mm 48 24
