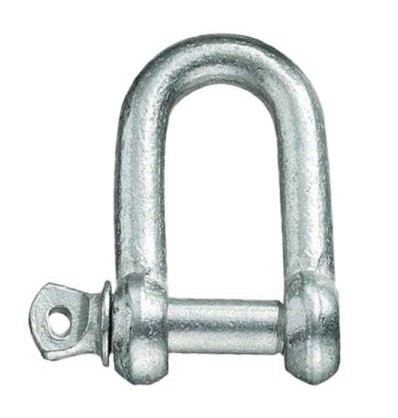

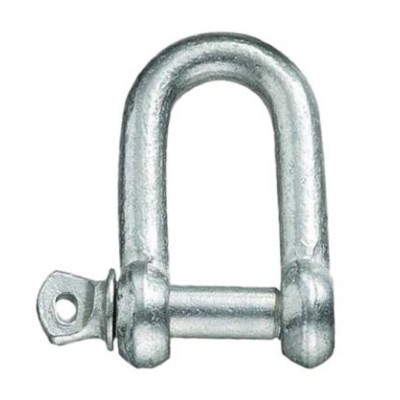

D Shackle, galvanized
€8.35
D Shackle, galvanized is a reliable connecting component for lifting and rigging applications. The hot-dip galvanized (HDG) finish improves corrosion resistance, while the Working Load Limit (W.L.L.) is defined by size.
Shackle Dimensions (mm)
D Shackle, galvanized is manufactured from high tensile steel and designed for demanding rigging and marine applications where strength and safety are essential. The hot-dip galvanized (HDG) finish provides long-lasting corrosion protection in marine and industrial environments.
This shackle follows the U.S. type design and meets the performance requirements of U.S. Federal specification RR-C-271. The Working Load Limit (W.L.L.) is clearly defined for each size and must not be exceeded during use.
Main product features
| Characteristic | Specification |
|---|---|
| Design | Dee / D shackle construction |
| Base material | High tensile steel |
| Surface finish | Hot-dip galvanized (HDG) |
| Performance standard | U.S. Federal specification RR-C-271 |
| Pin configuration | Screw pin |
| Typical application | Rigging, lifting operations, marine hardware |
Specifications table
| Code | Size | W.L.L. |
|---|---|---|
| 45529 | 5/8" | 3 1/4 ton |
| 45530 | 3/4" | 4 3/4 ton |
| 45531 | 7/8" | 6 1/2 ton |
| 45532 | 1" | 8 1/2 ton |
| 45533 | 1-1/8" | 9 1/2 ton |
