WINDLASS H. RAZZA INOX 800W/12V 6-3/16"BBB Horizontal Windlasses

WINDLASS H. RAZZA INOX 800W/12V 6-3/16"BBB

SKU 636738 Category Horizontal Windlasses
€1,093.50

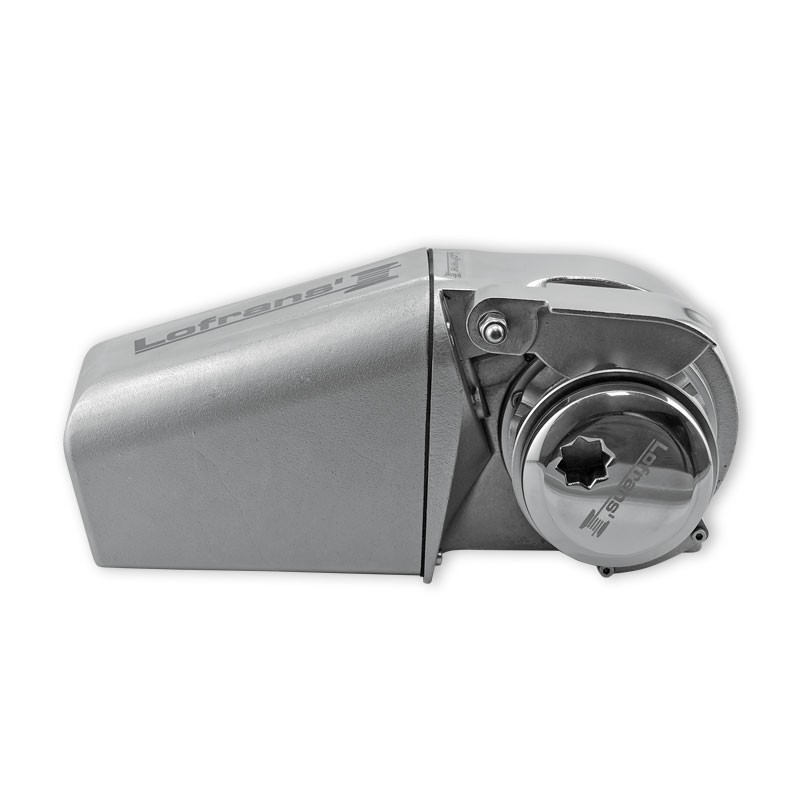

The Lofrans Razza is a compact horizontal electric anchor windlass made of AISI 316 stainless steel, designed for reliable anchoring on small and medium-sized boats. It features manual chain release, IP67 motor protection and a pre-installed chain counter sensor. Model-specific specifications are listed in the table.

Motor size
Voltage
Gypsy
Add to Cart

The Lofrans Razza is a compact horizontal electric anchor windlass designed for efficient and reliable anchoring on sailing yachts and motor boats. Its AISI 316 stainless steel construction provides excellent corrosion resistance and long-lasting performance in marine environments, while the compact design allows easy installation in limited spaces.

The windlass features manual chain release, an IP67-rated motor cover and a pre-installed chain counter sensor with magnet. Chain and rope management is ensured by a spring-loaded finger, and the unit is supplied with a rocker switch and standard installation equipment. All technical differences between models are shown in the table below.

Features

  • Horizontal electric anchor windlass
  • AISI 316 stainless steel body
  • Manual chain release
  • IP67 motor protection
  • Pre-installed chain counter sensor
  • Spring-loaded finger for chain & rope management
  • Supplied with rocker switch

Technical specifications

Code 636740 636699 636738
Description 800W 12V 6mm BBB 800W 12V 8mm BBB 500W 12V 6mm BBB
Motor power 800 W 800 W 500 W
Voltage 12 V
Maximum pull 900 kg 900 kg 630 kg
Working load 125 kg 125 kg 95 kg
Amps (A) 80 80 65
Line speed at W.L. 20 m/min 20 m/min 18 m/min
Max line speed 25 m/min 25 m/min 24 m/min
Gypsy – chain 6 mm ISO 4565 8 mm ISO/DIN 766 6 mm ISO 4565
Gypsy – rope 10–12 mm 12 mm 10–12 mm
Net weight 13.5 kg
