WIN.H CAYMAN88 ALU STB 12V 1,0KW 04* Horizontal Windlasses

WIN.H CAYMAN88 ALU STB 12V 1,0KW 04*

SKU 220279 Category Horizontal Windlasses
€1,556.30

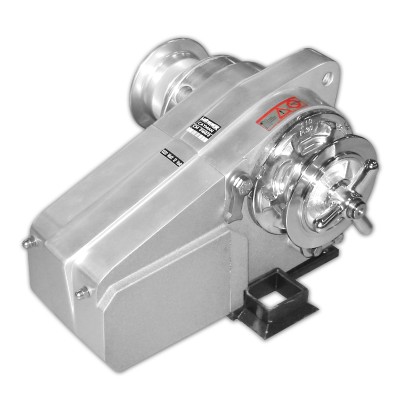

The Lofrans Cayman is a horizontal electric anchor windlass with a marine-grade anodised aluminium body, designed for reliable anchoring in harsh marine conditions. It features independent gypsy and drum operation, manual chain release and manual override, an IP67 motor cover, optional automatic free-fall, and a control box included in the package. Multiple versions are available; model-specific specifications are listed in the table.

Motor size
Voltage
Gypsy
Add to Cart

The Lofrans Cayman is a horizontal electric anchor windlass engineered for safe and reliable anchoring on sailing yachts and motor boats. Its marine-grade anodised aluminium construction provides durability and corrosion resistance in demanding marine environments, while the design supports controlled and stable anchor handling.

A key advantage of the Cayman range is the independent operation of the gypsy and the drum, making it easier to manage different deck and anchoring configurations. Service and safety functions such as manual chain release and manual override improve operational control, while the IP67 motor cover enhances protection against water exposure. The Cayman series is available in multiple versions; all model-specific technical data are shown in the table.

Features

  • Horizontal electric anchor windlass
  • Marine-grade anodised aluminium body
  • Independent gypsy and drum operation
  • Manual chain release
  • Manual override
  • IP67 motor cover
  • Optional automatic free-fall
  • Control box included

Technical specifications

Code 220279 419732 600165 600180
Drive G+D (With Drum)
Motor power 1000 W
Voltage 12 V 12 V 12 V 24 V
Chain 8 mm
ISO/DIN		 10 mm
ISO		 10 mm
DIN		 10 mm
DIN
Speed (W.L.) 16 m/min 16 m/min 16 m/min 17 m/min
Max speed 32 m/min 32 m/min 32 m/min 33 m/min
Max pull 1250 kg 1250 kg 1250 kg 1325 kg
Weight 25 kg
Amps (A) 150 150 150 80
Breaker 187333 187333 187333 187332
Working load 170 kg
