WDL H. S. ERC. W.ALU T.B G+D 5500W/400V 16mm
€20,518.45

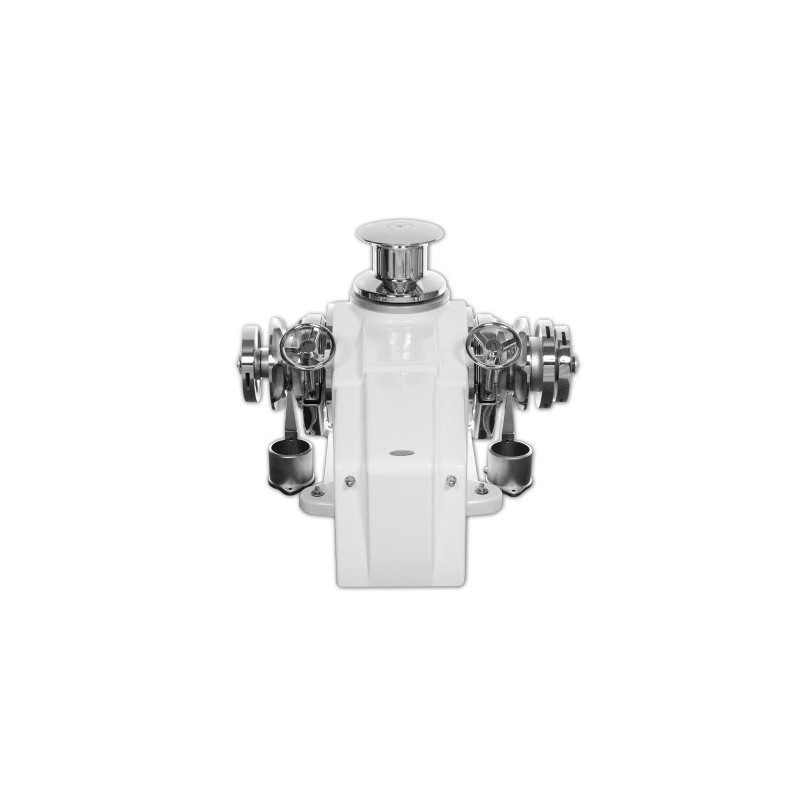

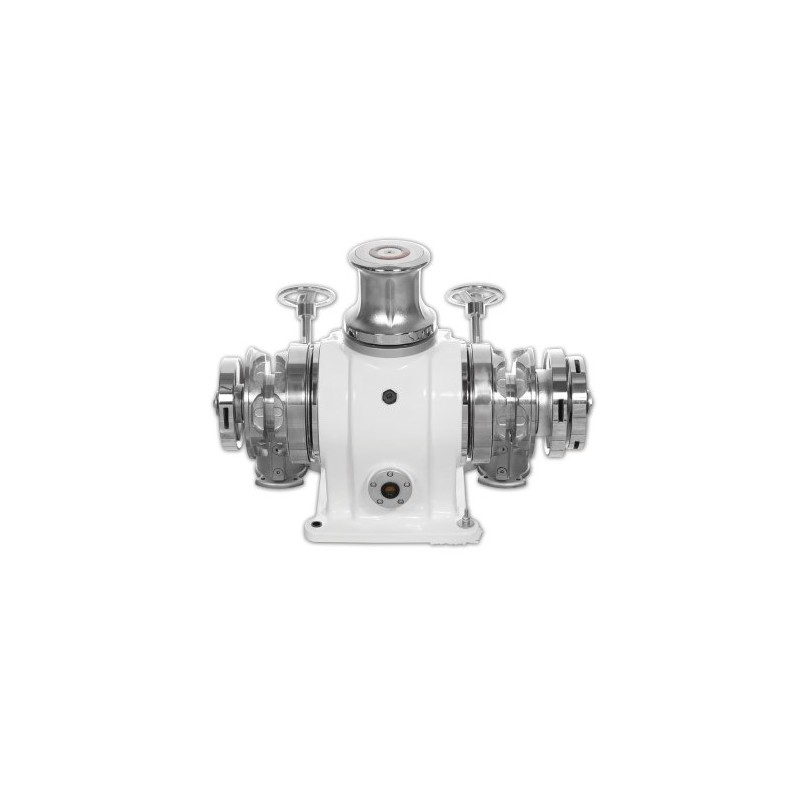

LOFRANS SUPER ERCOLE Electric Horizontal Windlass is a heavy-duty anchoring solution designed for professional vessels requiring high power and continuous-duty performance. This Type B electric version features a marine-grade white aluminium body, a powerful 5500W electric motor with 400V power supply, and compatibility with 16 mm anchor chain.
The LOFRANS SUPER ERCOLE Electric Horizontal Windlass – Model 602504 is engineered for intensive anchoring operations on professional and large commercial vessels. Constructed from marine-grade white aluminium, it provides excellent corrosion resistance, structural strength, and long-term durability in harsh marine environments.
This configuration represents the Type B electric version with gearbox, equipped with a 5500W electric motor powered by a 400V AC system, and designed for use with a 16 mm anchor chain. The windlass supports independent gypsy and drum operation, manual chain release, and manual override, ensuring precise control and safe anchoring even under heavy loads.
Main Features
- Marine-grade white aluminium construction
- Heavy-duty gearbox for continuous professional use
- Independent gypsy and drum operation
- Manual chain release
- Manual override
- IP67 motor protection
Technical Specifications
| Model | 602504 |
| Windlass Type | Horizontal |

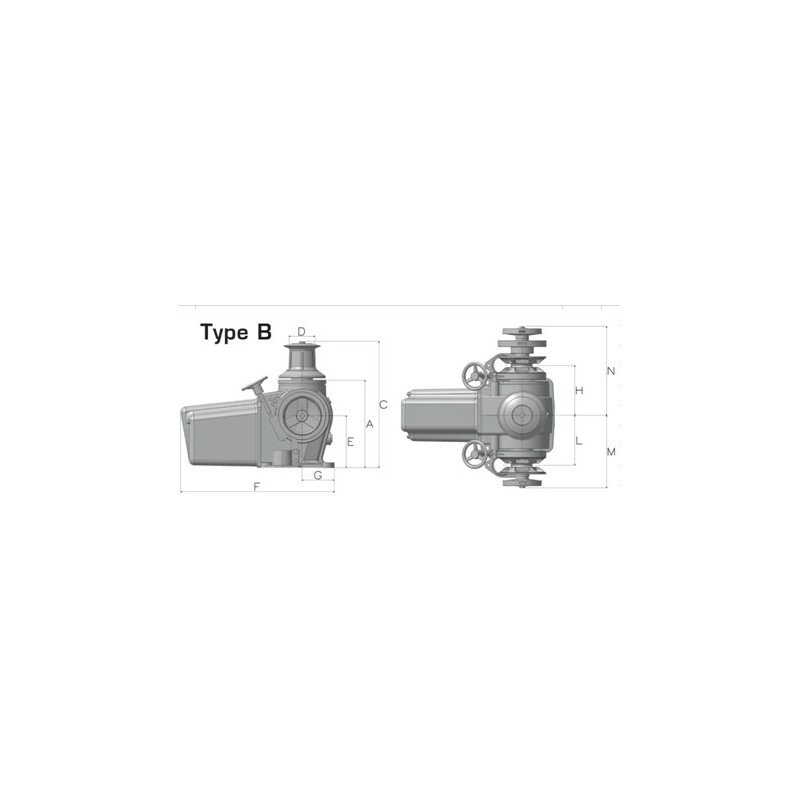

| Version | Type B |
| Chain Size | 16 mm |
| Power Supply | 400V AC |
| Motor Power | 5500 W |
| Maximum Pull | 5500 kg |
| Line Speed (Working Load / Max) | 17 / 17 m/min |
| Operation | Gypsy & Drum |
| Net Weight | 235 kg |
| Other versions available on request | |
