WDL H. TIGRES ALU G+D 1500W/12V 8-5/16''BBB Horizontal Windlasses
Previous
Next
WDL H. TIGRES ALU G+D 1500W/12V 8-5/16''BBB Horizontal Windlasses

WDL H. TIGRES ALU G+D 1500W/12V 8-5/16''BBB

SKU 418407 Category Horizontal Windlasses
€1,625.20

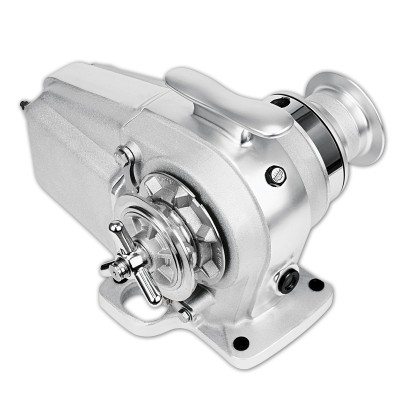

The Lofrans Tigres is a heavy-duty horizontal electric anchor windlass manufactured from marine-grade anodised aluminium. Designed for demanding sailing yachts and motor boats, it offers independent gypsy and drum operation, multiple voltage options and optional automatic free-fall. Model-specific specifications are listed in the table.

Motor size
Voltage
Gypsy
Add to Cart

The Lofrans Tigres is a high-performance horizontal electric anchor windlass designed for demanding sailing yachts and motor boats. Manufactured from marine-grade anodised aluminium, it provides excellent corrosion resistance and long-term durability in harsh marine environments, while the robust construction ensures stable and controlled operation under heavy loads.

The Tigres range features independent gypsy and drum operation, offering increased flexibility when handling chain and rope configurations. Manual chain release and manual override enhance operational safety and control, while the windlass is available in multiple voltage versions (12V, 24V and 48V). Automatic free-fall is available as an option for 12V and 24V models. All model-specific technical differences are listed in the table below.

Features

  • Horizontal electric anchor windlass
  • Marine-grade anodised aluminium body
  • Independent gypsy and drum operation
  • Manual chain release
  • Manual override
  • IP67 motor cover
  • Available in 12V, 24V and 48V versions
  • Optional automatic free-fall (12V & 24V)

Technical specifications

Code 418407 600055 470060 220290 600059 418409 600797 600818
Description 1500W 12V 8mm 1500W 12V 10mm DIN 1500W 12V 10mm HT 1500W 24V 10mm HT 1500W 24V 10mm DIN 1500W 24V 8mm 1500W 24V 8mm Rope 1500W 24V 10mm Rope
Amps (A) 160 160 160 90 90 90 90 90
Circuit breaker - - - - - - 187333 187333
Gypsy 8 mm ISO/DIN 10 mm DIN 10 mm ISO 10 mm ISO 10 mm DIN 8 mm ISO/DIN 8 mm + rope 10 mm + rope
Line speed (W.L.) 14 m/min 14 m/min 14 m/min 16 m/min 16 m/min 16 m/min 16 m/min 16 m/min
Max line speed 33 m/min
Maximum pull 1350 kg 1350 kg 1350 kg 1400 kg 1400 kg 1400 kg 1590 kg 1590 kg
Motor power 1500 W
Net weight 28–30 kg
Voltage 12 V 12 V 12 V 24 V 24 V 24 V 24 V 24 V
Type With Drum
Working load 195 kg 195 kg 195 kg 195 kg 195 kg 195 kg 200 kg 200 kg
Rope kit No No No No No No Yes Yes

Documentation
