WDL H. ERC. W.ALU T.B G+D HYD/ 14mm
€14,326.40

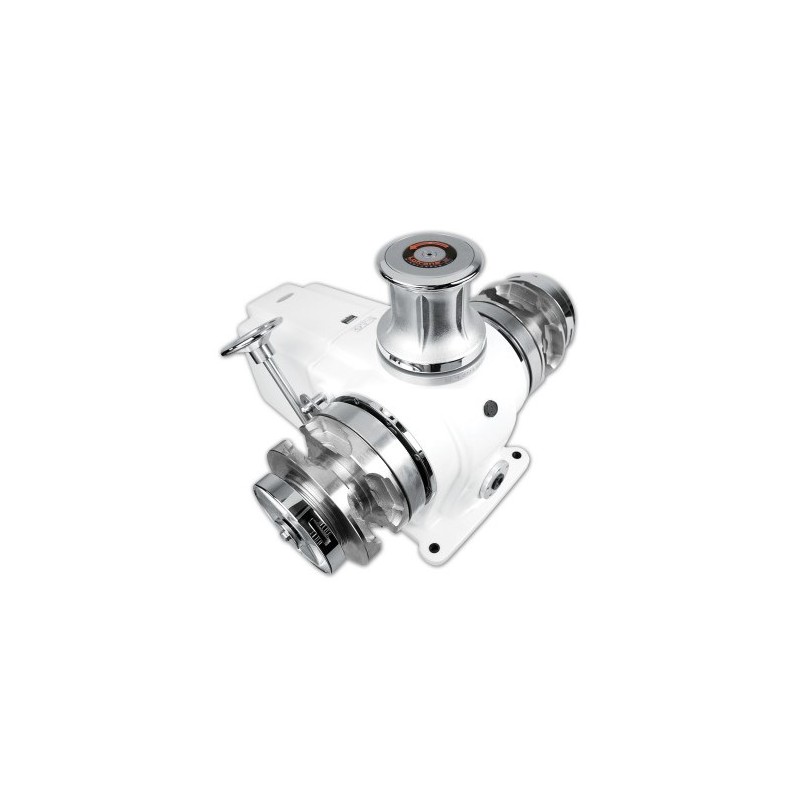

LOFRANS ERCOLE Hydraulic Horizontal Windlass is a compact and reliable hydraulic anchoring solution designed for professional and leisure vessels equipped with onboard hydraulic systems. This Type B version is manufactured in marine-grade white aluminium and is designed for use with a 14 mm anchor chain.
The LOFRANS ERCOLE Hydraulic Horizontal Windlass – Model 602512 is designed for efficient and controlled anchoring operations on vessels fitted with hydraulic systems. Its marine-grade white aluminium construction ensures excellent corrosion resistance, durability, and reliable performance in demanding marine environments.

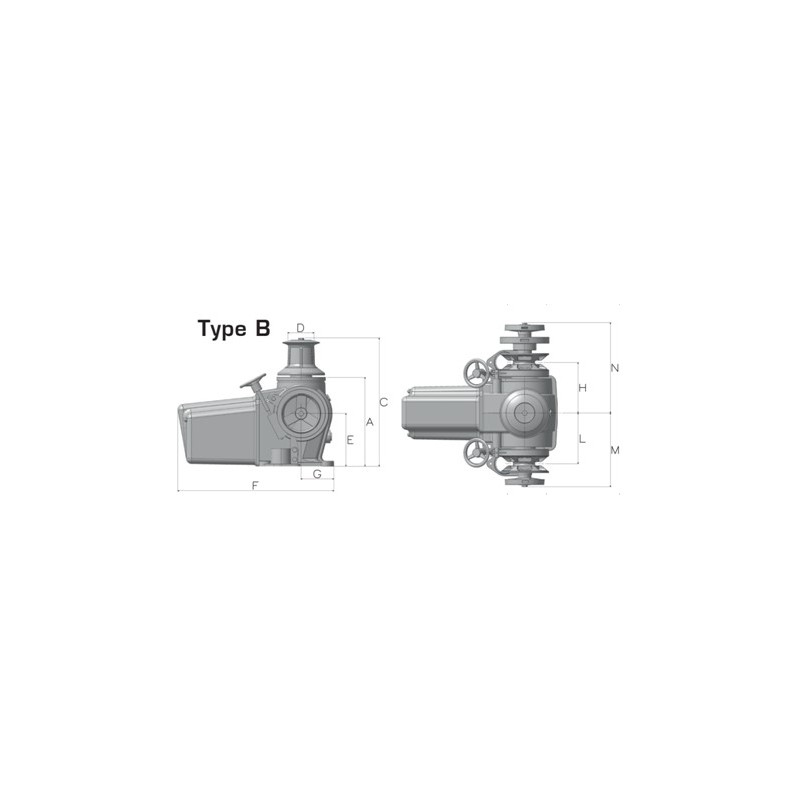

This configuration represents the Type B hydraulic version, suitable for operation with a 14 mm anchor chain. The windlass operates via the vessel’s hydraulic system and features independent gypsy and drum operation, manual chain release, and manual override, allowing safe and precise anchoring under load.
Main Features
- Marine-grade white aluminium construction
- Hydraulic drive for smooth and continuous operation
- Independent gypsy and drum operation
- Manual chain release
- Manual override
- Designed for vessels with onboard hydraulic systems
Technical Specifications
| Model | 602512 |
| Windlass Type | Horizontal |
| Version | Type B – Hydraulic |
| Chain Size | 14 mm |
| Drive Type | Hydraulic |
| Required Hydraulic Flow | 40 l/min |
| Working Pressure | 200 bar |
| Maximum Pull | 5000 kg |
| Line Speed | 14 m/min |
| Operation | Gypsy & Drum |
| Net Weight | 180 kg |
| Other versions available on request | |
