X1 - Vertical Windlass, Chrome Plated, 12V, 500-800W, With Drum X1 & SX1 Vertical windlasses 500–800 W

X1 - Vertical Windlass, Chrome Plated, 12V, 500-800W, With Drum

SKU 472881 Category X1 & SX1 Vertical windlasses 500–800 W
€876.35

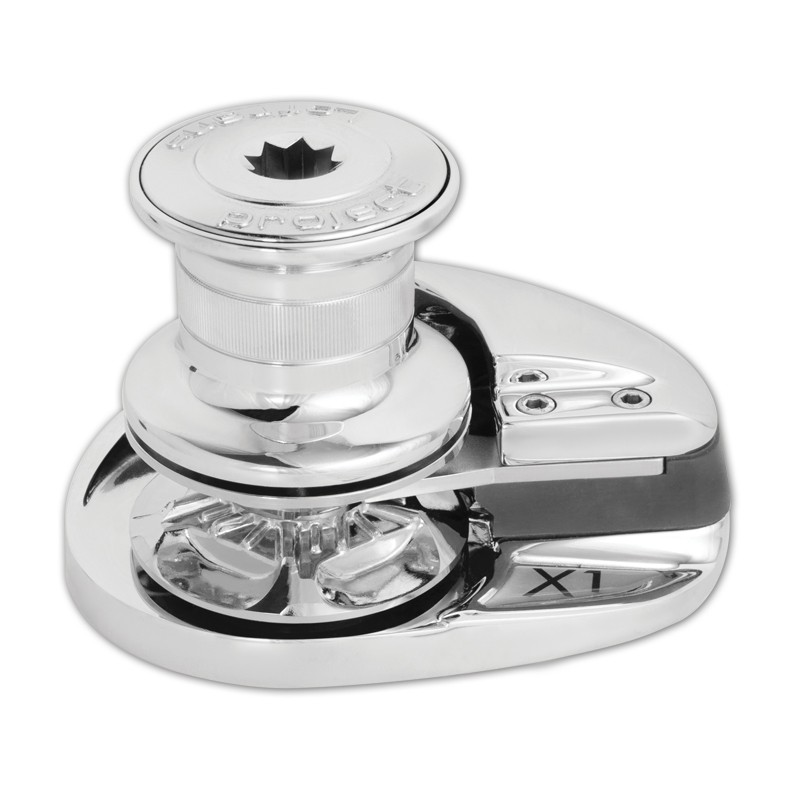

The Lofrans X1 vertical windlass is designed for safe and efficient anchoring on sailing and motor boats from 6 to 27 meters in length. This configuration includes drum versions powered by strong 800 W motors, suitable for different chain and rope sizes. Chrome-plated bronze construction, precise mechanics and stable line speed ensure reliable performance, high pulling force and long service life in demanding marine environments.

Motor size
Voltage
Gypsy
Add to Cart

Lofrans X1 vertical windlass is a reliable solution for safe and efficient anchor handling on sailing and motor boats. The vertical configuration allows a clean below-deck installation while optimising available space.

This universal configuration includes drum versions designed for combined chain and rope operation. Precision engineering, reliable power transmission and powerful electric motors ensure stable line speed and strong pulling performance during anchoring operations.

Technical specifications

Product code 472881 473003 473207
Model X1 CRO G+D 500W / 12V X1 CRO G+D 800W / 12V X1 CRO G+D 800W / 12V
Construction Chrome-plated bronze Chrome-plated bronze Chrome-plated bronze
Chain 6 mm ISO 4565 / DIN 766 8 mm ISO 4565 / DIN 766 6 mm ISO 4565 / DIN 766
Rope 10–12 mm, 3-strand 12 mm, 3-strand 10–12 mm, 3-strand
Line speed at working load 23 m/min 25 m/min 25 m/min
Maximum speed 26 m/min 28 m/min 28 m/min
Maximum pull 630 kg 700 kg 700 kg
Motor power 500 W 800 W 800 W
Voltage 12 V 12 V 12 V
Type With drum With drum With drum
Weight 12 kg 14 kg 14 kg
Working load 95 kg 100 kg 100 kg

User manual:
Download user manual
