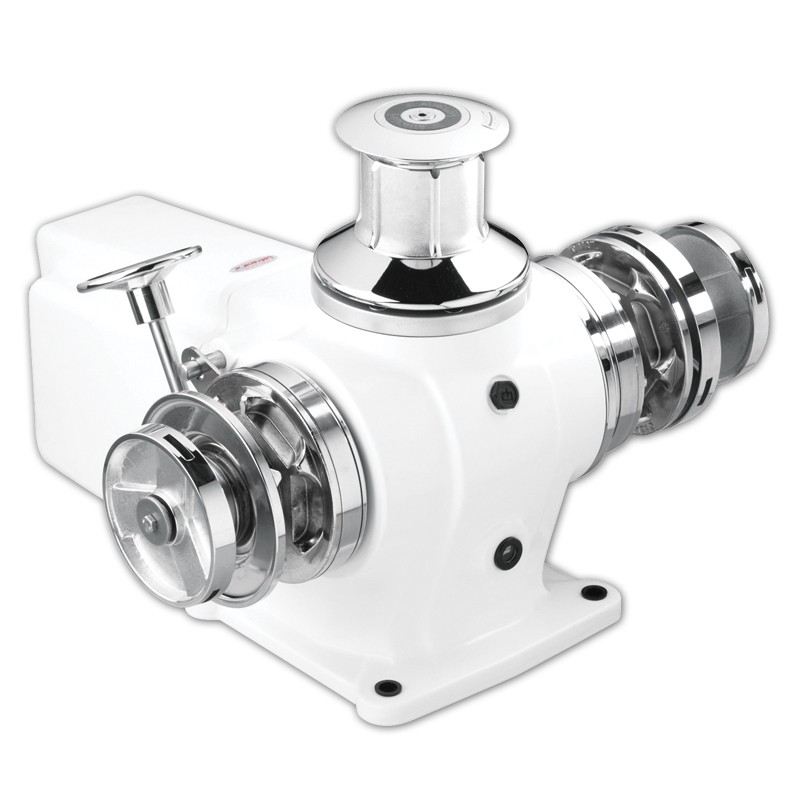

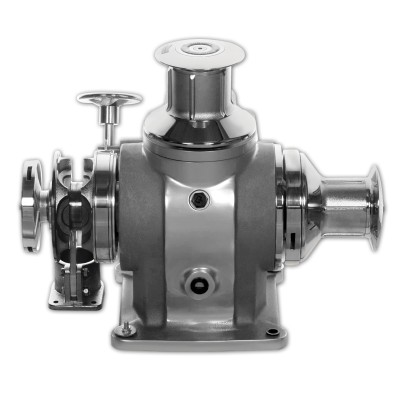

TITAN - Horizontal Windlass, Alu TA 24v 2,3kW 12/13mm
€5,983.95
LOFRANS TITAN – Horizontal Windlass is a heavy-duty electric anchor windlass designed for professional and large leisure vessels. Built with a marine aluminium anodised body, it delivers high pulling power, reliability, and long-term corrosion resistance. Available in Type A and Type B versions for different chain sizes.
Model
Motor size
Voltage
Gypsy
The LOFRANS TITAN Horizontal Windlass is engineered for demanding anchoring operations on professional and large leisure vessels. Manufactured with a marine aluminium anodised body, it ensures excellent corrosion resistance and durability in harsh marine environments. The windlass supports Gypsy & Drum operation, manual chain release, and manual override for safe and flexible use.
Main Features
- Marine aluminium anodised body
- Available with white polyester coating
- Independent gypsy and drum operation
- Manual chain release
- Manual override
- IP67 motor cover
Technical Specifications
| Type / Code | 404724 | 60072 | 428938 | 426415 |
|---|---|---|---|---|
| Type | A | A | B | B |
| Chain Size | 12 mm | 14 mm | 12 mm | 14 mm |
| Gypsy Standard | DIN766 | DIN766 | DIN766 | DIN766 |
| Voltage | 24V DC | 24V DC | 24V DC | 24V DC |
| Motor Power | 2300 W | 2300 W | 2300 W | 2300 W |
| Maximum Pull | 2800 kg | 2800 kg | 2800 kg | 2800 kg |
| Line Speed (W.L. / Max) | 10 / 18 m/min | 10 / 18 m/min | 10 / 18 m/min | 10 / 18 m/min |
| Operation | Gypsy & Drum | Gypsy & Drum | Gypsy & Drum | Gypsy & Drum |
| Net Weight | 115 kg | 115 kg | 115 kg | 115 kg |
| Other versions available on request | ||||
