KOBRA - Horizontal WindlasS, Alu 12V 1kW 8mm Horizontal Windlasses

KOBRA - Horizontal WindlasS, Alu 12V 1kW 8mm

SKU 220260 Category Horizontal Windlasses
€1,389.90

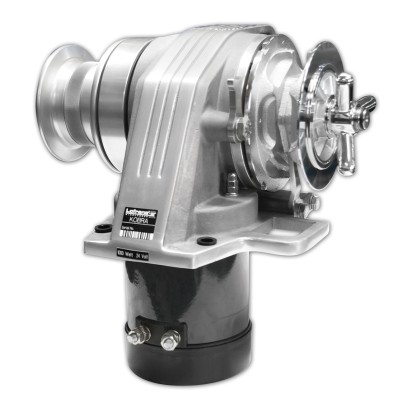

The Lofrans Kobra is a horizontal electric anchor windlass with a marine-grade anodised aluminium body, designed for reliable anchoring in demanding marine conditions. It features independent gypsy and drum operation, manual chain release and manual override, a heavy-duty IP56 electric motor, and optional automatic free-fall. Model-specific specifications are shown in the table.

Motor size
Voltage
Gypsy
Add to Cart

The Lofrans Kobra is a horizontal electric anchor windlass designed for safe and reliable anchoring on sailing yachts and motor boats. Its marine-grade anodised aluminium body offers excellent corrosion resistance and durability in harsh marine environments, while the robust design ensures stable and controlled anchor handling.

A key advantage of the Kobra range is the independent operation of the gypsy and the drum, providing flexibility for different anchoring and rope/chain configurations. Manual chain release and manual override enhance operational control and safety, while the heavy-duty IP56-rated electric motor supports consistent performance. Optional automatic free-fall is available as an option.

Features

  • Horizontal electric anchor windlass
  • Marine-grade anodised aluminium body
  • Independent gypsy and drum operation
  • Manual chain release
  • Manual override
  • Heavy-duty IP56 electric motor
  • Optional automatic free-fall
  • Control box included

Technical specifications

Code 220260 428747 600052 600514 220420 471734
Description WINDLASS H. KOBRA ALU G+D 1000W/12V 8-5/16" BBB WINDLASS H. KOBRA ALU G+D 1000W/12V 10 3/8 HT WINDLASS H. KOBRA ALU G+D 1000W/12V 10 DIN766 WINDLASS H. KOBRA ALU G+D 1000W/24V 8-5/16" BBB WINDLASS H. KOBRA ALU G+D 1000W/24V 10 3/8 HT WINDLASS H. KOBRA ALU G+D 1000W/24V 10 DIN766
Amps (A) 150 150 150 80 80 80
Circuit breaker - 187333 187333 - 187332 187332
Gypsy for chain 8 mm
ISO 4565 / DIN 766		 10 mm
ISO 4565		 10 mm
DIN 766		 8 mm
ISO 4565 / DIN 766		 10 mm
ISO 4565		 10 mm
DIN 766
Line speed at W.L. 16 m/min 16 m/min 16 m/min 17 m/min 17 m/min 17 m/min
Max line speed 32 m/min 32 m/min 32 m/min 33 m/min 33 m/min 33 m/min
Maximum pull 1250 kg 1250 kg 1250 kg 1325 kg 1325 kg 1325 kg
Motor power 1000 W
Net weight 21 kg
Voltage 12 V 12 V 12 V 24 V 24 V 24 V
Type With Drum
Working load 170 kg

Documentation
