WDL H. ERC. W.ALU T.A G+D 3500W/24V 14mm

SKU 403615 Category Horizontal Windlasses
€16,036.05

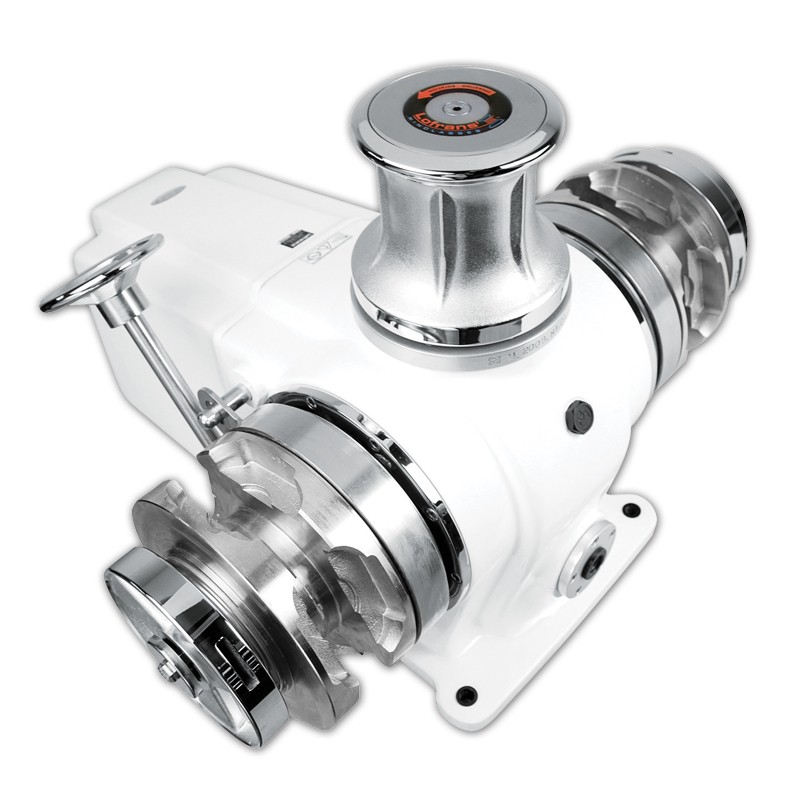

LOFRANS ERCOLE Horizontal Windlass is a robust anchoring solution designed for professional and leisure vessels requiring reliable performance and compact construction. Manufactured with a marine-grade white aluminium body, the Ercole series offers durability, corrosion resistance, and safe operation in demanding marine environments.

Model
Motor size
Voltage
Gypsy
Add to Cart

The LOFRANS ERCOLE Horizontal Windlass is designed to provide reliable anchoring performance for a wide range of professional and leisure vessels. Its marine-grade white aluminium construction ensures excellent corrosion resistance and long service life, even in harsh marine conditions.

The windlass supports independent gypsy and drum operation, manual chain release, and manual override, allowing safe and controlled anchoring operations. The ERCOLE series is suitable for vessels requiring a compact yet powerful horizontal windlass solution.

Main Features

  • White aluminium construction for marine use
  • Independent gypsy and drum operation
  • Manual chain release
  • Manual override
  • IP67 motor protection

Technical Specifications

Code 403615 220317

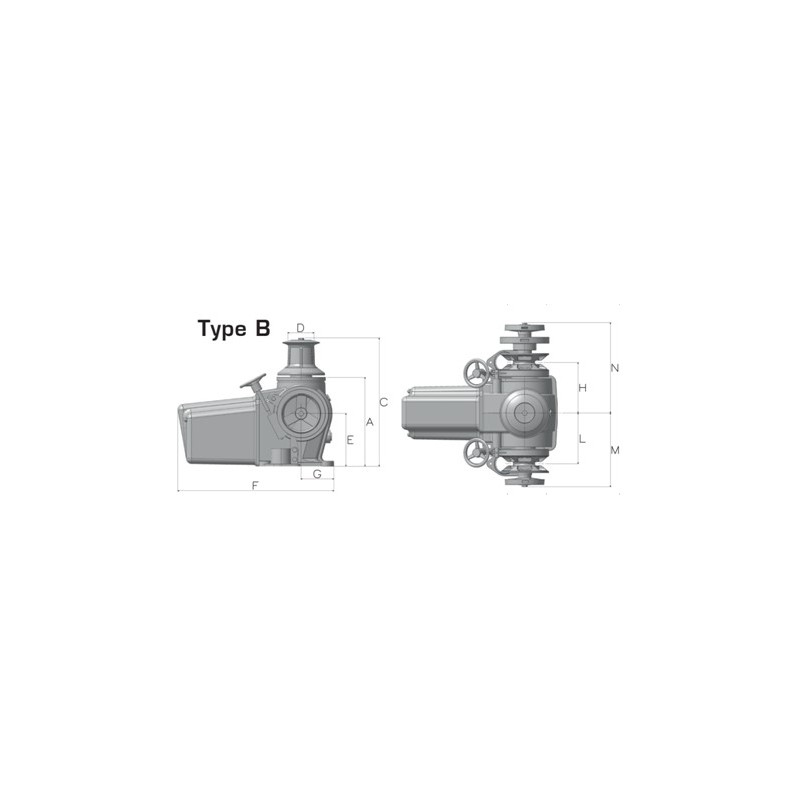

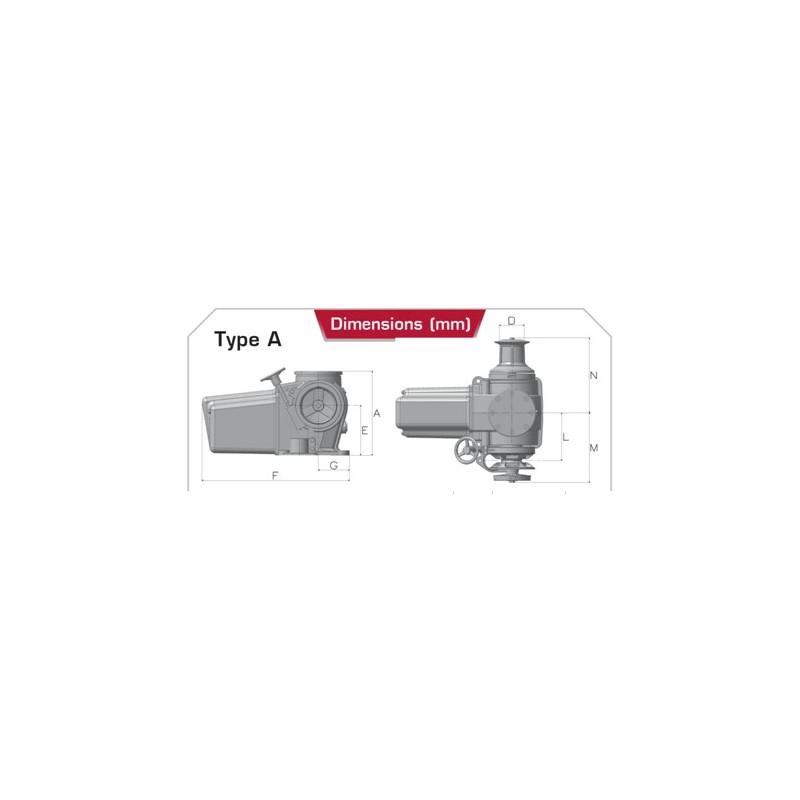

Version Type A Type B
Chain Size 14 mm 14 mm
Power Supply 24V DC 24V DC
Motor Power 3500 W 3500 W
Maximum Pull 4500 kg 4500 kg
Line Speed (W.L. / Max) 12 / 20 m/min 12 / 20 m/min
Operation Gypsy & Drum
Net Weight 200 kg 200 kg
Other versions available on request
