WDL H. ROYAL ALU G+D MANUAL/ 6mm
€664.05

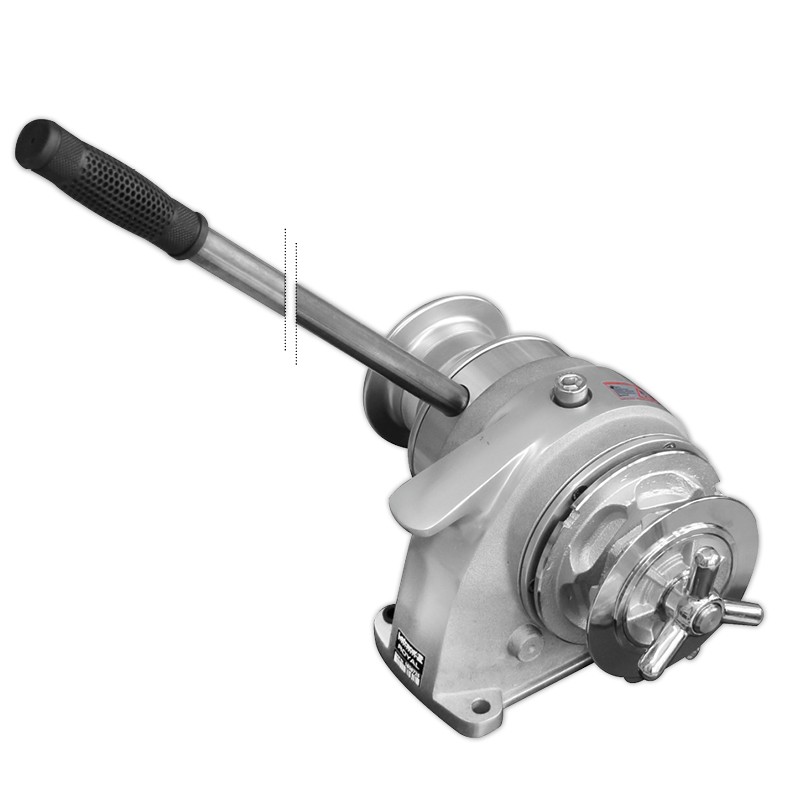

The Lofrans Royal is a compact manual horizontal anchor windlass with an anodised aluminium body, designed for simple and reliable anchoring on small boats. It features independent gypsy and drum operation, manual chain release and manual override. Model-specific details are listed in the table.
Activation
Gypsy
The Lofrans Royal is a manual horizontal anchor windlass designed for simple and reliable anchoring on small sailing yachts and motor boats. Its anodised aluminium construction provides good corrosion resistance and durability in marine environments, while the compact design allows installation in limited spaces.
The windlass features independent gypsy and drum operation, manual chain release and manual override for full control during anchoring. The unit is supplied fully assembled and ready for installation. All technical differences between models are shown in the table below.
Features
- Manual horizontal anchor windlass
- Anodised aluminium body
- Independent gypsy and drum operation
- Manual chain release
- Manual override
- Compact and lightweight design
Technical specifications
| Code | 187323 | 404725 |
|---|---|---|
| Description | Manual 6 mm | Manual 8 mm |
| Gypsy for chain | 6 mm ISO 4565 / DIN 766 | 8 mm ISO 4565 / DIN 766 |
| Maximum pull | 400 kg | |
| Drive | Manual | |
| Net weight | 10 kg | |
| Type | With Drum | |
| Working load | 70 kg | |
