DORADO - Horizontal Windlass, Alu Port 12v 500W, 6 mm, ISO 4565 Horizontal Windlasses

DORADO - Horizontal Windlass, Alu Port 12v 500W, 6 mm, ISO 4565

SKU 409568 Category Horizontal Windlasses
€767.75

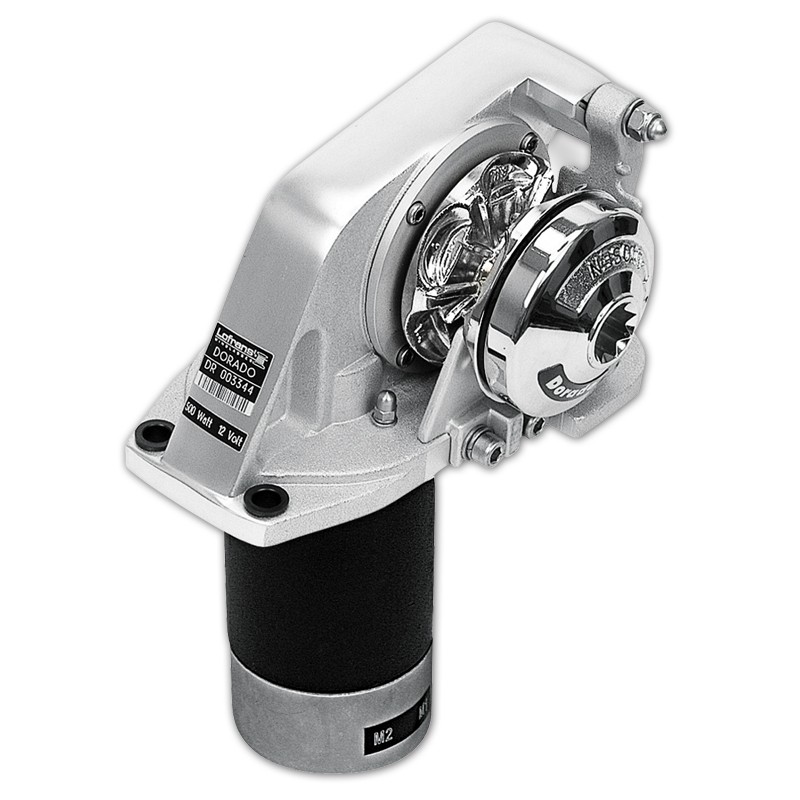

The Lofrans Dorado is a horizontal electric anchor windlass manufactured from marine-grade anodised aluminium. Designed for sailing yachts and motor boats, it provides safe and reliable anchoring with multiple versions available to suit different vessel requirements.

Motor size
Voltage
Gypsy
Add to Cart

The Lofrans Dorado is a horizontal electric anchor windlass designed for safe and reliable anchoring on sailing yachts and motor boats. Manufactured from marine-grade anodised aluminium, it offers excellent resistance to harsh marine environments while maintaining a compact and elegant design.

Thanks to its low-profile construction, the Dorado windlass allows easy installation even in limited bow spaces. The range includes multiple technical versions, enabling precise selection according to chain size, load requirements and vessel configuration, while maintaining consistent performance and control during anchoring operations.

Features

  • Horizontal electric anchor windlass
  • Marine-grade anodised aluminium body
  • Low-profile design for easy installation
  • Manual chain release
  • Spring-loaded arm for correct chain management
  • Heavy-duty electric motor for reliable operation
  • Optional automatic free-fall
  • Control box included

Technical specifications

Product code 409568 409569 600048
Description DORADO ALU R. 500W DORADO ALU R. 800W HT DORADO ALU R. 800W
Voltage 12 V
Chain size 6 mm 8 mm 6 mm
Chain standard ISO 4565 ISO 4565 / DIN 766 ISO 4565
Line speed at W.L. 18 m/min 20 m/min 20 m/min
Maximum line speed 24 m/min 25 m/min 25 m/min
Maximum pull 600 kg 650 kg 650 kg
Weight 10 kg 11 kg 11 kg
Material Anodised aluminium
